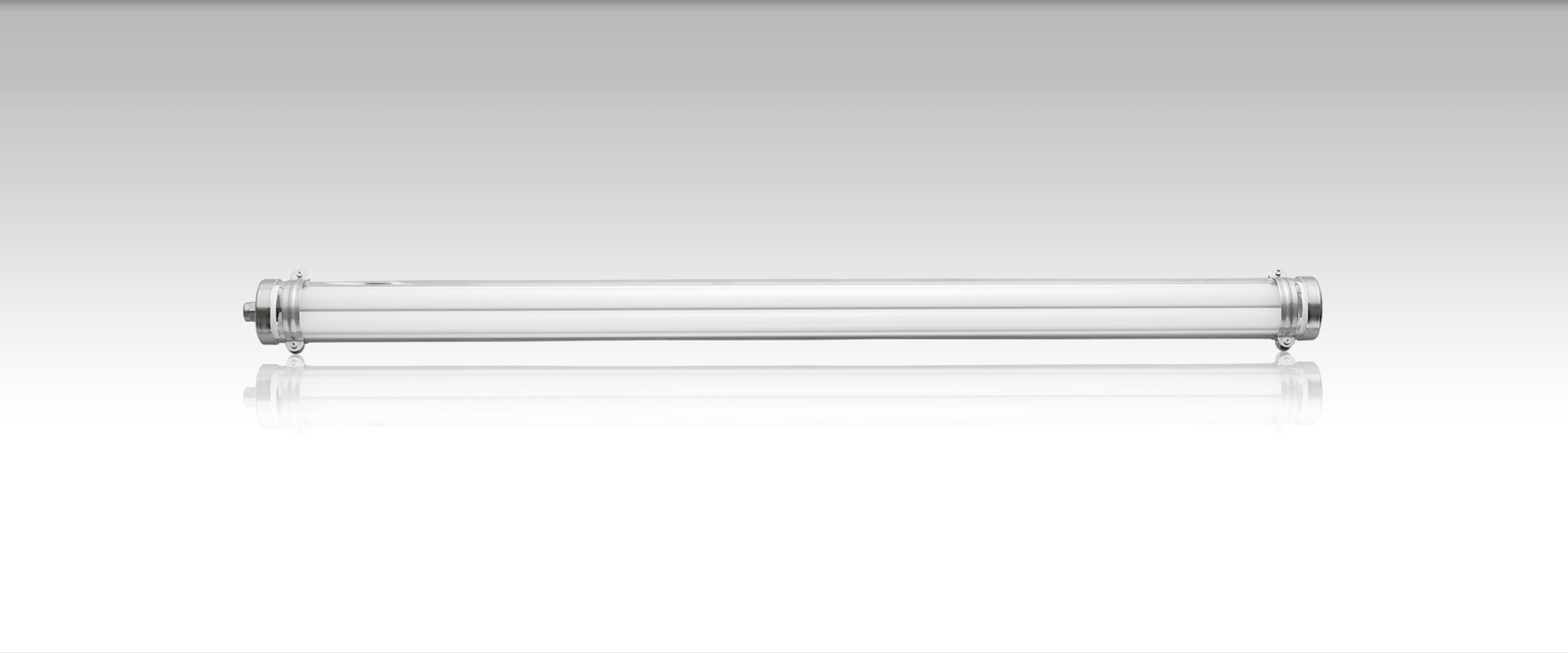

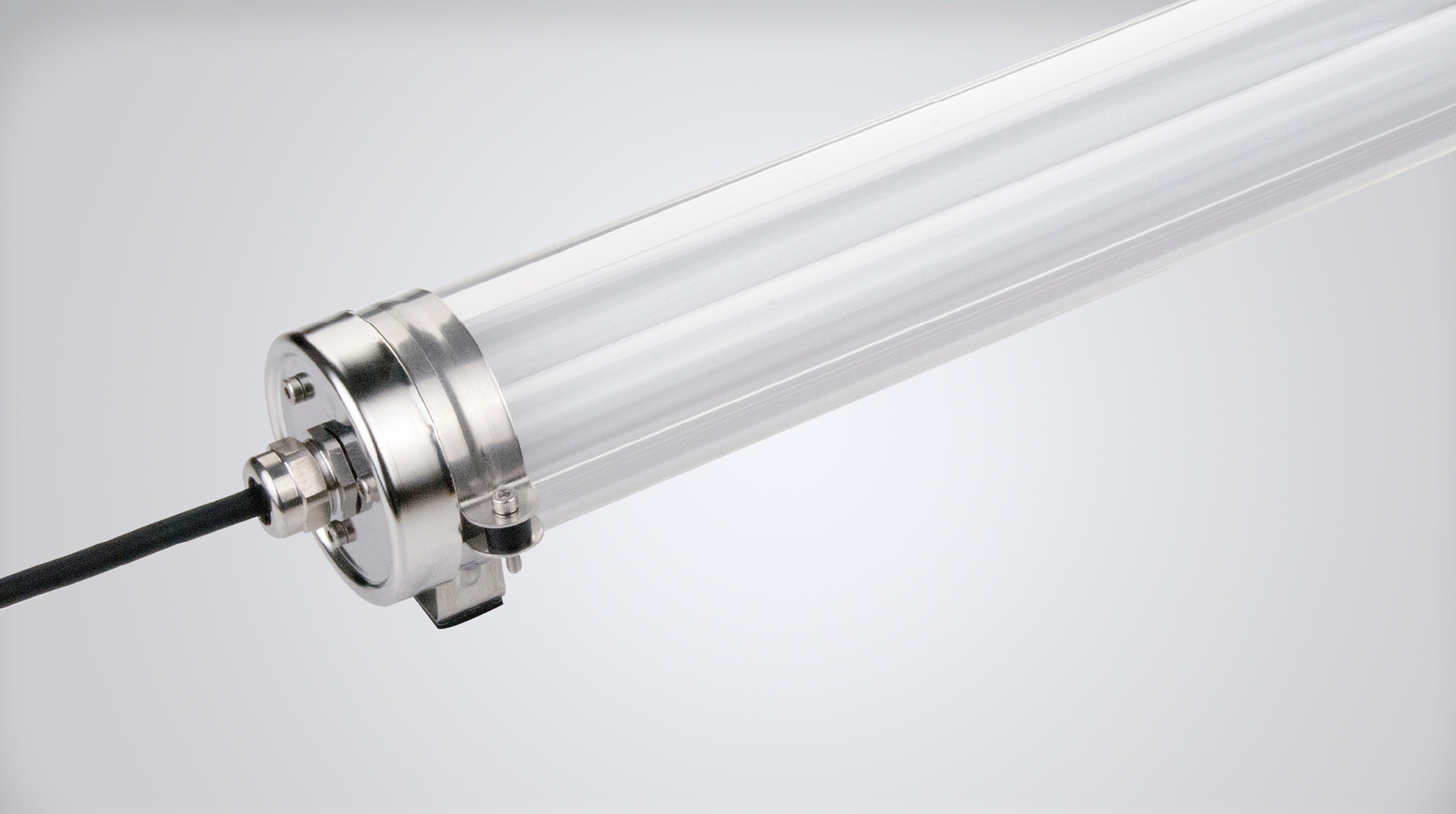

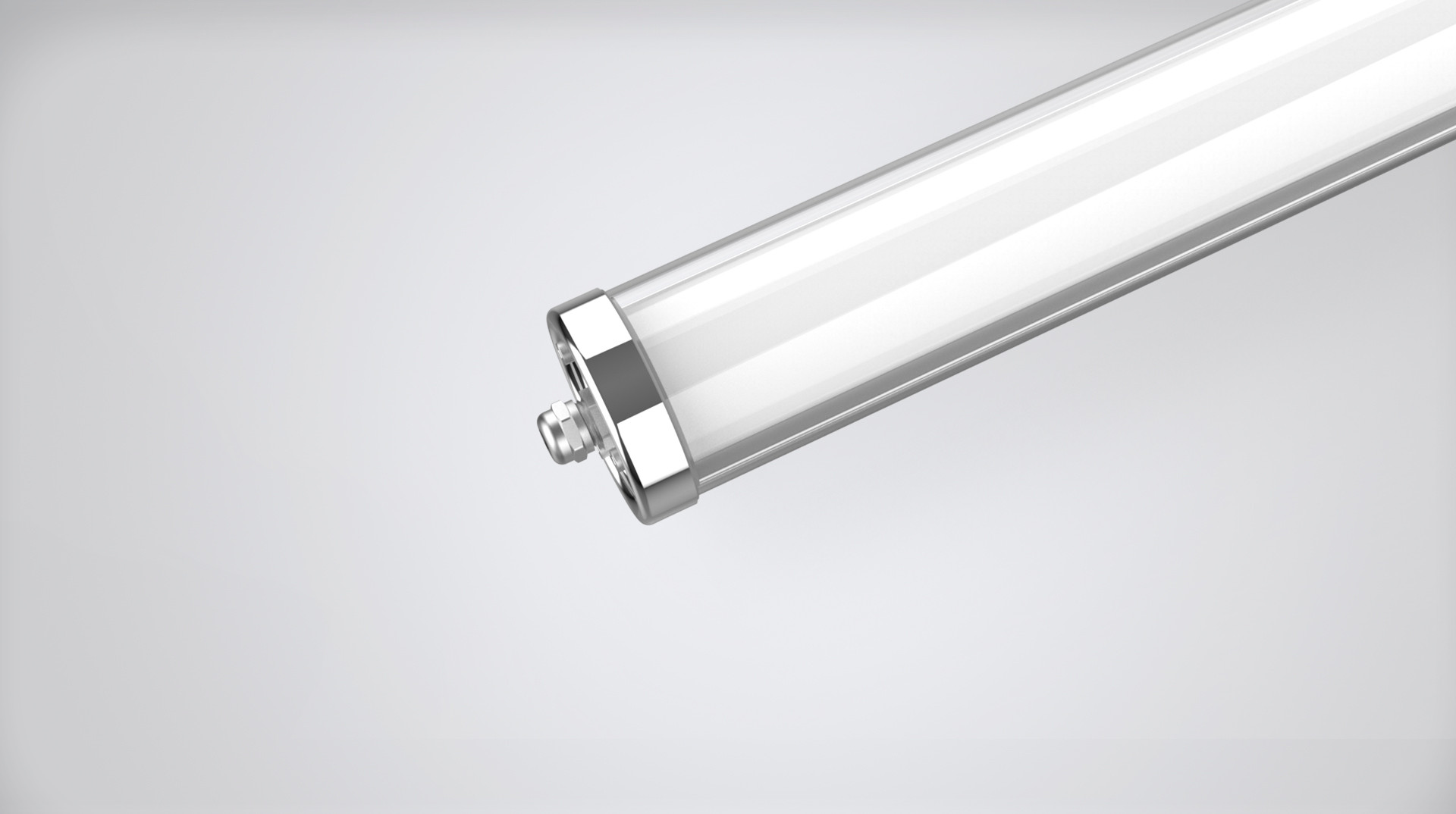

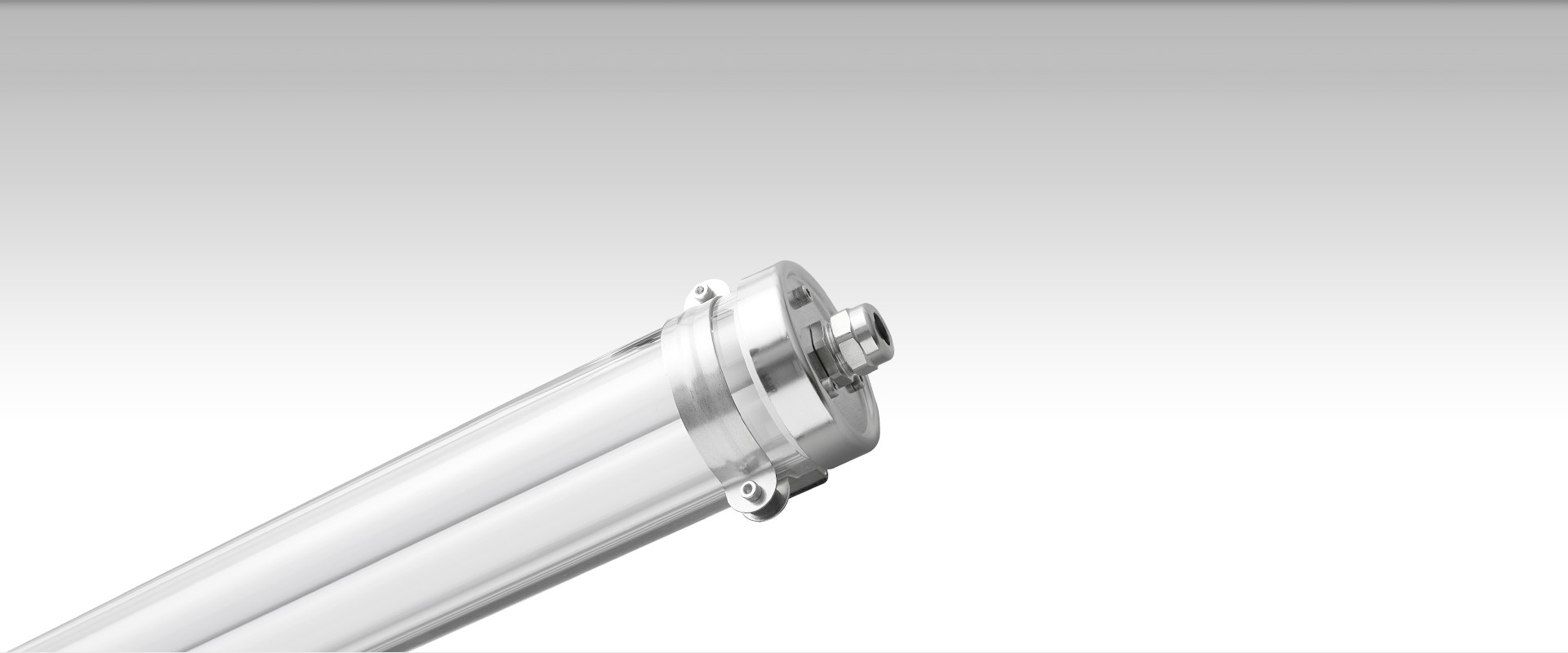

T60 Tempered Glass

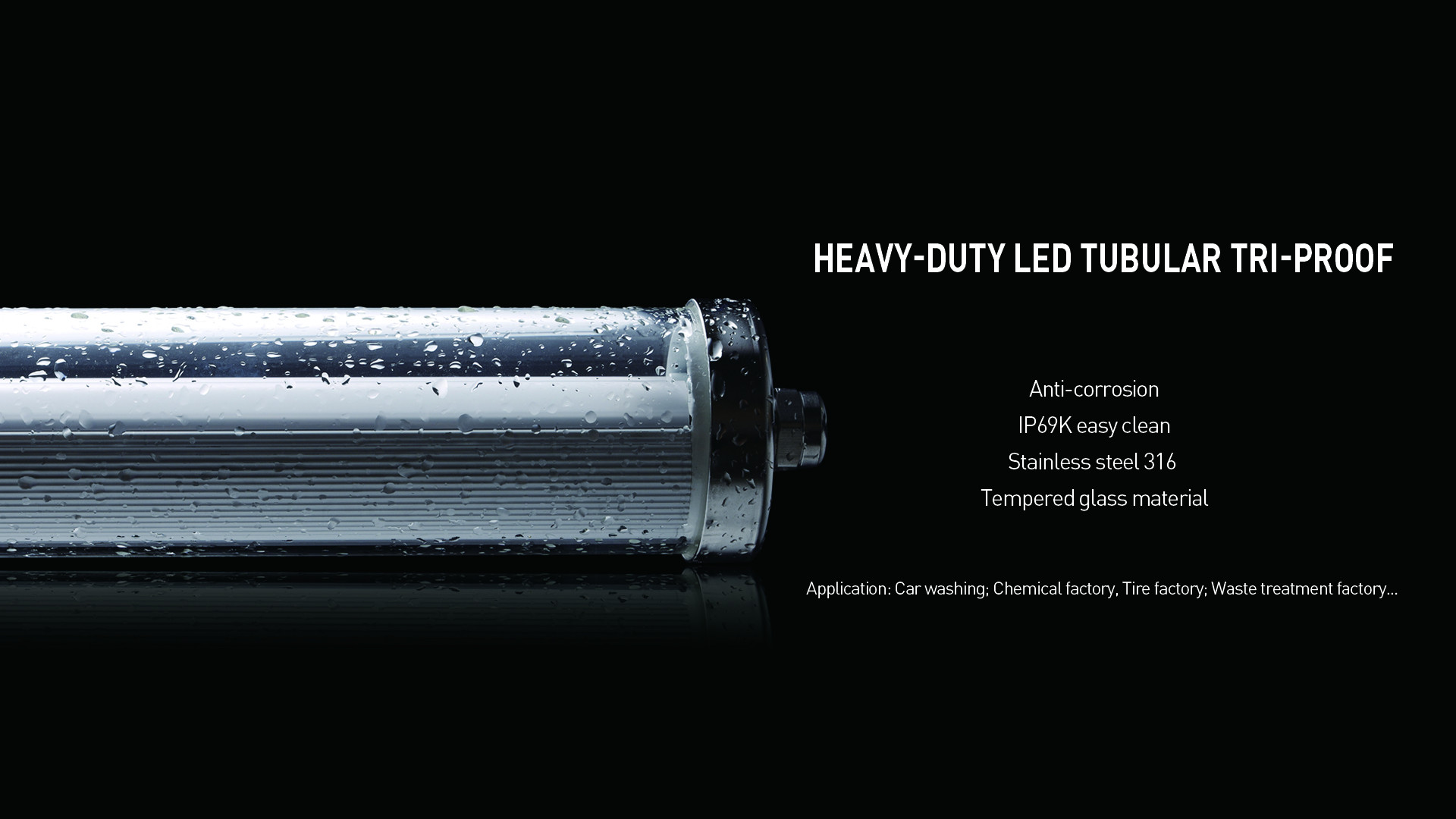

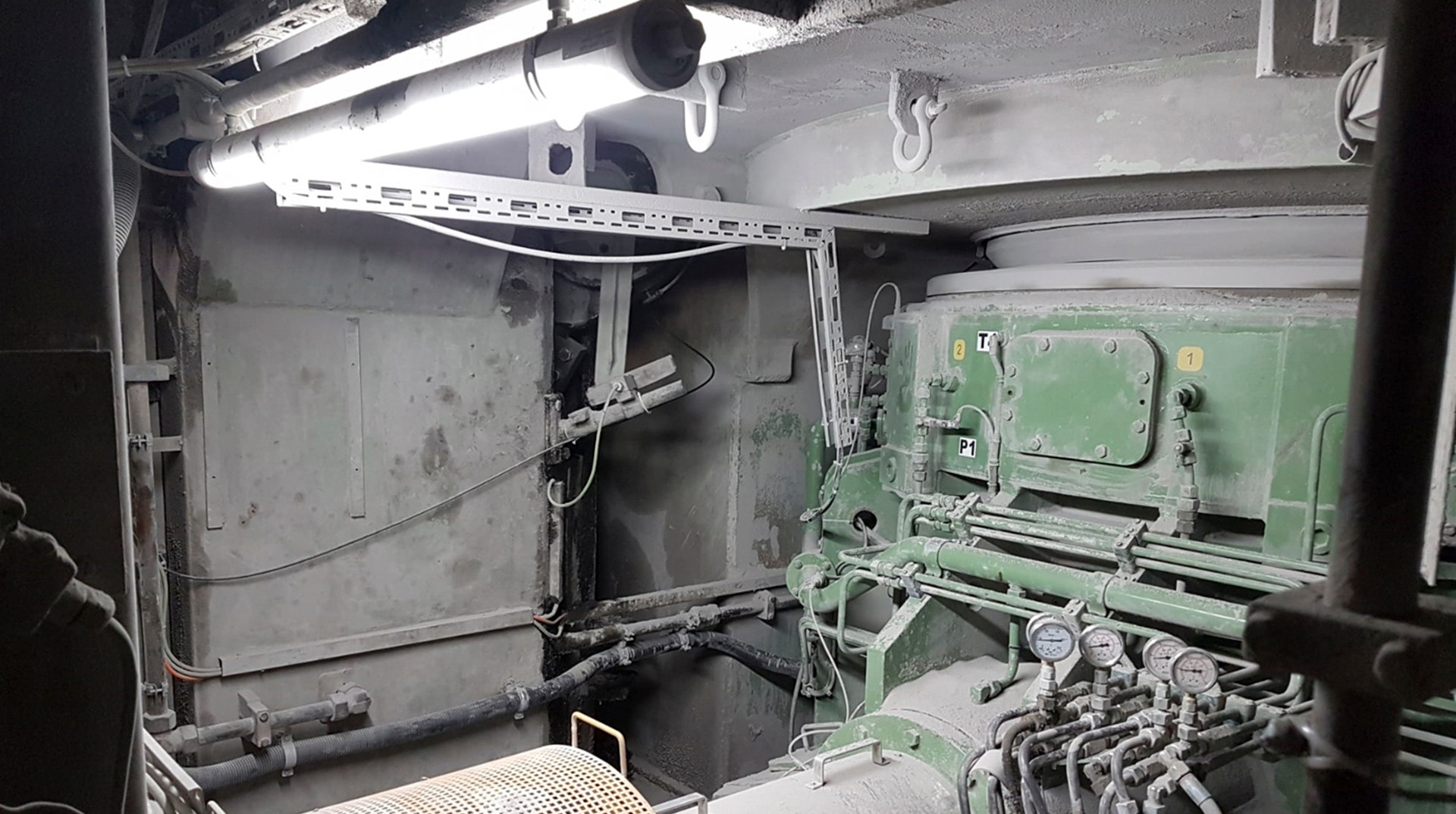

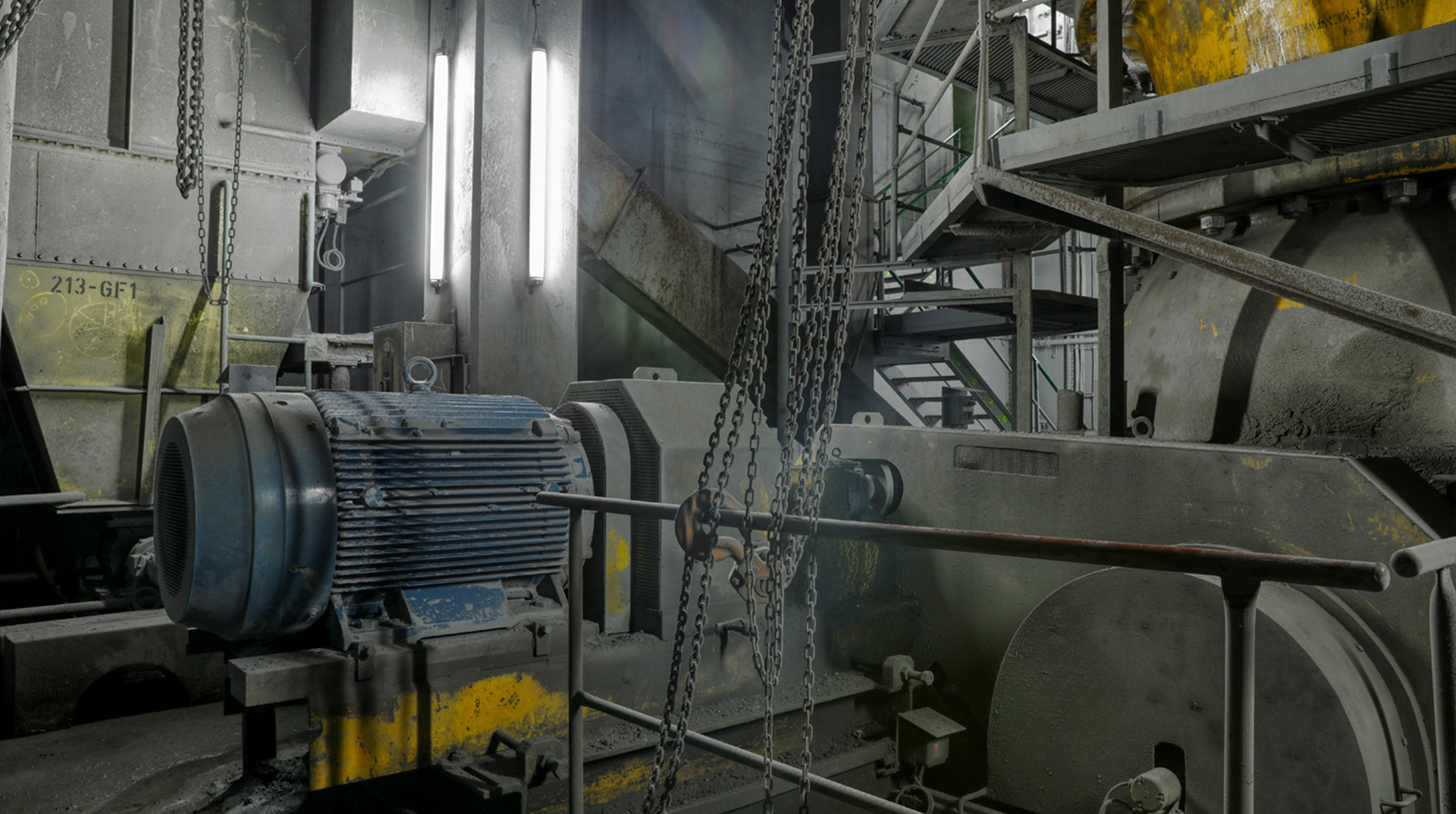

ERVAN T60 seamless tempered glass outer shell designed provides IK06/IP69K ingress protection and therefore an ideal lighting solution for a wide variety of harsh applications such as harsh but non-hazardous industrial locations. Specialized for superior chemical resistance. Additional tempered glass outer shell is anti UV for special applications. Highly versatile, low profifile and rugged designed unit with impressive 160 lumens per watt, while remain-ing eco-friendly and energy effificient, without compromising on the unit quality or its performance.
Size | Wattage | Lumen | Efficiency | CRI | CCT | SDCM | Waterproof | IK Rate |
---|---|---|---|---|---|---|---|---|
600mm | 20W | 3200LM | 160lm/w | 80 | 4000K | 3 | IP69K | IK06 |
1200mm | 36W | 5760LM | 160lm/w | 80 | 4000K | 3 | IP69K | IK06 |
1500mm | 48W | 7680LM | 160lm/w | 80 | 4000K | 3 | IP69K | IK06 |
Input: AC220~240V 50/60Hz
Wiring: 3 wires through optional
Operation Temp: -20~40°C
Function: 1~10V DIM | Dimmable | Motion Sensor | Emergency
Flicker: Flicker free
Material: Glass+Stainless Steel 316

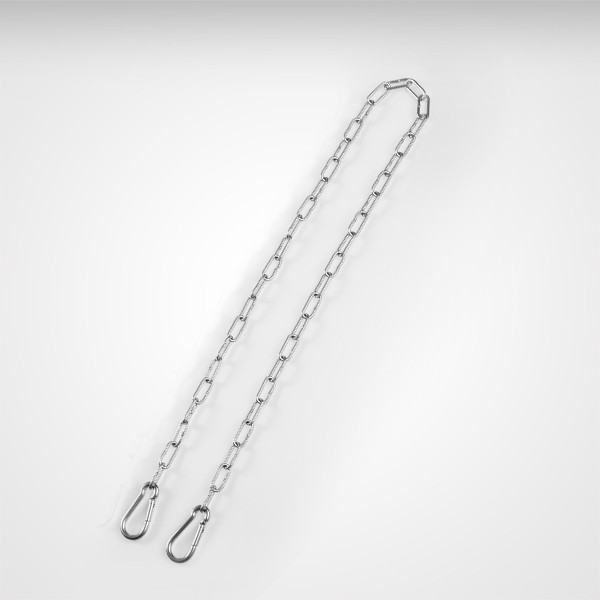

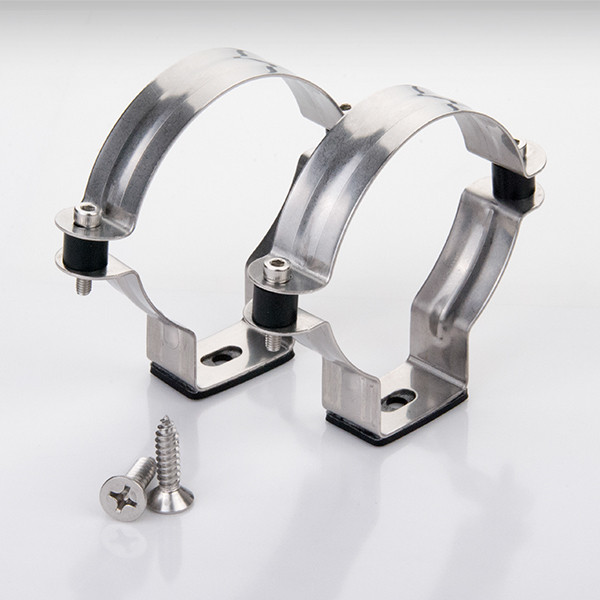

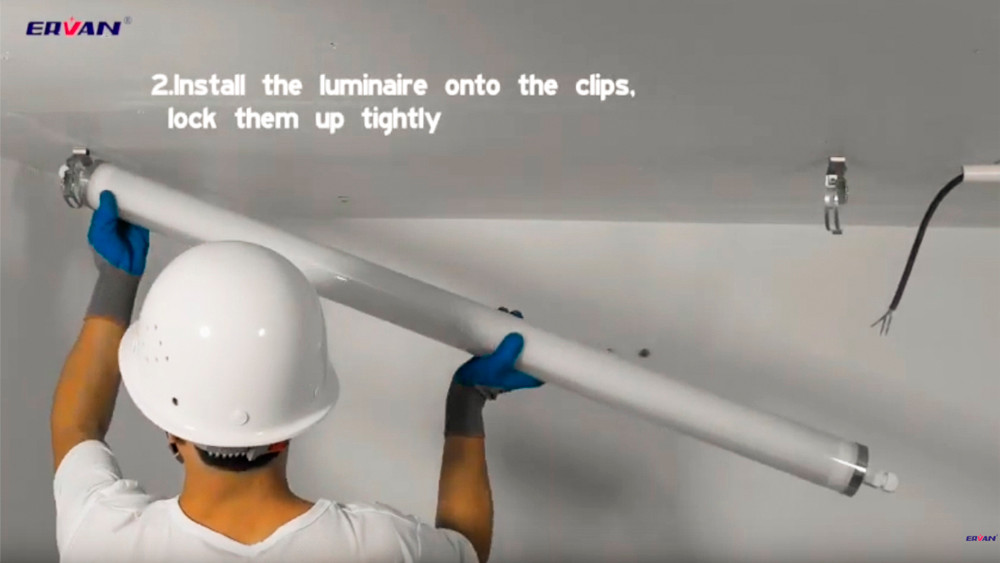

Installation: Ceiling mounted | Suspension | Wall Mounted
Protection: IP69K | IK06
Terminal: 3x1.5mm² | M20 Connector
