General Tubular Lighting

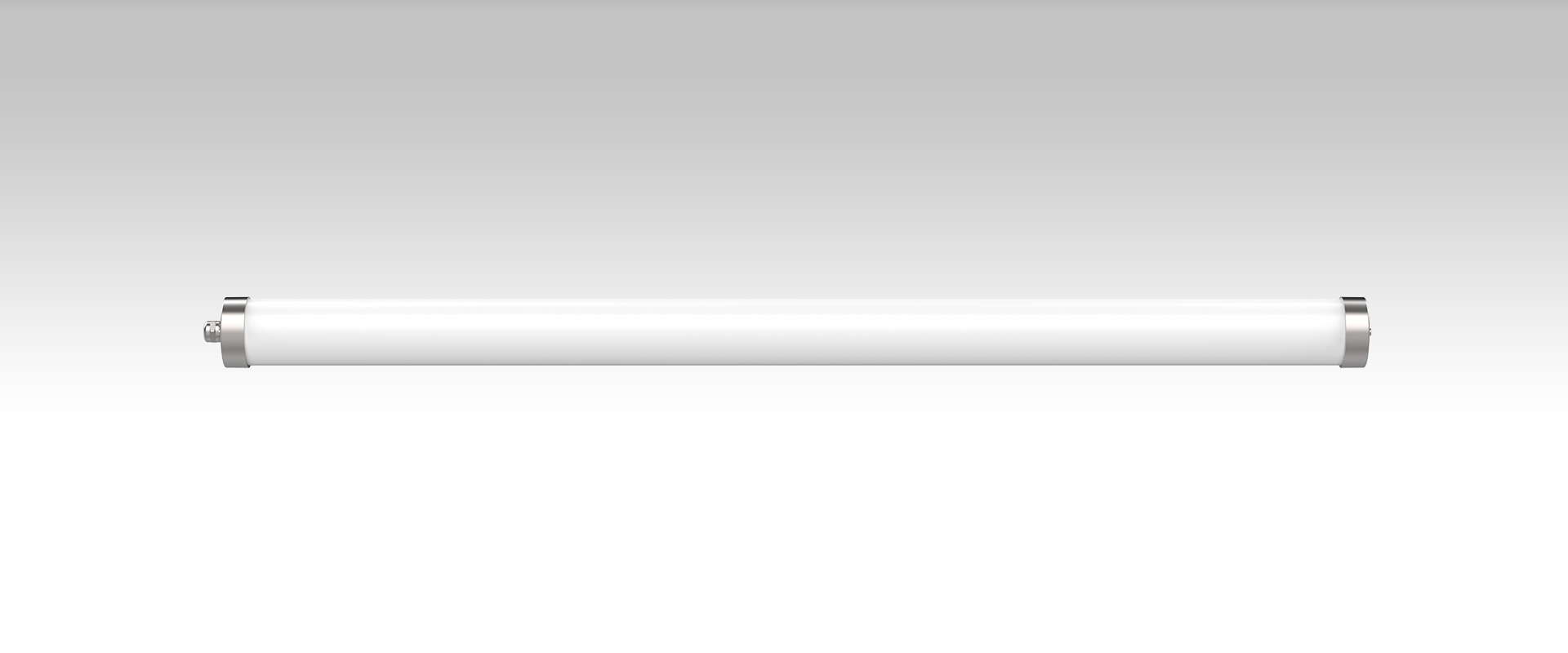

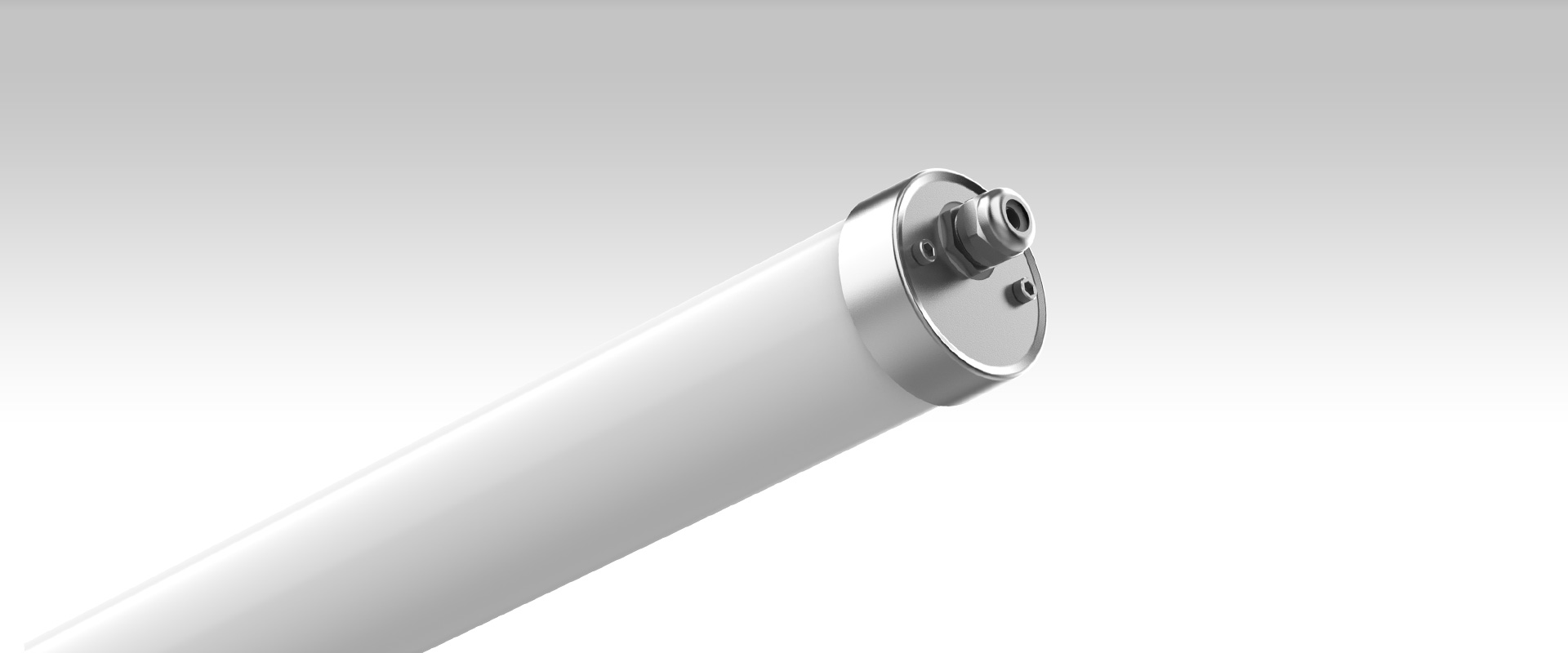

Ti60FP-PC

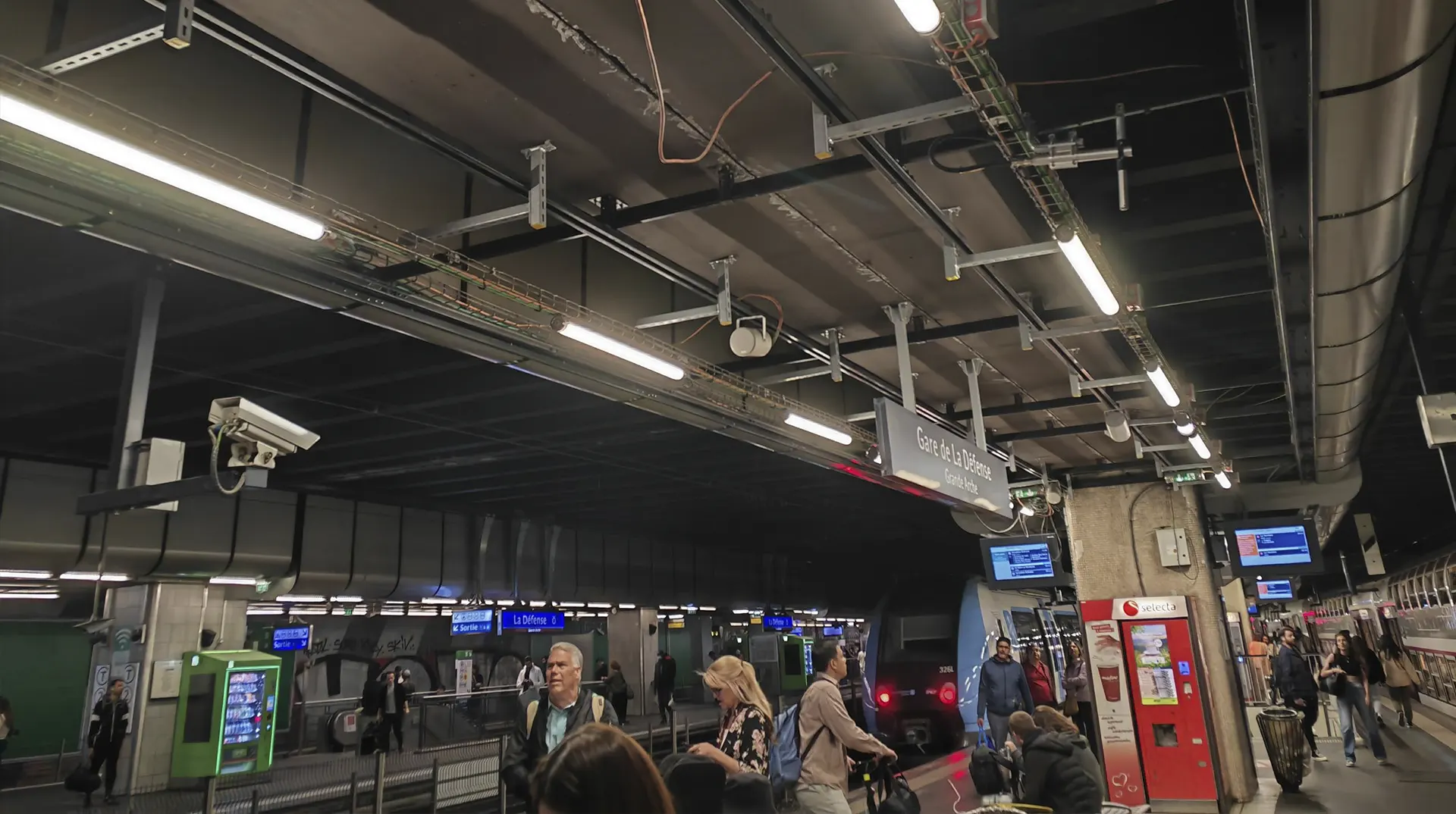

With classic tubular design, ERVAN tubular lighting Ti60FP is with high protection level of IP65 and IK10 outstanding reliability which could meet most of the industrial and commercial application. Easy installation always comes to the priority for saving labor cost, modular design and easy maintenance offers sustainable solution. In a word, Ti60FP providing durable and cost-effective tubular solutions.






SizeWattageLumenEfficiencyCRICCTSDCMWaterproofIK Rate
1200mm20/25/30/36W 3200/4000/4800/5760LM160lm/w804000K3IP65IK10
1500mm28/36/42/48W4480/5760/6720/7680LM160lm/w804000K3IP65IK10

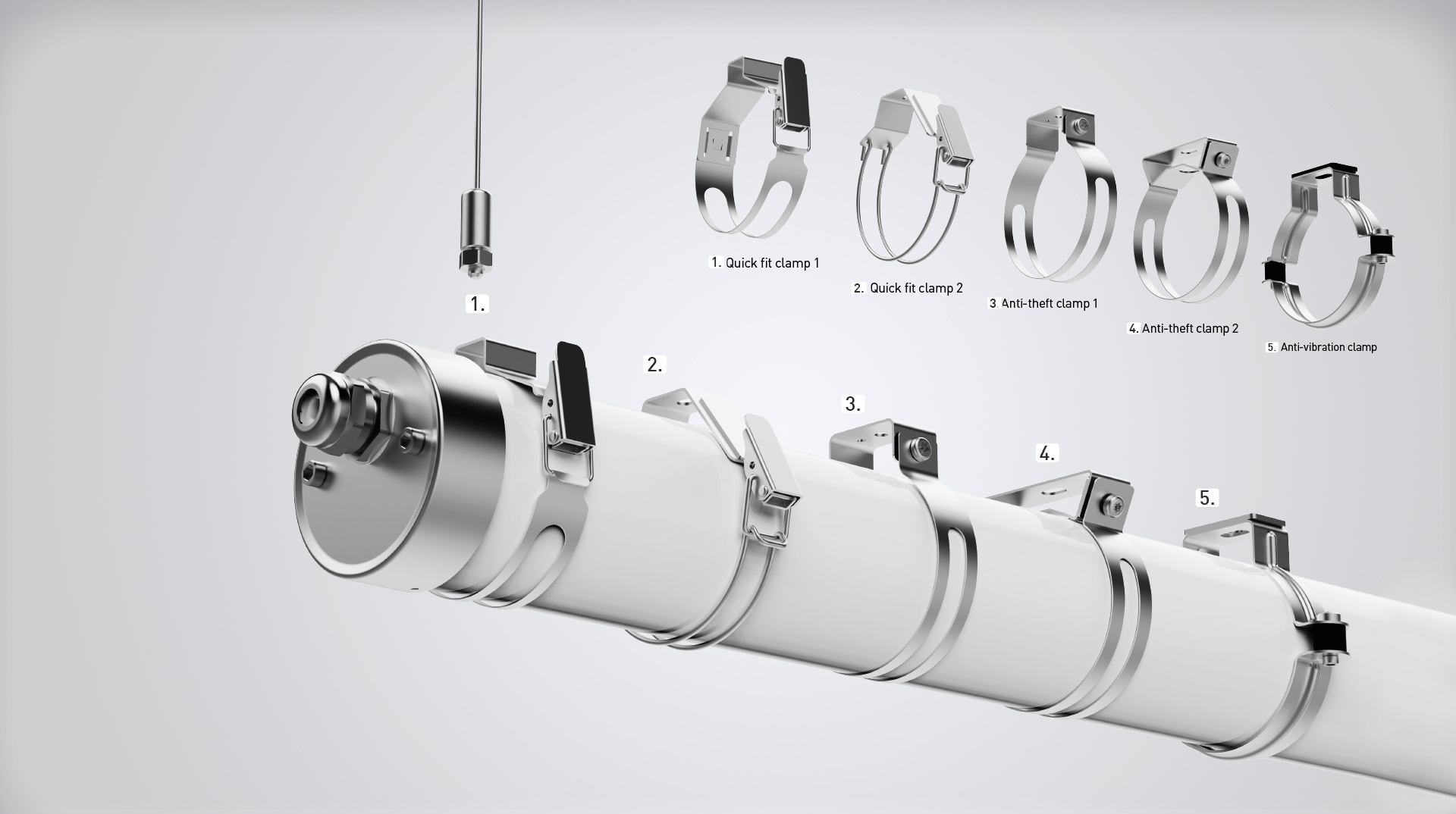

Name

Description

Quick fit bracket, SS304

Quick fit bracket, SS304

Stainless steel material; Used for the absorption of suspending and Ceiling Mounted

Anti-theft clamp-1, SS304

Anti-theft clamp-1, SS304

Stainless steel material; Used for the absorption of suspending and Ceiling Mounted

Anti-theft clamp-2, SS304

Anti-theft clamp-2, SS304

Stainless steel material; Used for the absorption of suspending and Ceiling Mounted

Anti-vibration bracket, SS316

Anti-vibration bracket, SS316

Stainless steel material; Used for the absorption of suspending and Ceiling Mounted

Suspension kit

Suspension kit

Stainless steel material; Used for the absorption of suspending

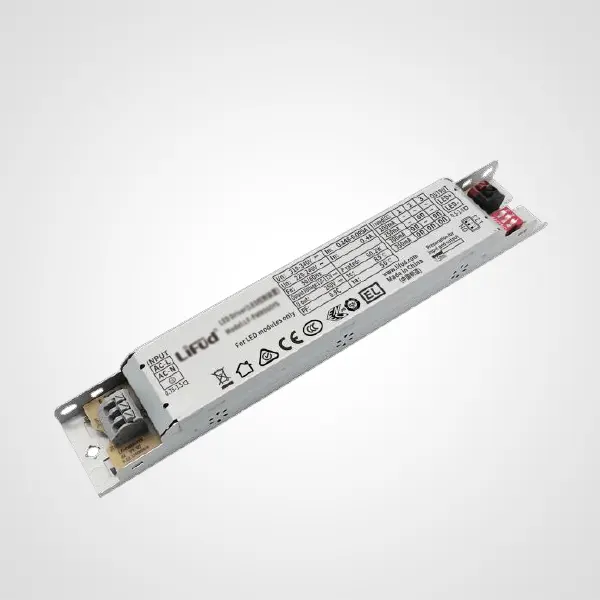

LED driver

LED driver

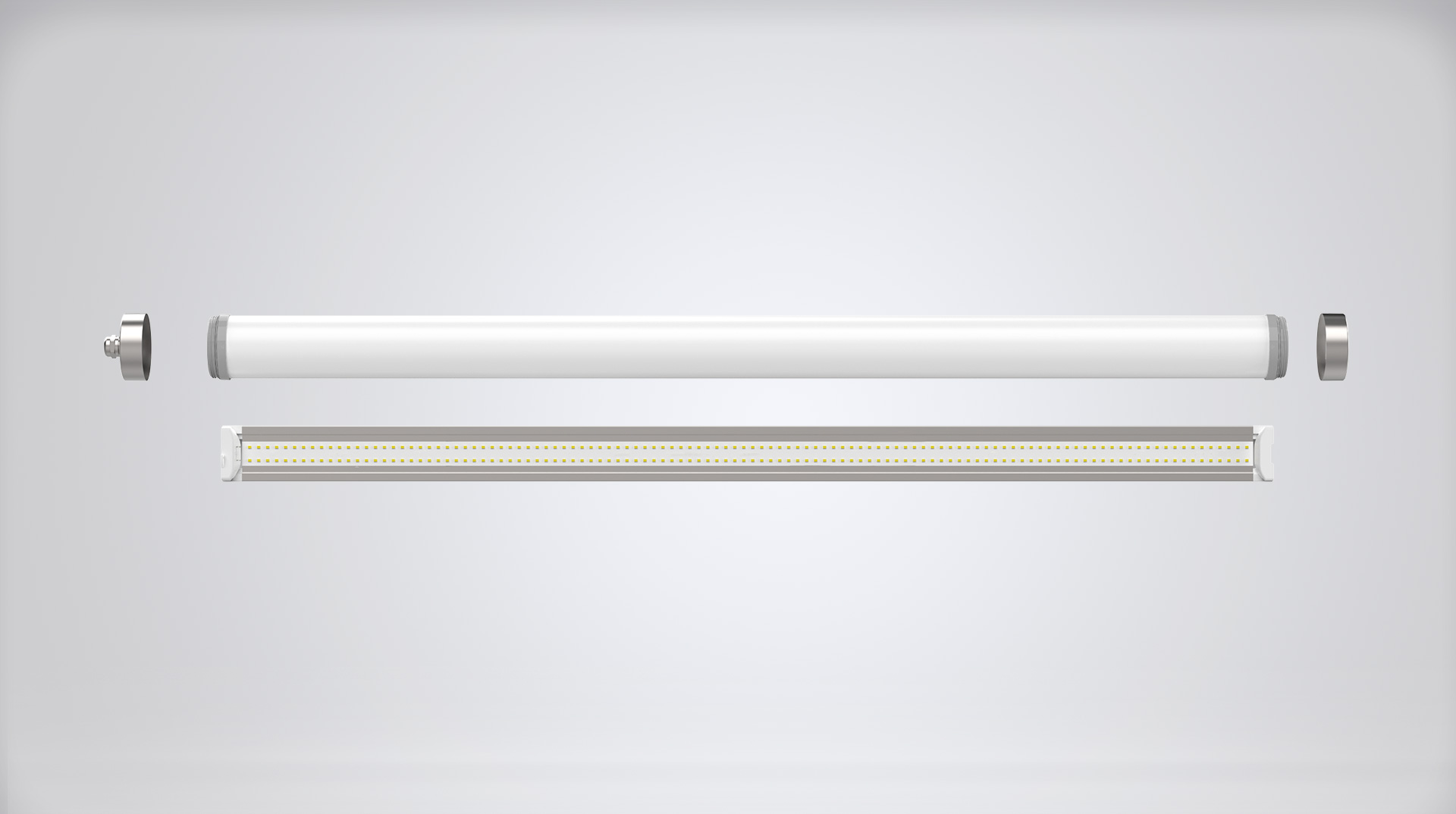

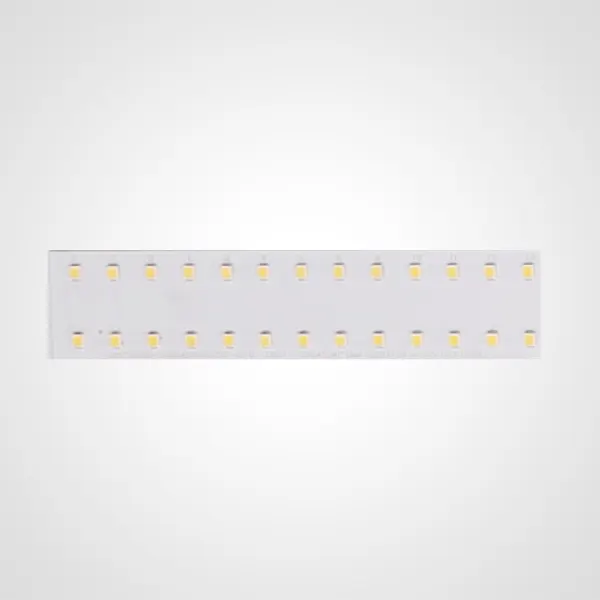

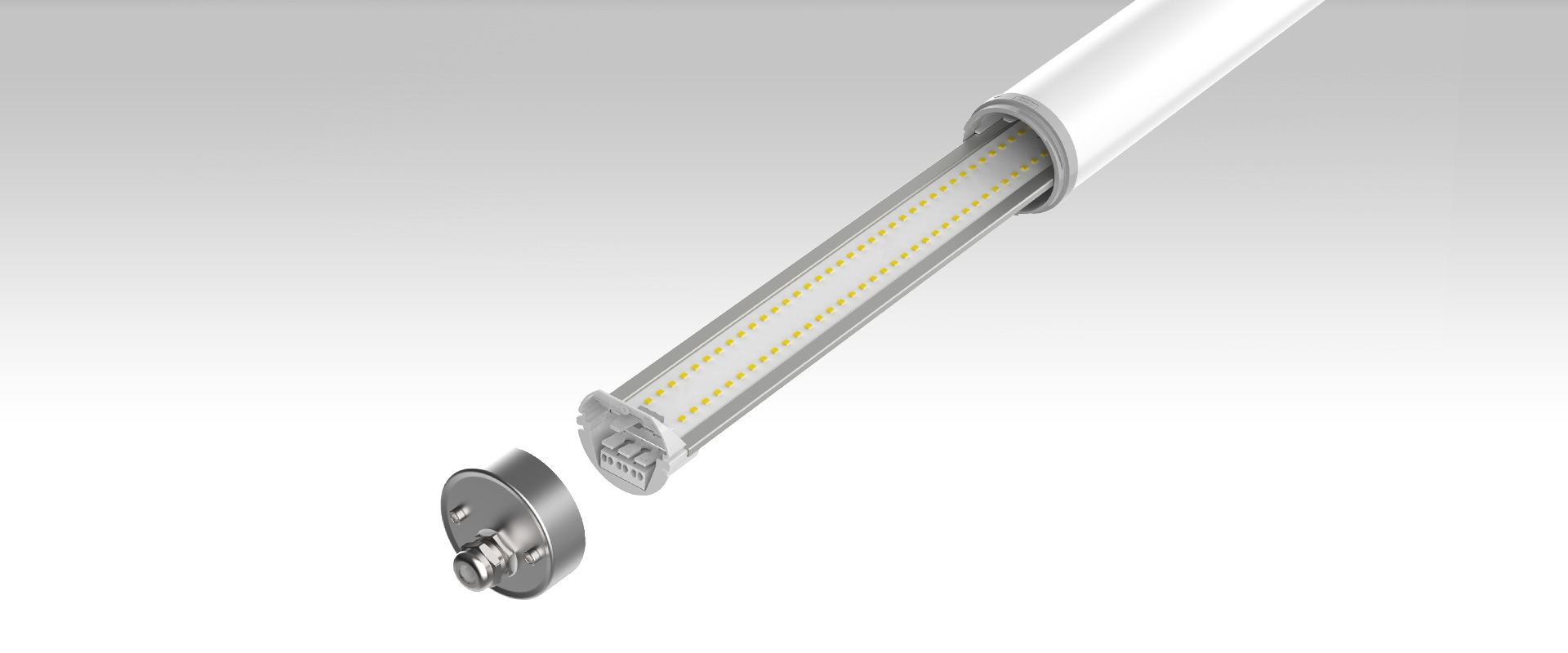

LED PCB board

LED PCB board

Structure Data

Input: AC220~240V; DC 180-264V 50/60Hz

Operation Temp: -20~40°C

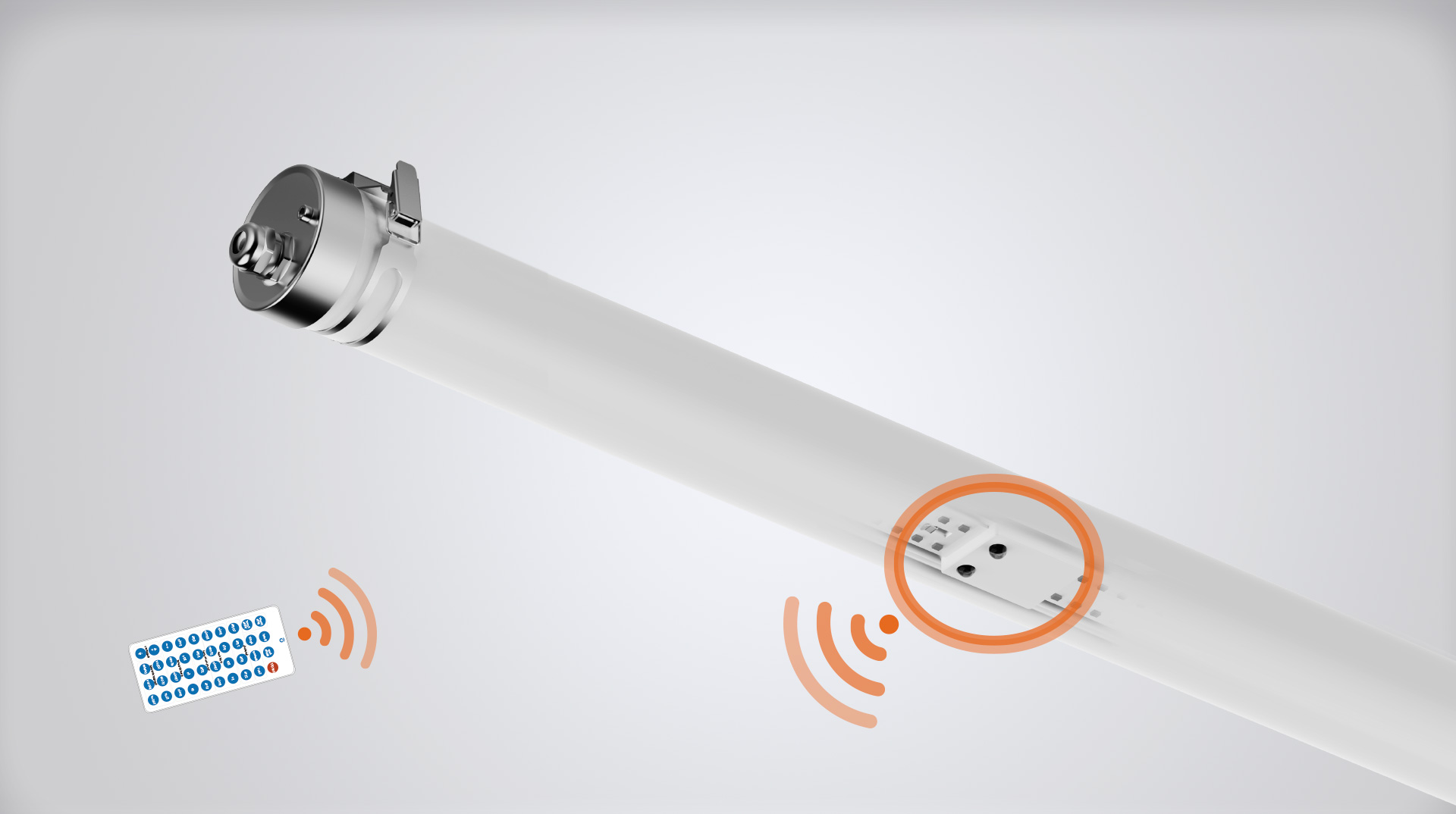

Function: 0/1~10V | DALI | Microwave sensor options
Flicker: Flicker free

Material: Extruded PC/Sheet metal board

End cap:Stainless steel 304 (316 available on request)

Cable entry:Nickel-coated brass cable gland

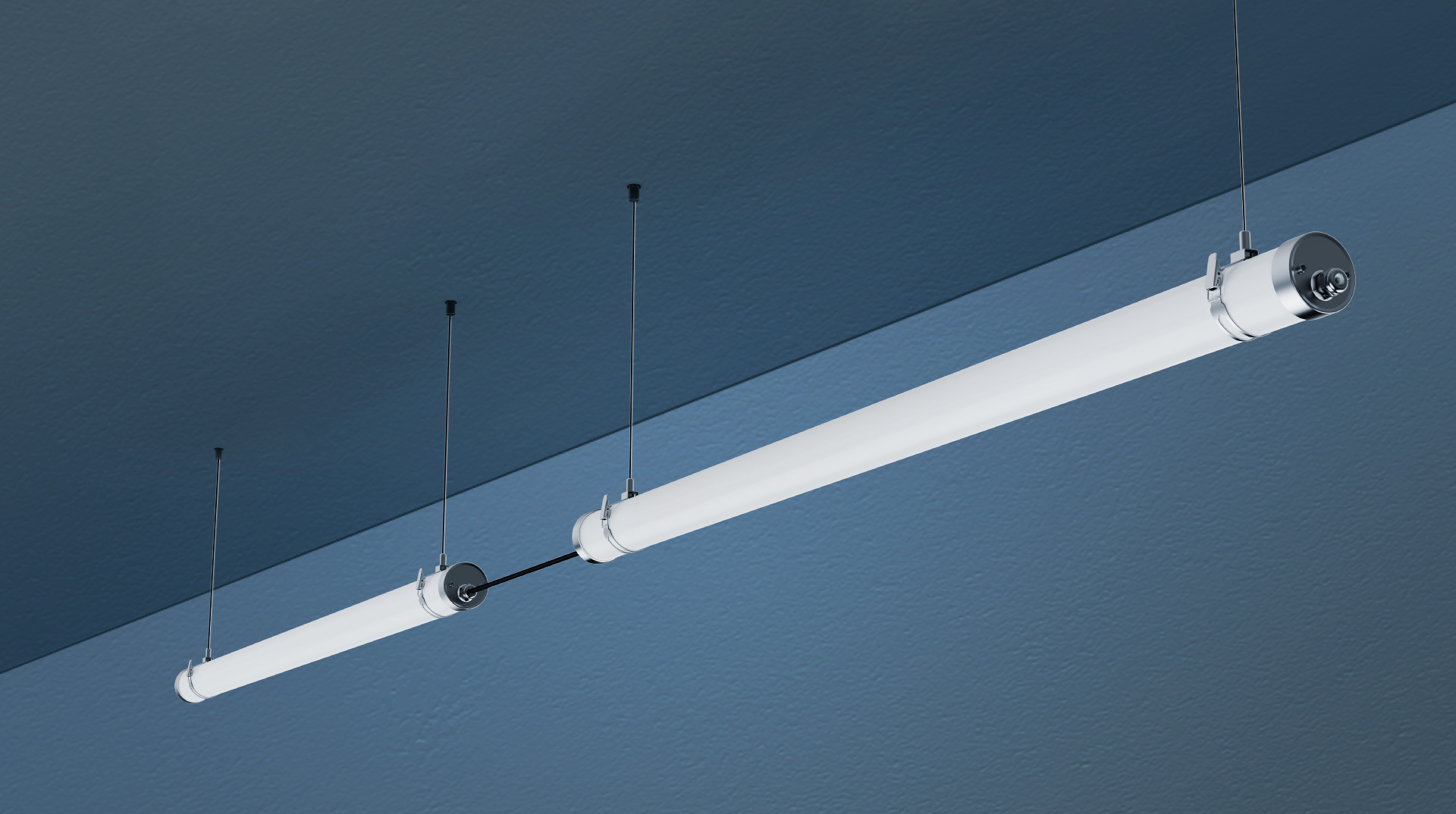

Installation:Ceiling mounted | Suspension | Wall Mounted

Protection: IP65 | IK10

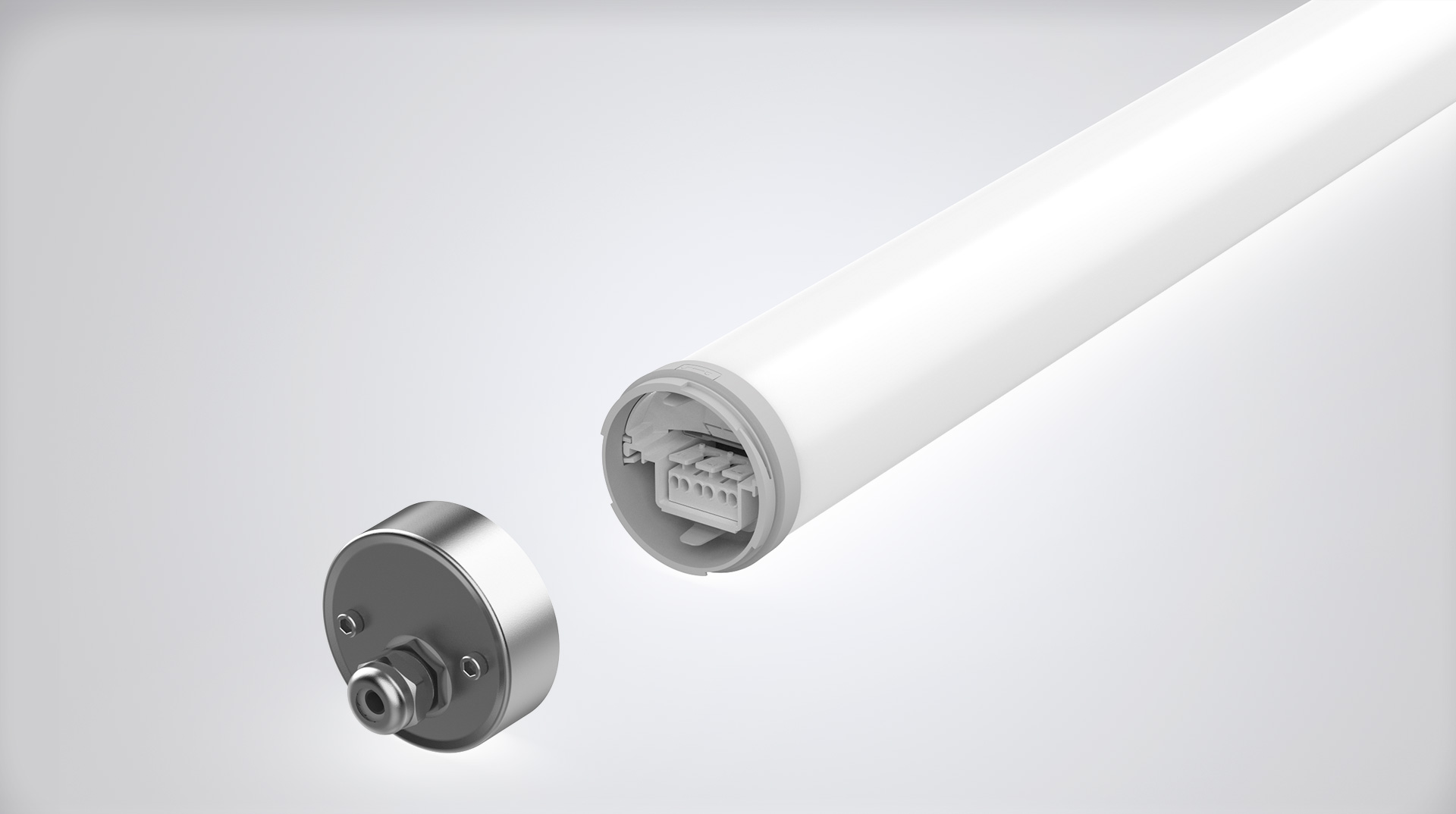

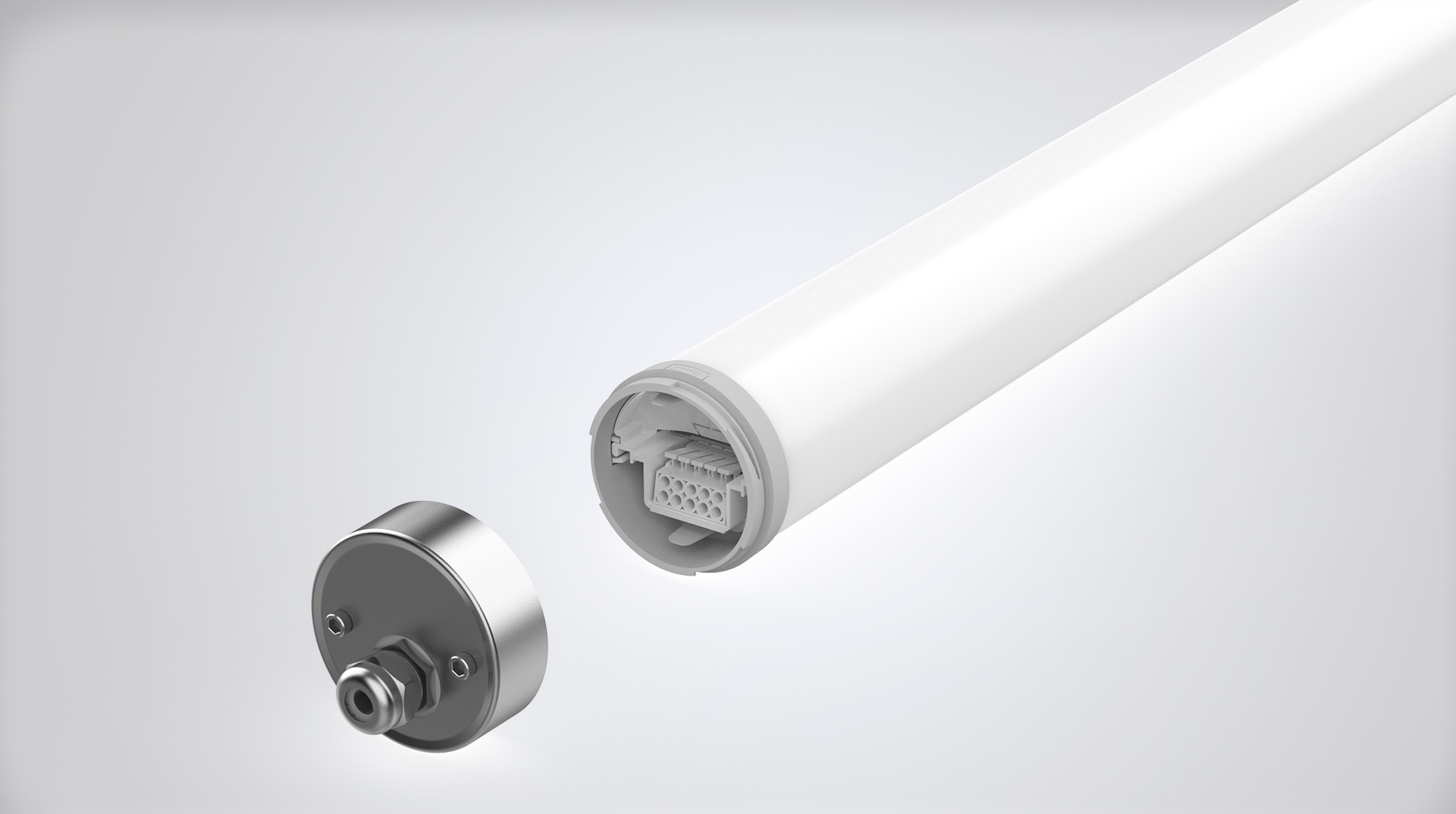

Terminal: 3/5 poles push-fit terminal
