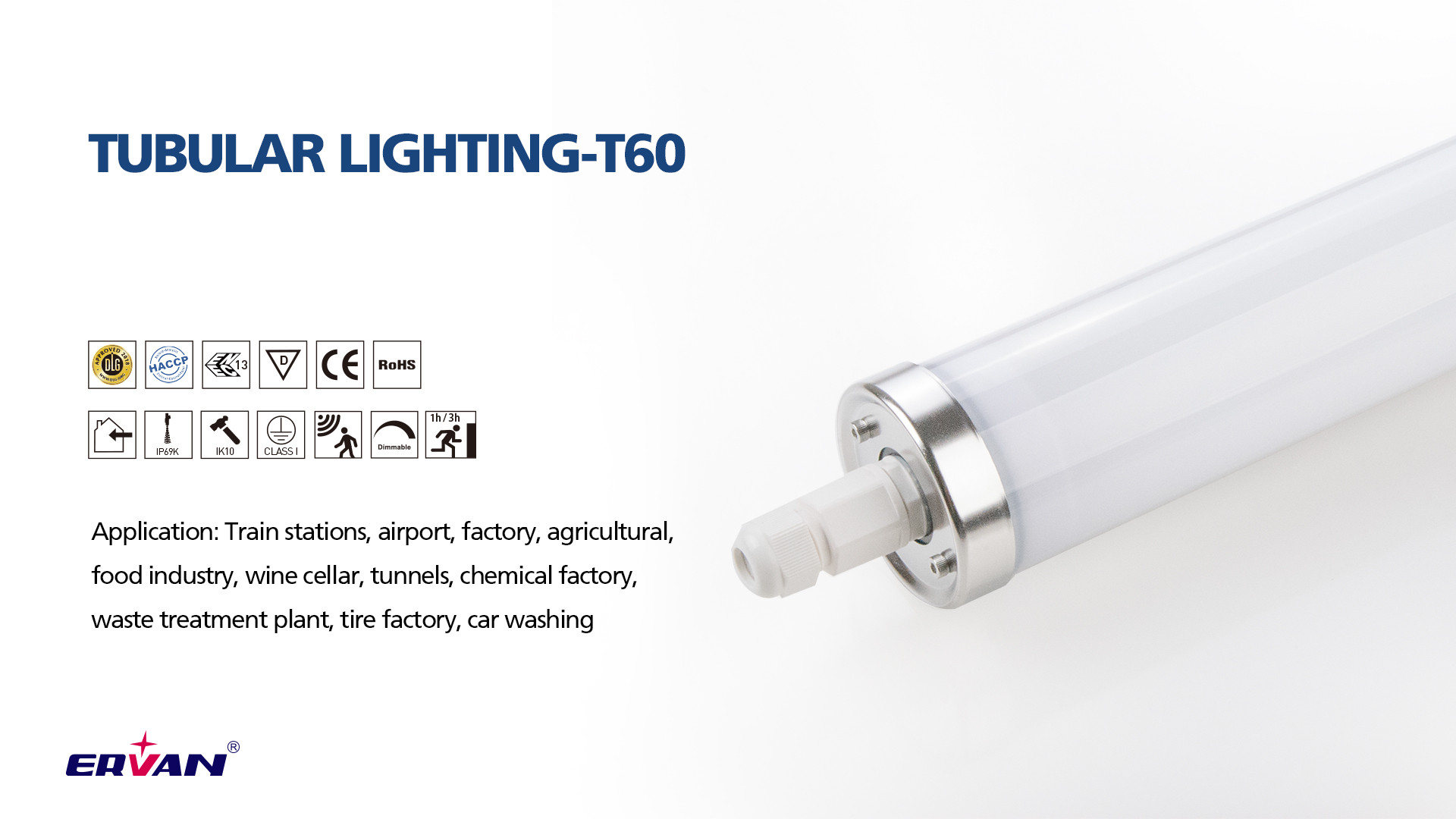

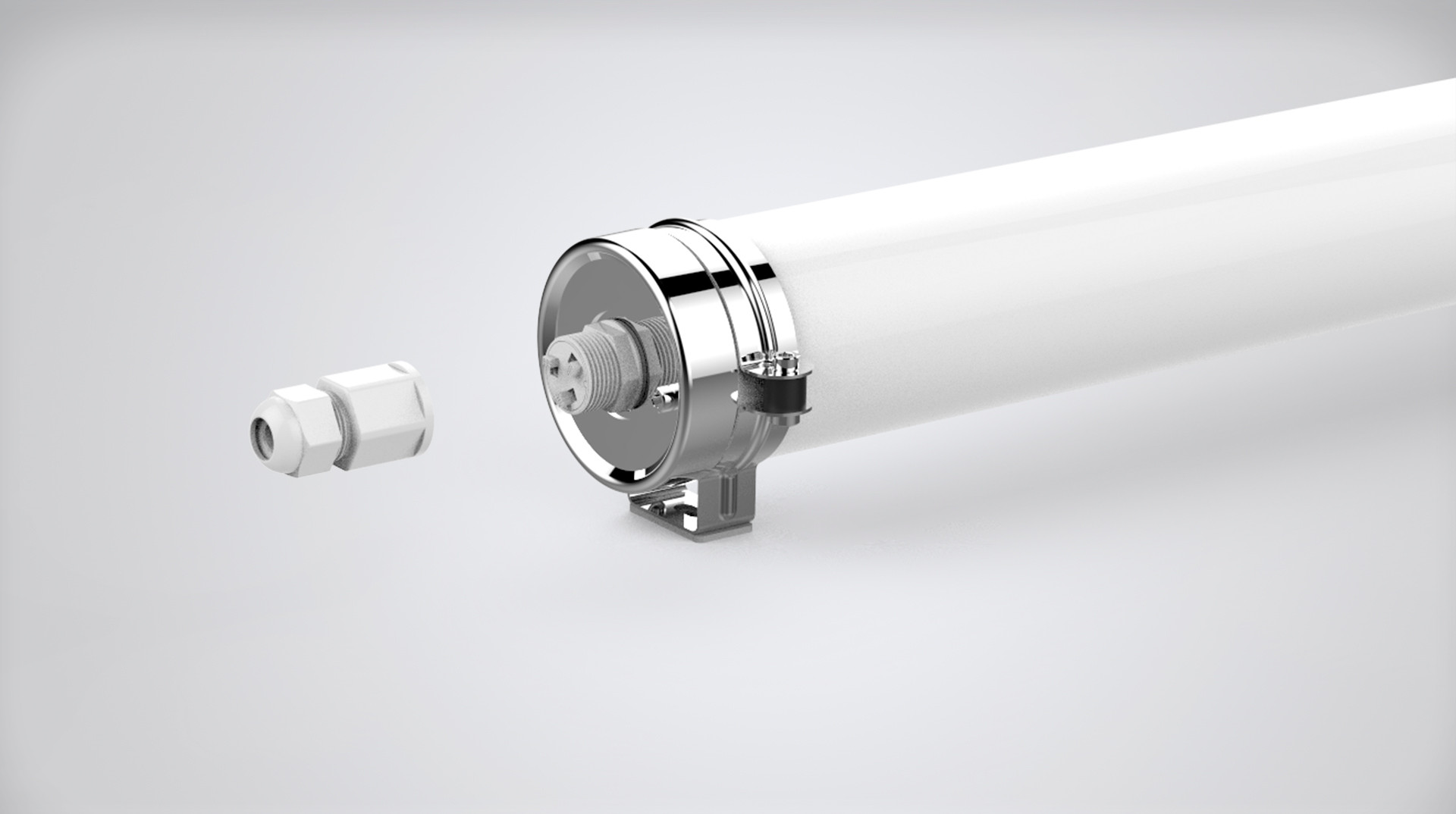

TUBULAR

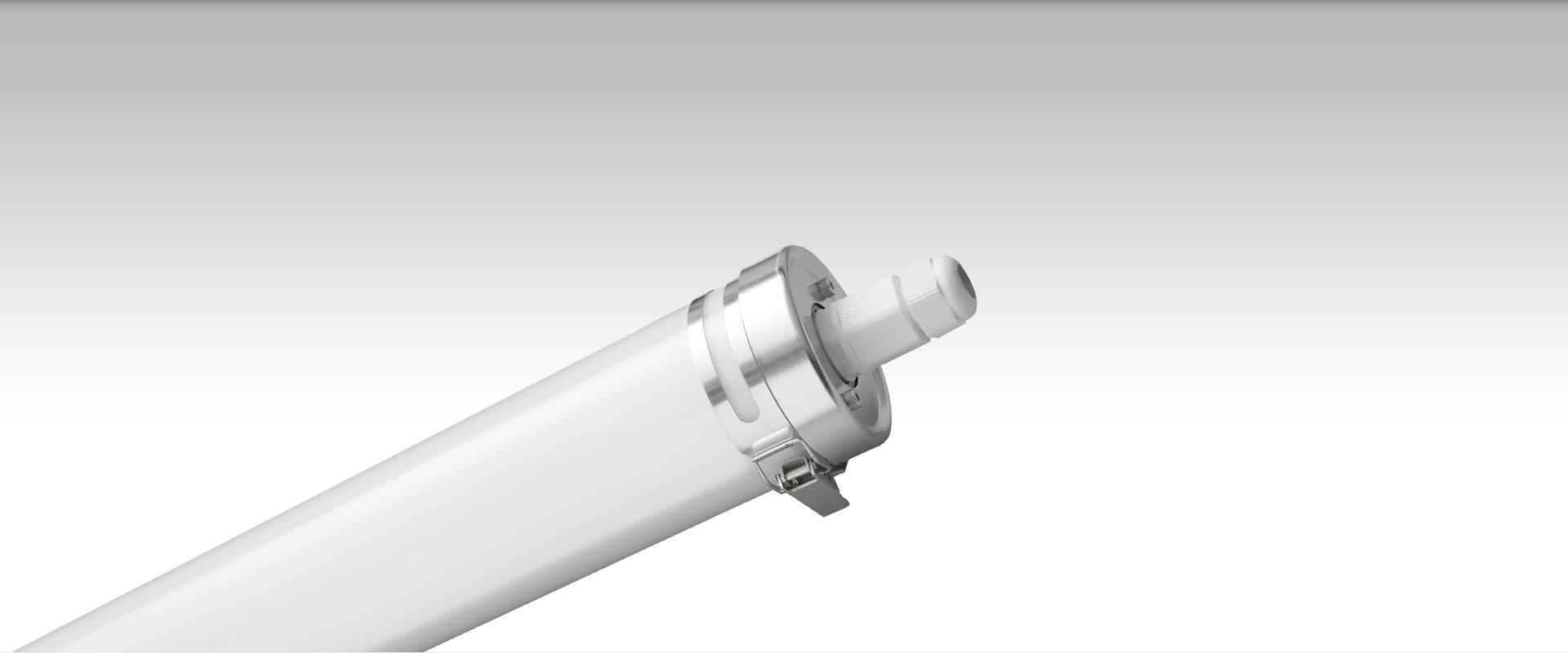

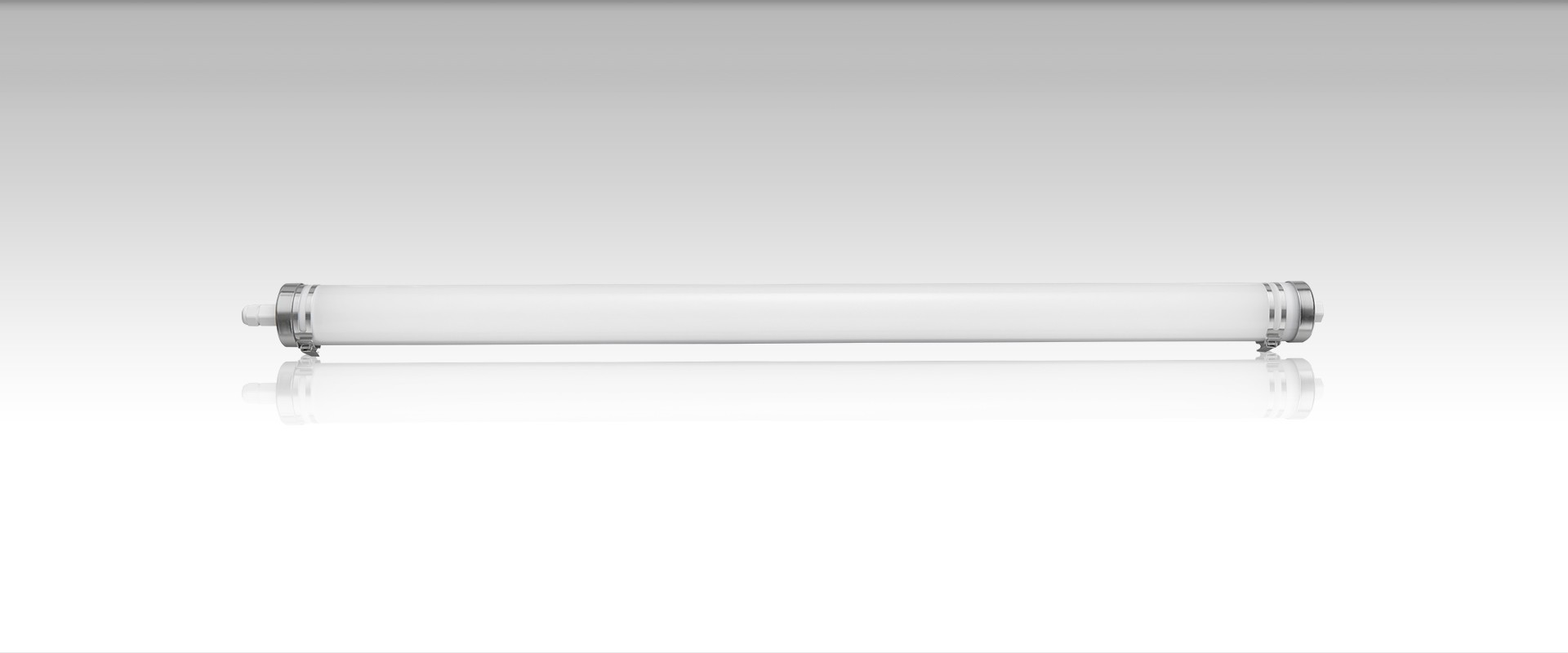

T60-PC

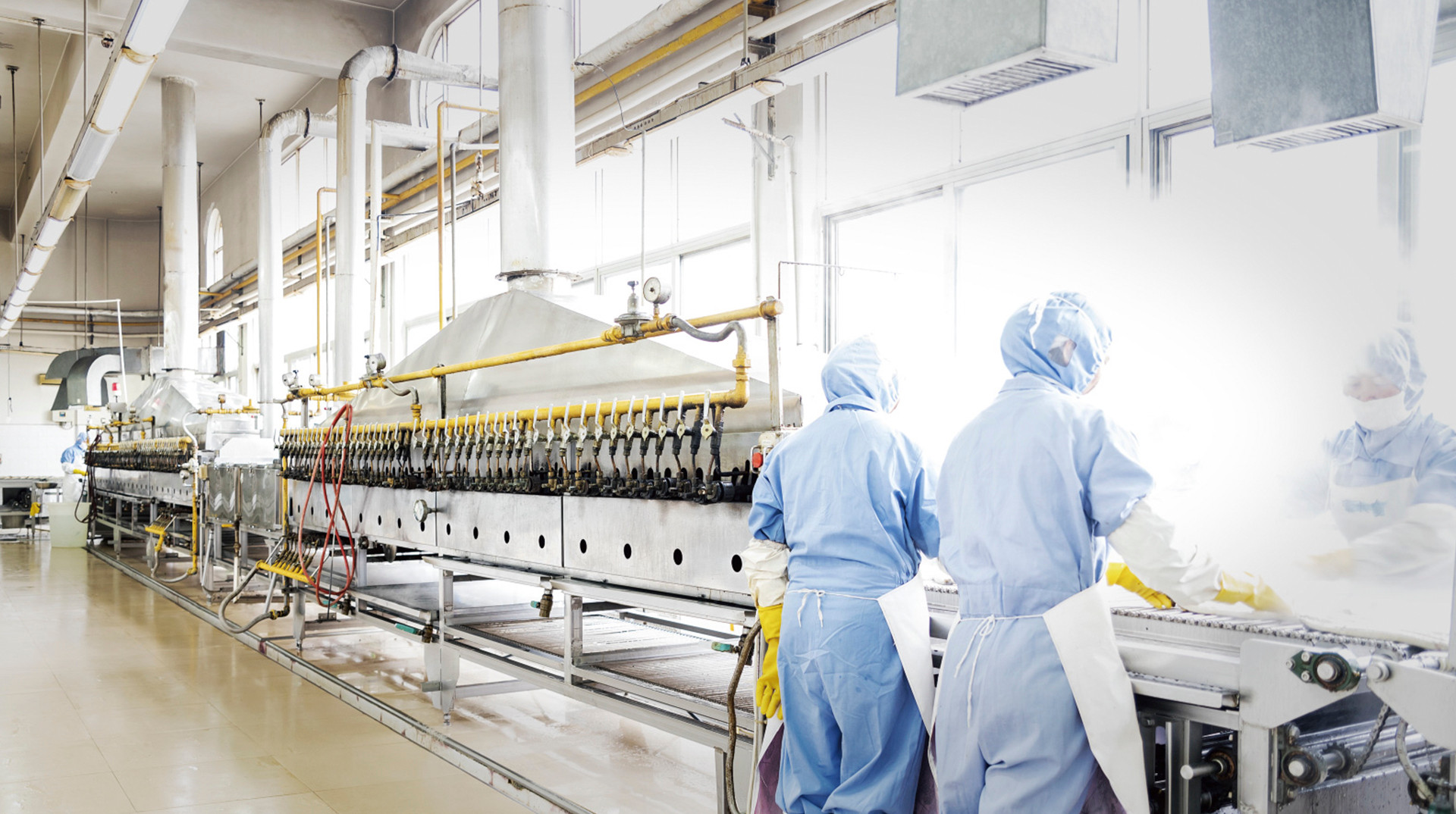

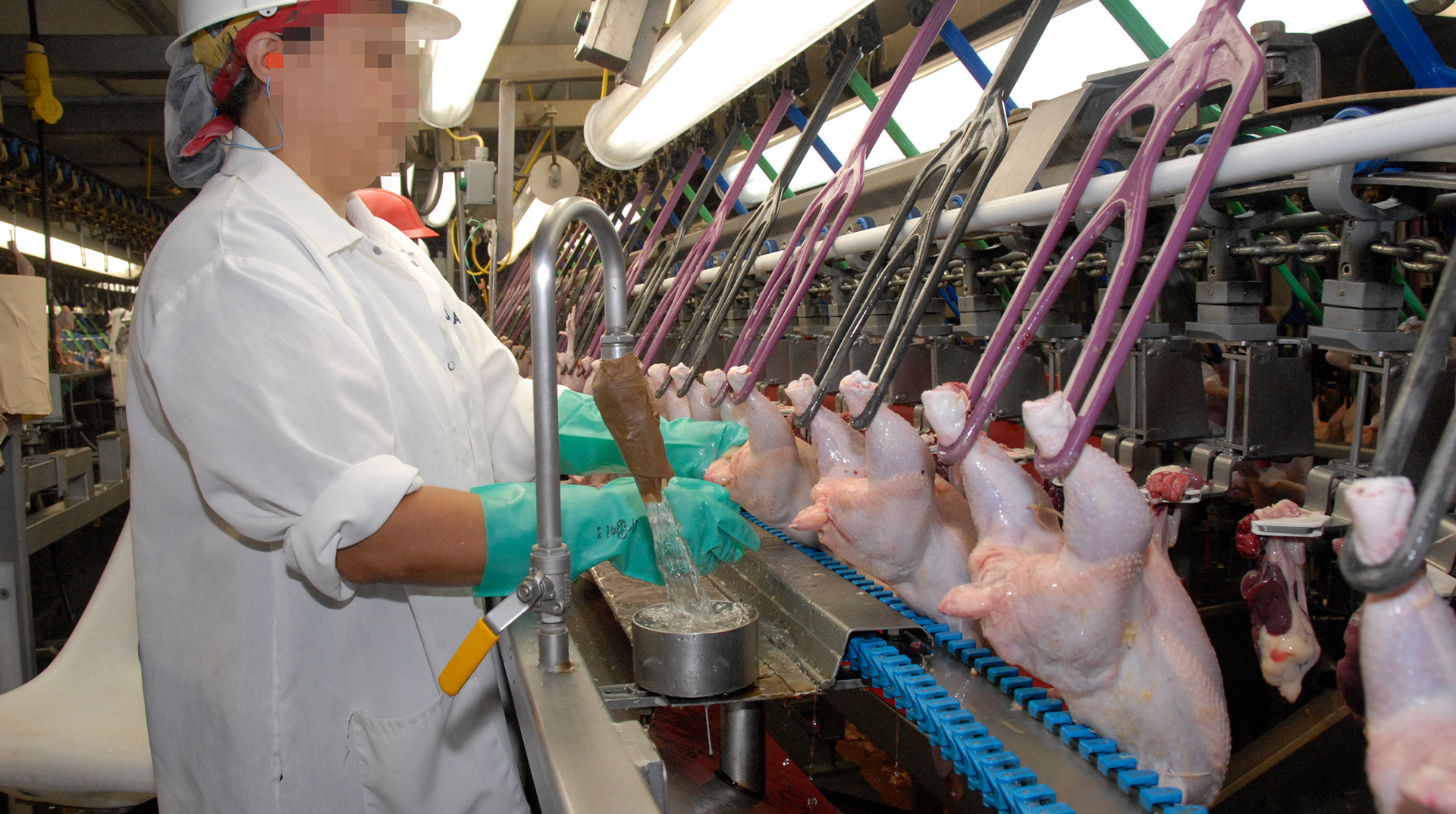

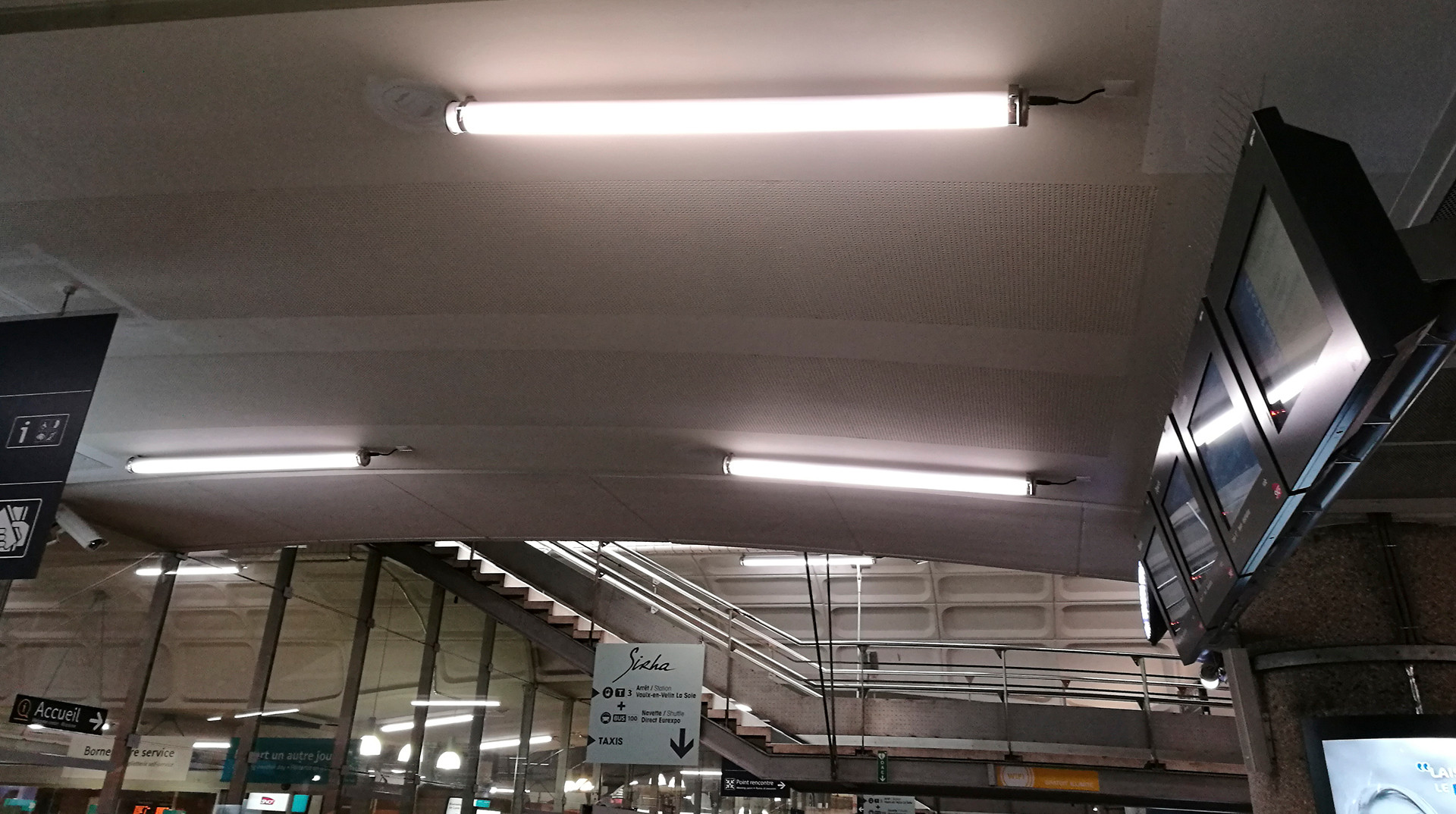

As a professional Tubular lighting with classic all-rounder design, T60 PC diffuser offers IP69K and IK10 protection guarantees wide range applications, such as Train stations, airport, factory, food industry, wine cellar, tunnels...




SizeWattageLumenEfficiencyCRICCTSDCMWaterproofIK Rate
600mm20W3200LM160lm/w804000K3IP69KIK10
1200mm36W5760LM160lm/w804000K3IP69KIK10
1500mm48W7680LM160lm/w804000K3IP69KIK10


Name

Description

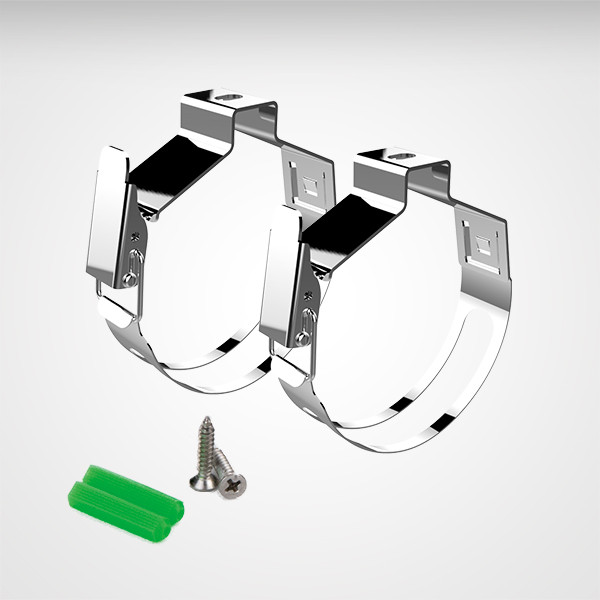

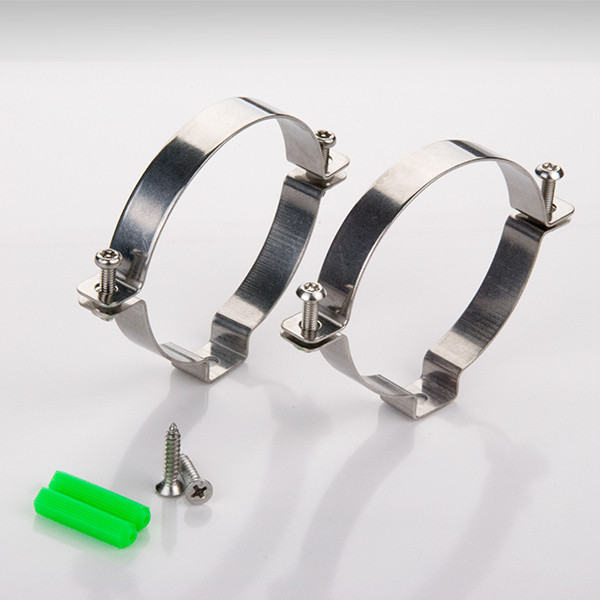

Surface mounting Bracket

Surface mounting Bracket

Stainless steel 316 material; Used of Suspending and ceiling mounted; 2pcs/set

Anti-thief bracket

Anti-thief bracket

Stainless steel 316 material; Used of Suspending and ceiling mounted; 2pcs/set

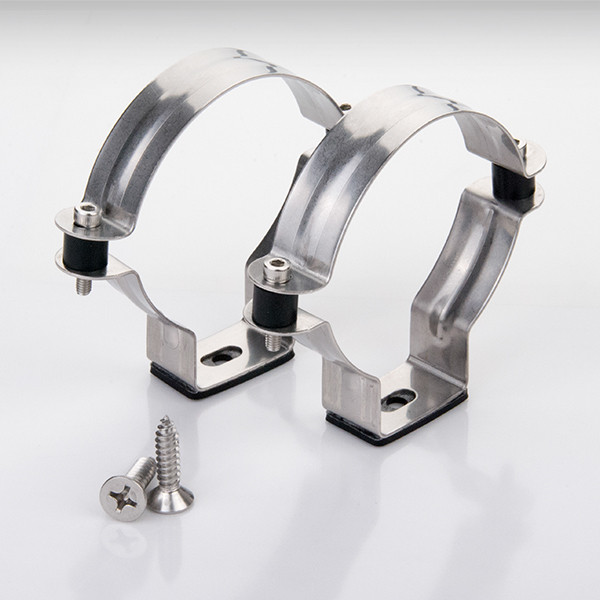

Anti-vibration bracket

Anti-vibration bracket

Stainless steel 316 material; Used of Suspending and ceiling mounted; 2pcs/set

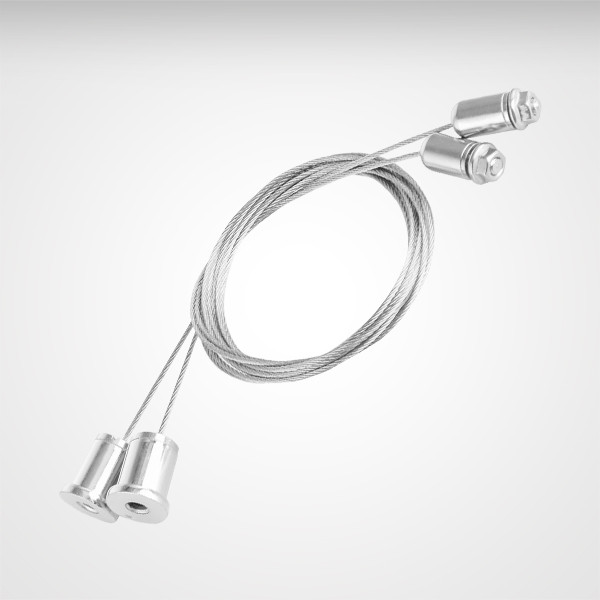

Suspending Cable

Suspending Cable

Stainless steel material; Used of suspending; 2pcs/set

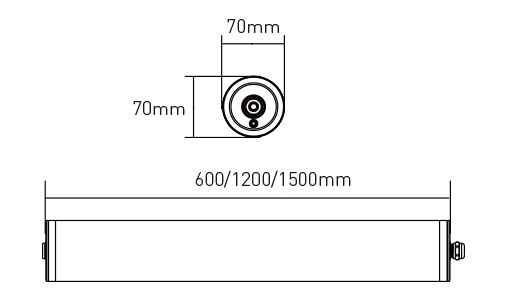

Structure Data

Input: AC220~240V 50/60Hz

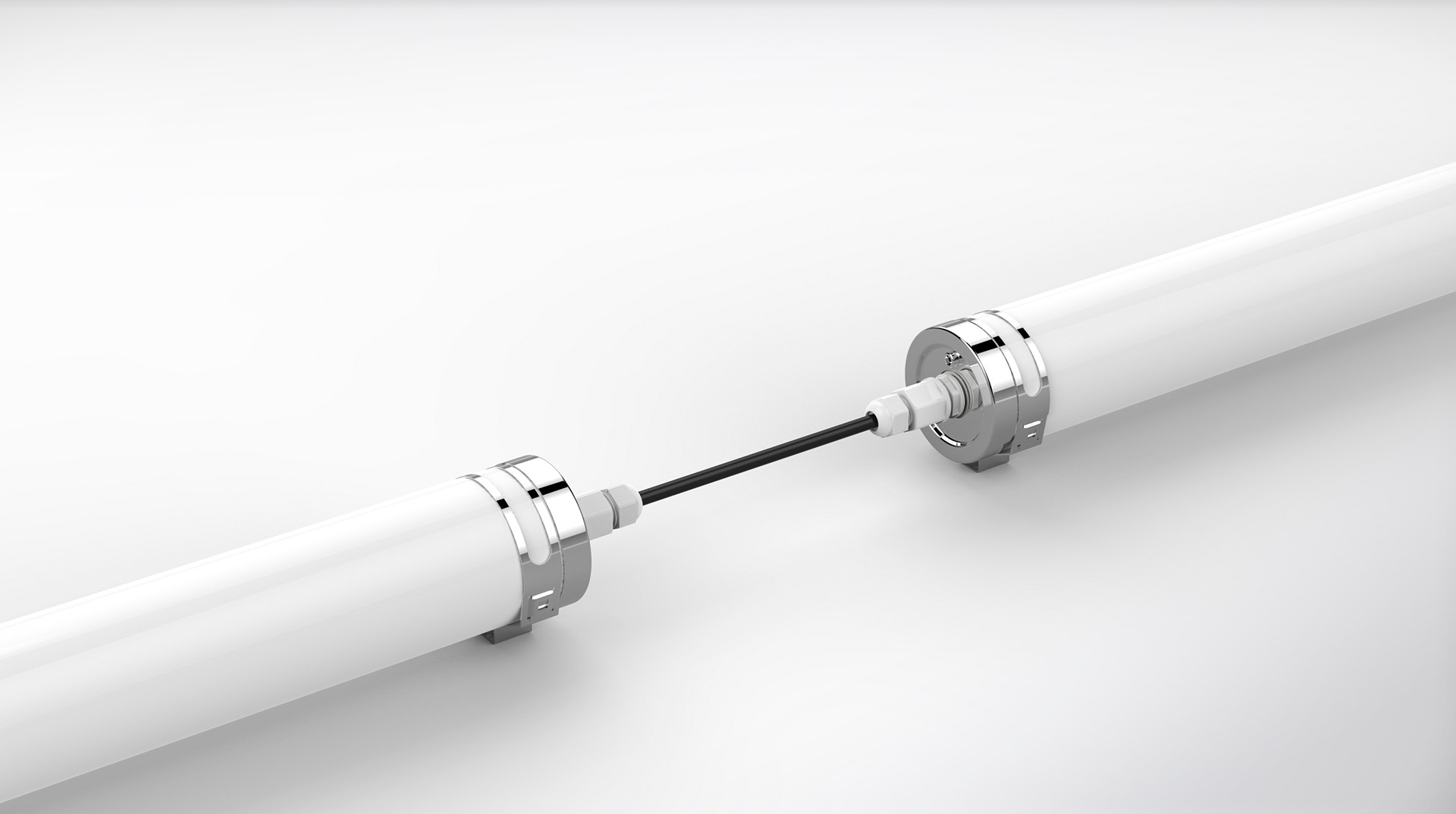

Wiring: 3 wires through optional
Operation Temp: -20~40°C
Function: 1~10V DIM | Dimmable | Motion Sensor | Emergency
Flicker: Flicker free
Material: PC+Stainless Steel 316

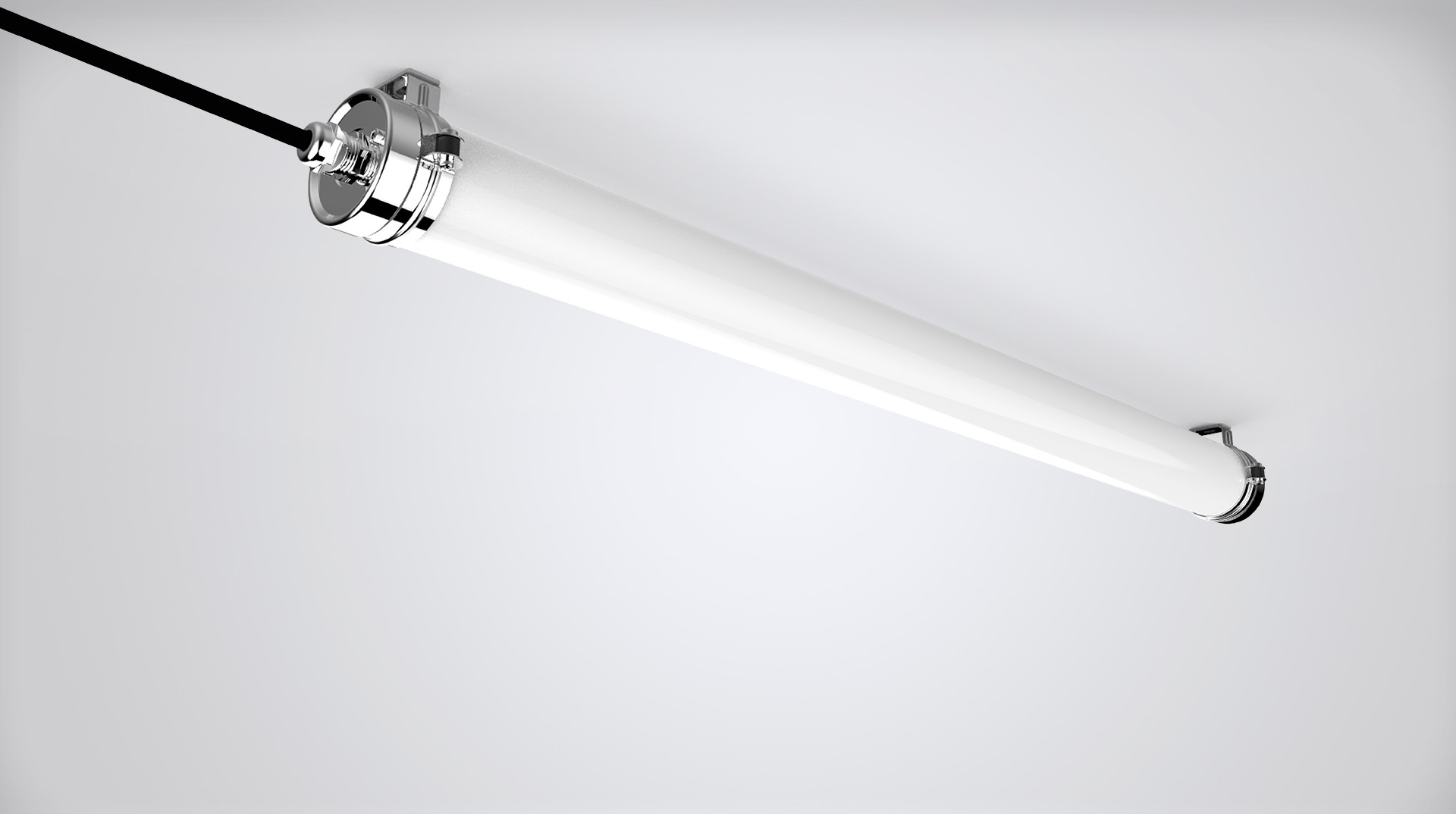

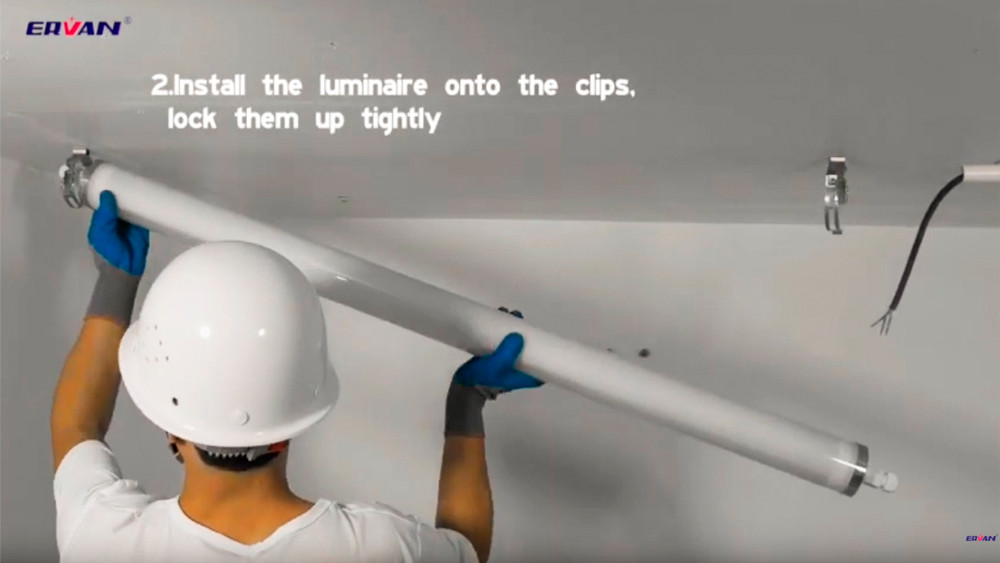

Installation: Ceiling mounted | Suspension | Wall Mounted
Protection: IP69K | IK10
Terminal: 3x1.5mm² | M20 Connector



Download
Manual

Manual-Tri-proof-light-T60 PC V2.pdf

Download
IES Files

T60 IES.zip

Download
Integrating Sphere

T60.zip

Download
Specification

SPEC-T60 V3.pdf

Download
