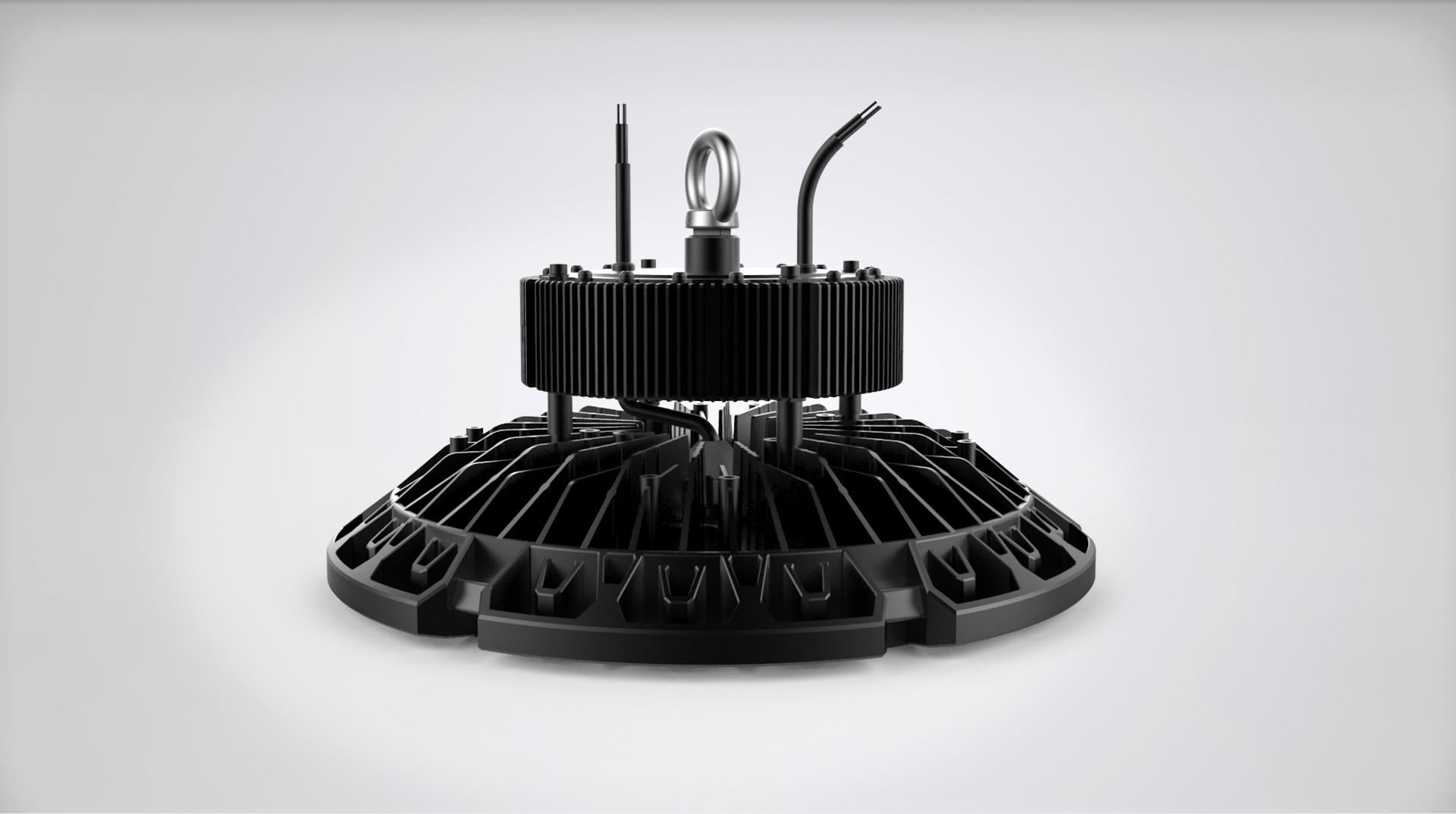

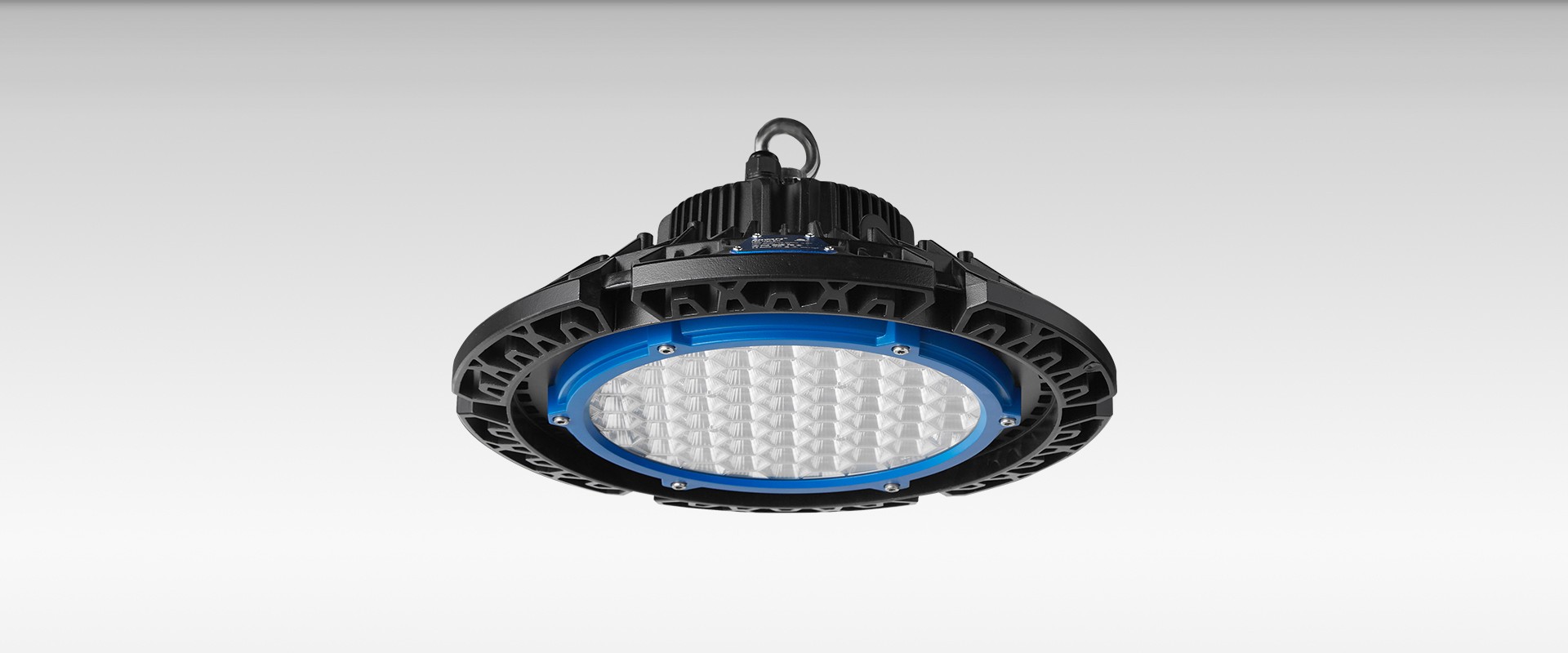

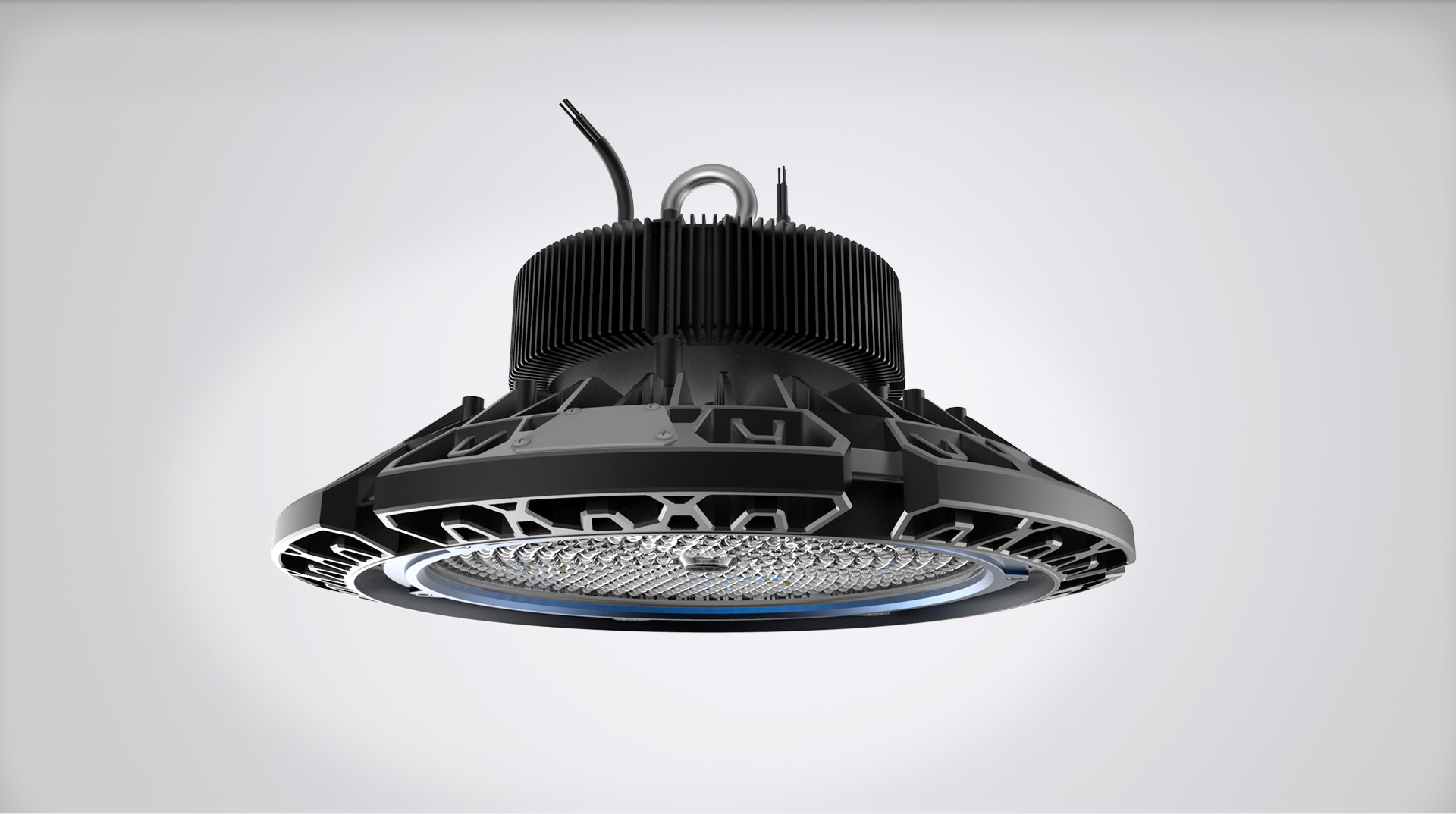

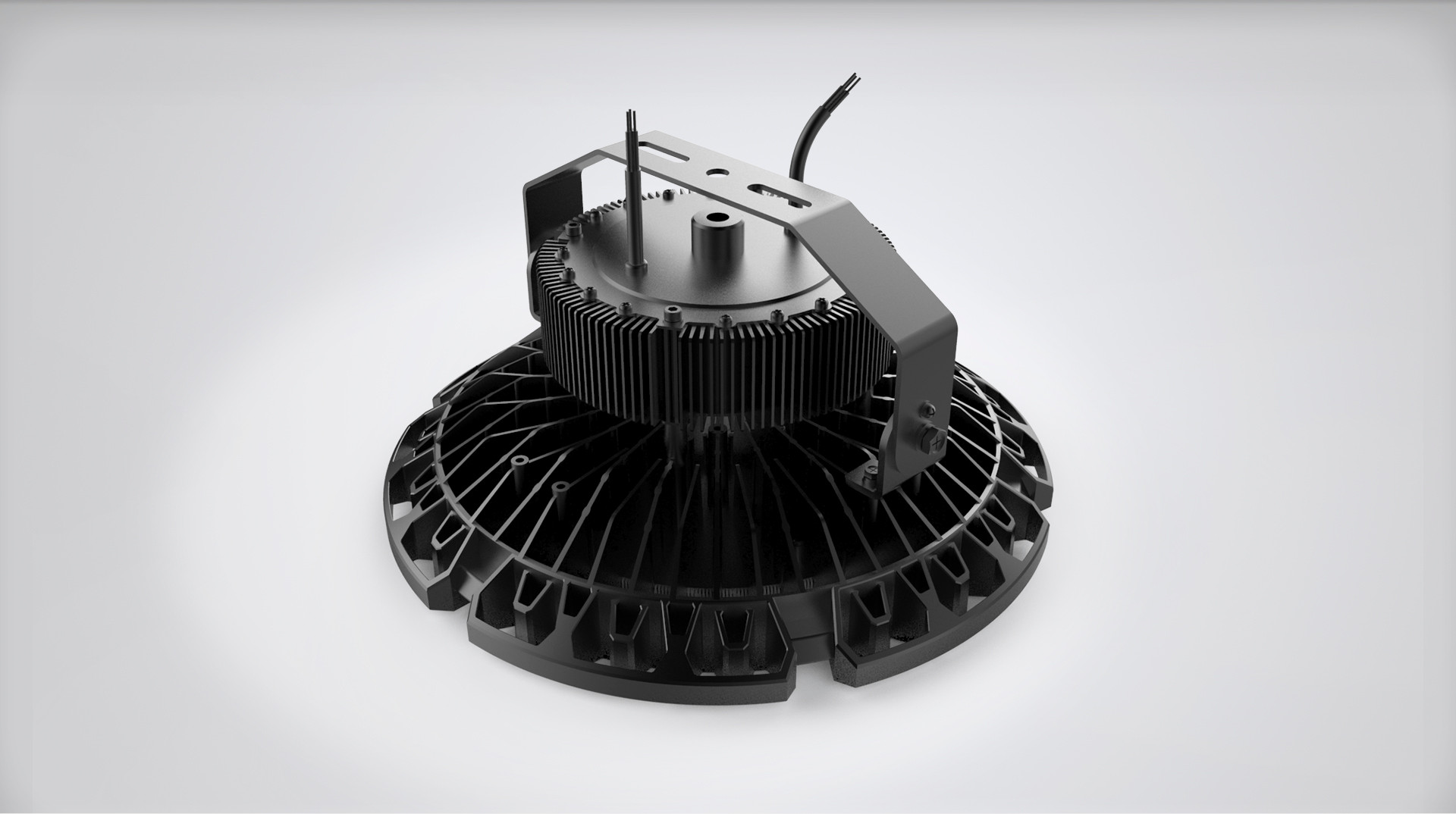

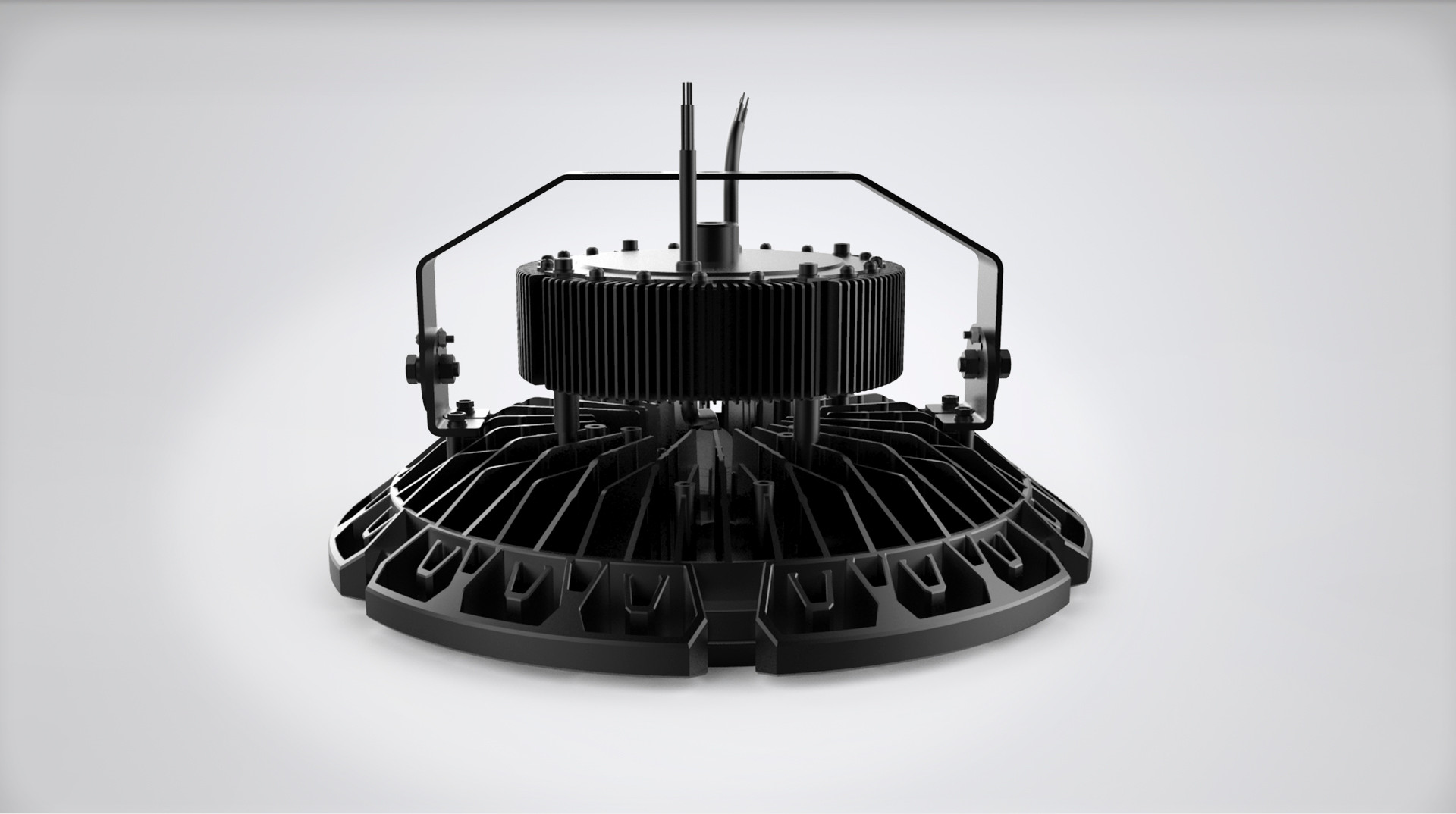

High Temperature
H03
Up to ta 65°C
With the awareness of energy-saving, high temperature LED High Bay, is also mentioned by the market for heavy industry. According to this growing request, ERVAN specially pays high attention to this special design, solving difficult temperature issue.
The unique heat sink and driver design in combination with an rebreather valve make it suitable for use in demading areas with up to 65°C ambient temperature，an ideal solution for heavy industry , for example, steel factory.

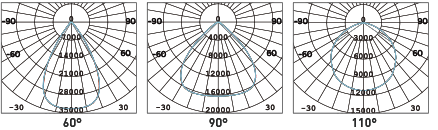

| Size | Wattage | Lumen | Efficiency | Beam Angle | CRI | CCT | SDCM |
|---|---|---|---|---|---|---|---|

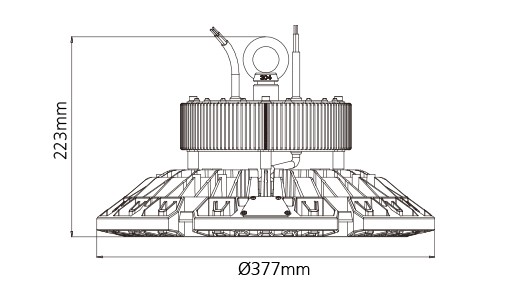

| Ø380mm | 90W | 13950LM | 155lm/w | 60°/90°/110° | 80 | 4000K | 3 |
| Ø380mm | 150W | 27000LM | 180lm/w | 60°/90°/110° | 80 | 4000K | 3 |
| Ø380mm | 180W | 29800LM | 166lm/w | 60°/90°/110° | 80 | 4000K | 3 |

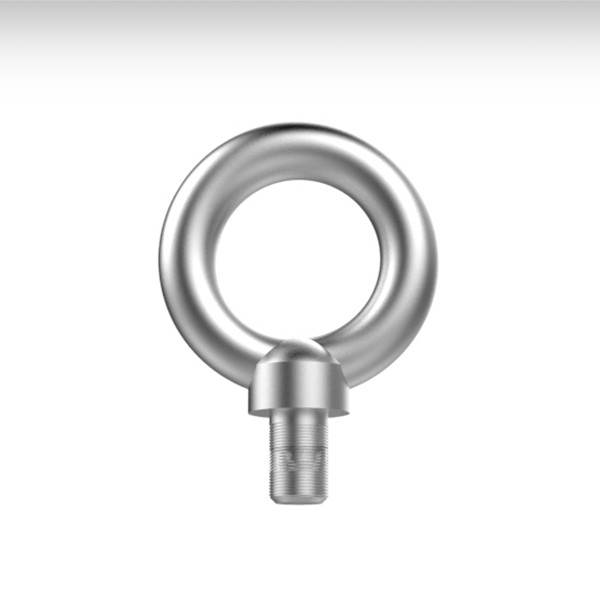

Loop hook
Stainless steel material; Used for suspending; 1pc/set

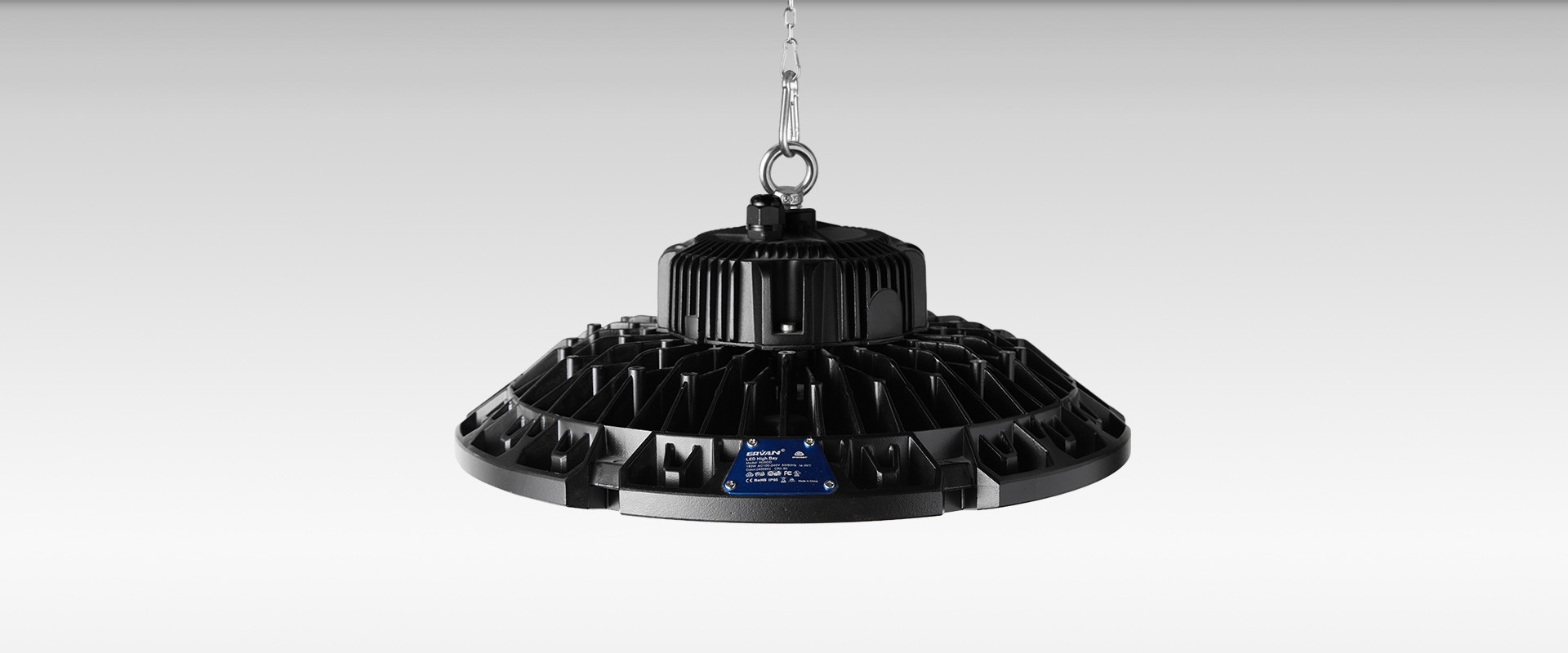

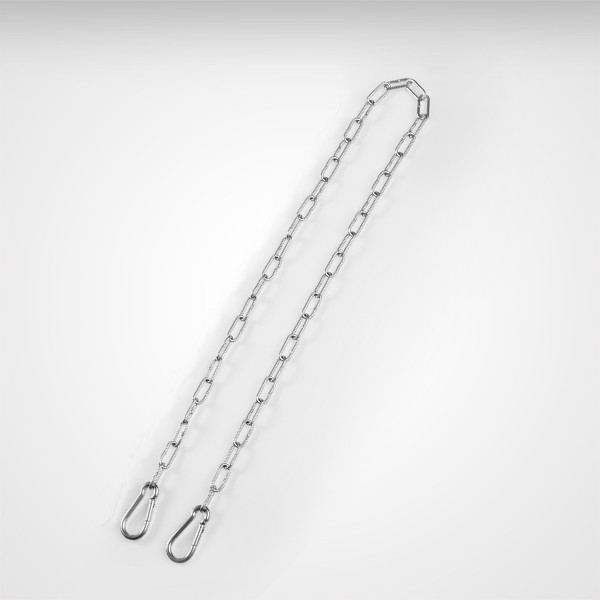

Suspension chain
Stainless steel material; Used for suspending; 1pc/set

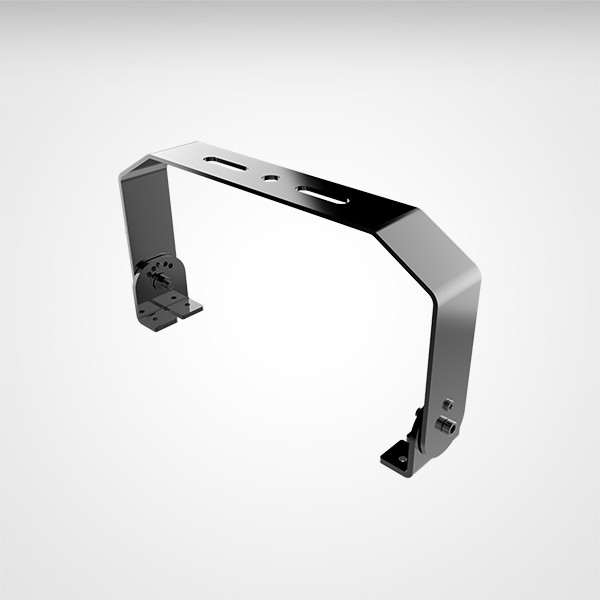

Surface mounting bracket
Steel material; Used for ceiling mounted; 1pc/set
Input: AC100~240V 50/60Hz
Operation Temp: -40~65°C
Function: 1~10V DIM
Flicker: Flicker free
Material: Aluminum
Installation: Ceiling mounted | Suspension
Protection: IP65 | IK08
