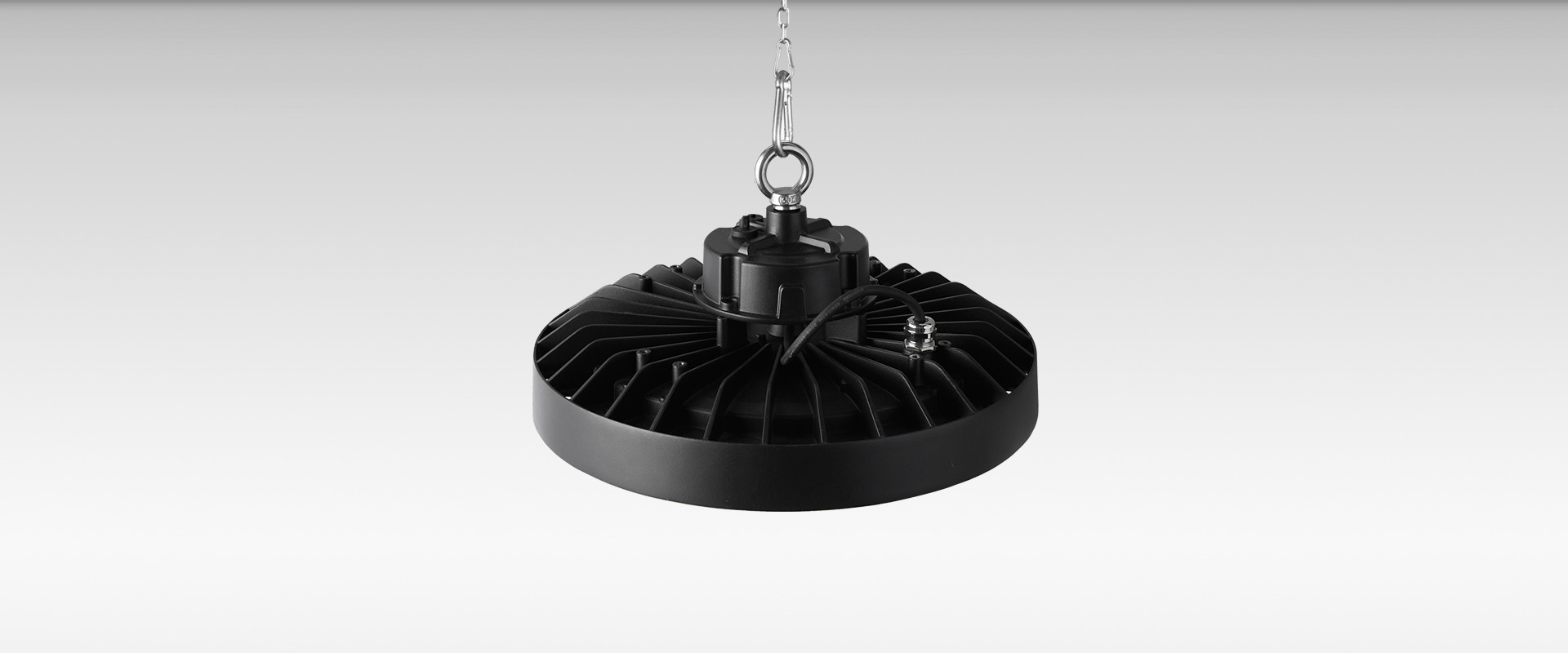

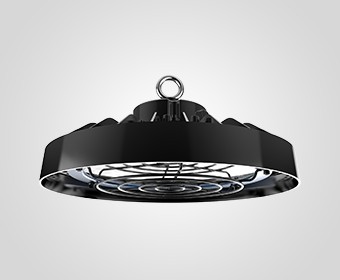

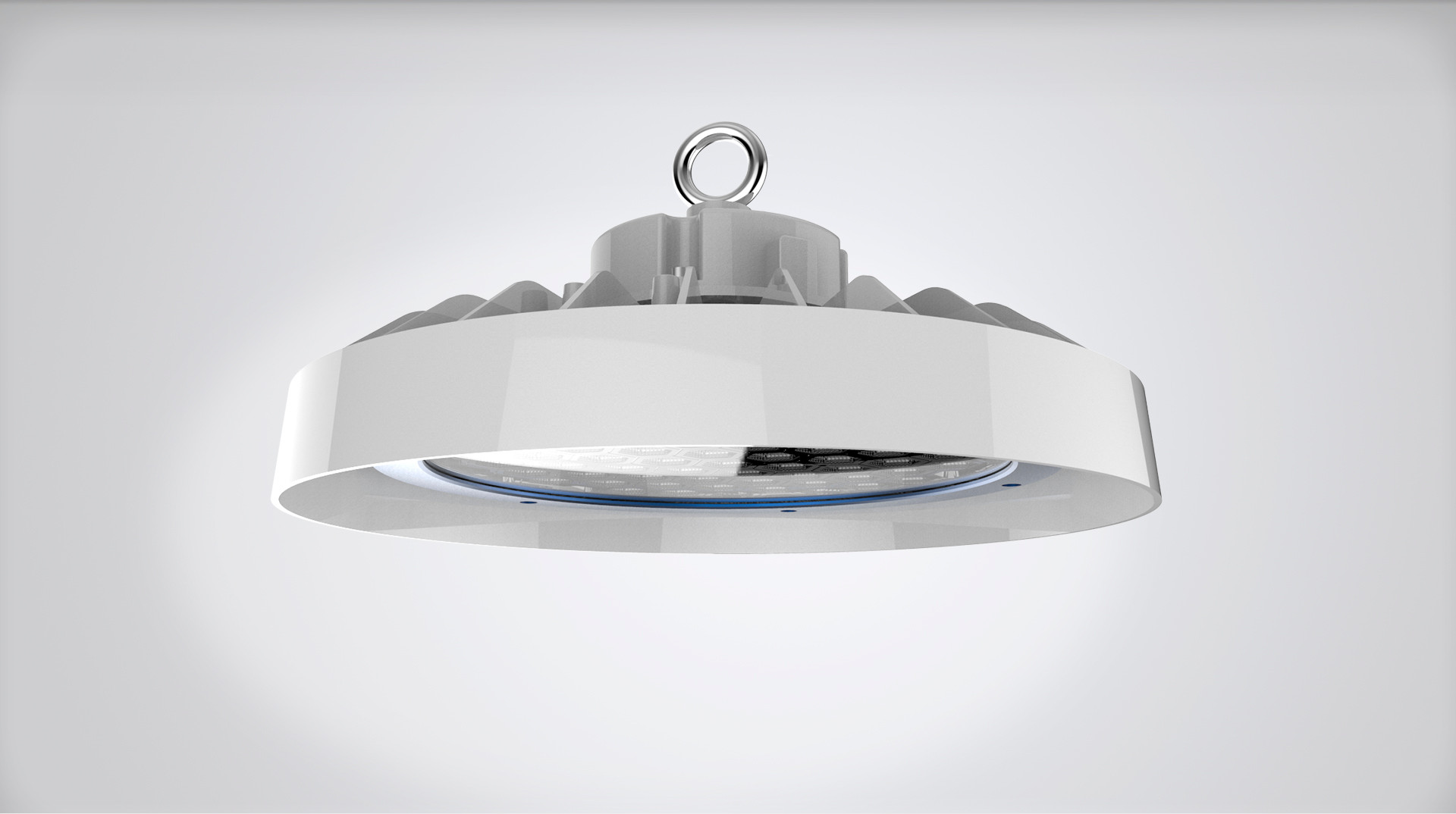

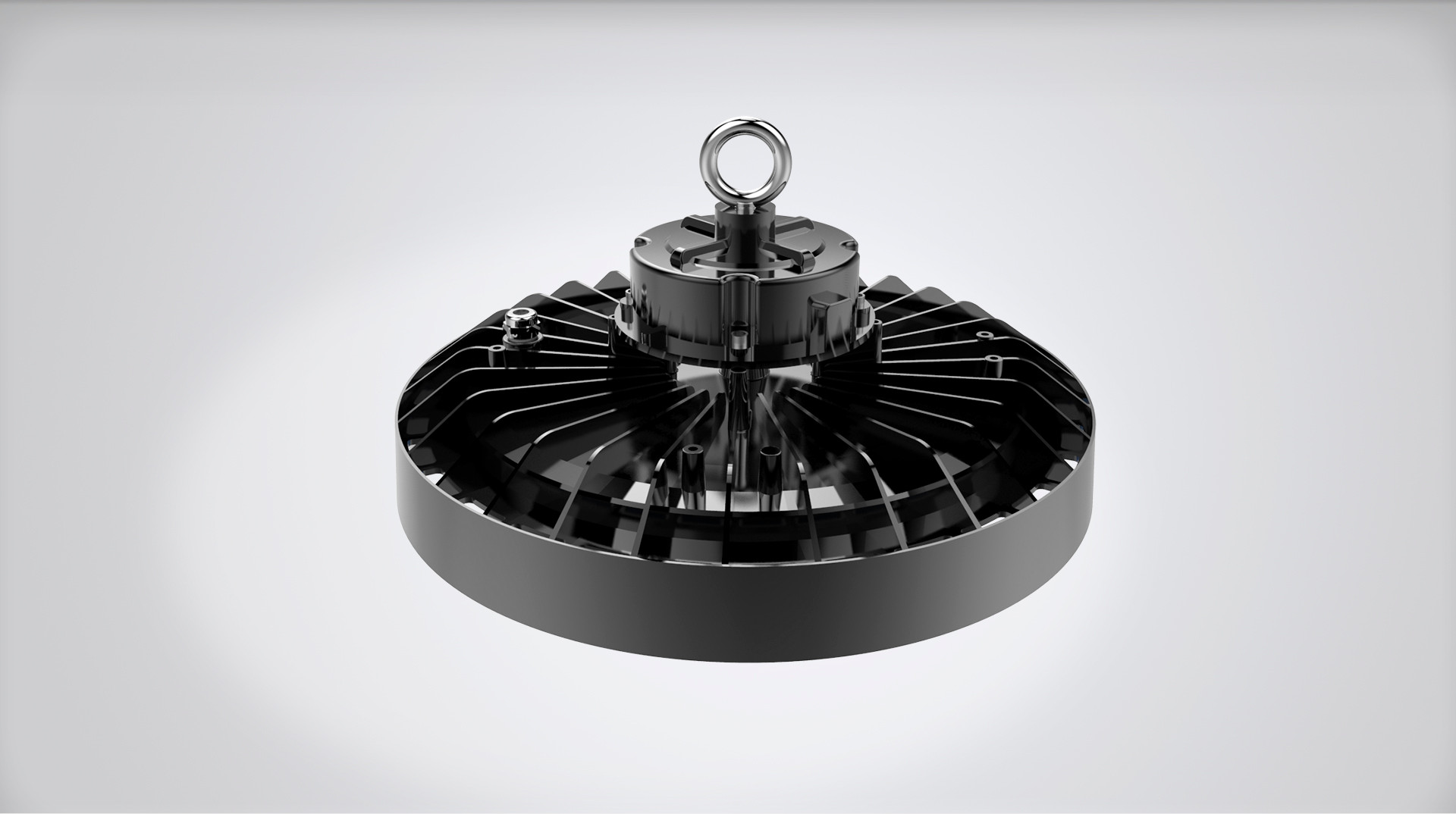

LOW GLARE LED HIGH BAY

H29


Ball Impact Resistance

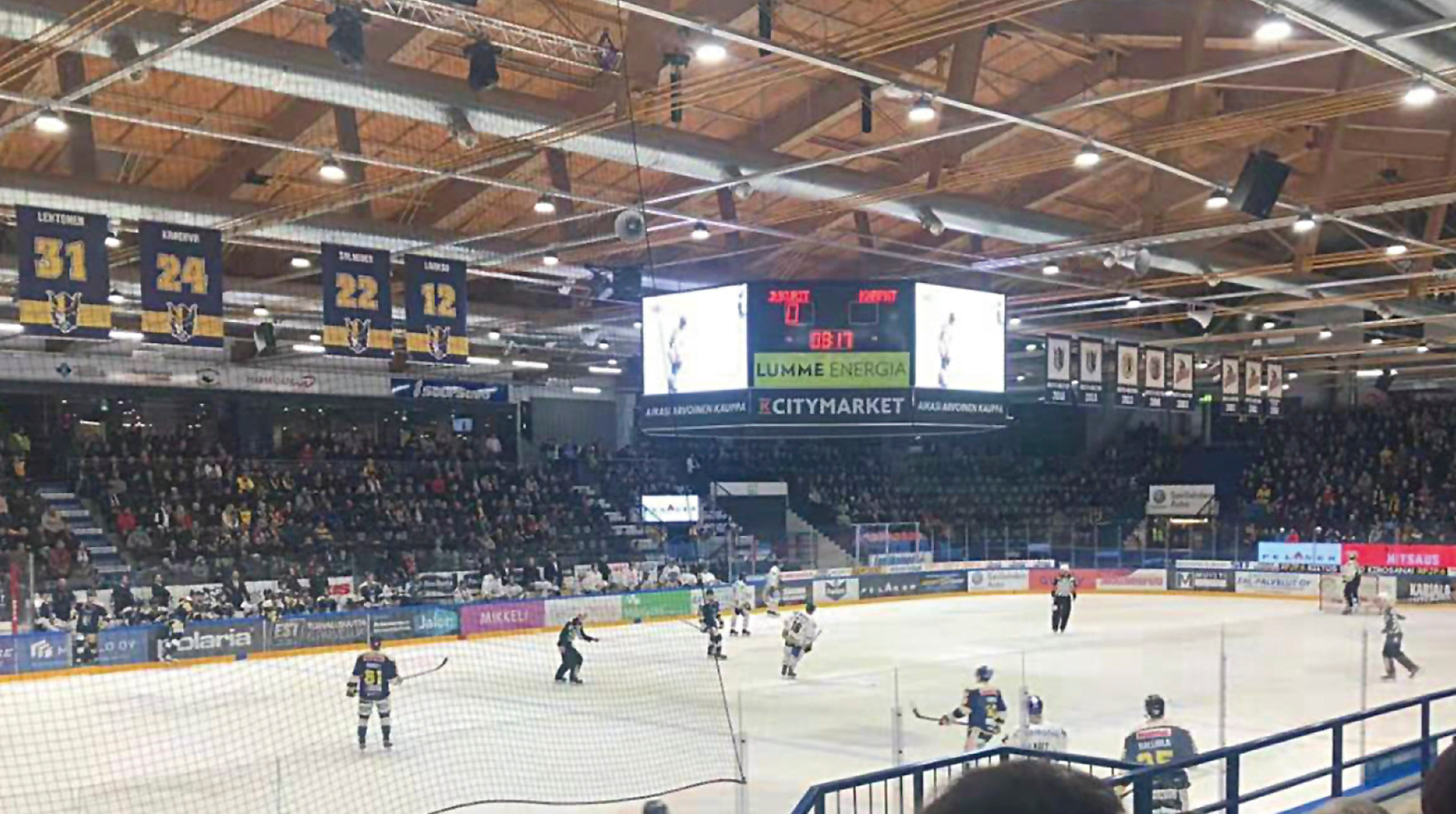

With global patent honeycomb design, ERVAN UFO can offer real low glare lighting output even at big power 200w according to precise optic control technology, best options for indoorsports hall application.

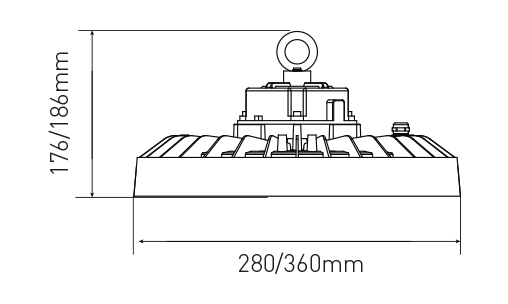

SizeWattageLumenEfficiencyBeam AngleCRICCTSDCMUGR

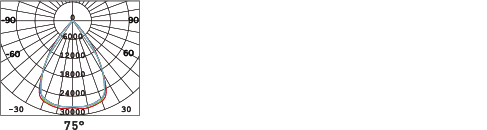

Ø280mm100W14000LM140lm/w75°804000K3<22
Ø280mm150W21000LM140lm/w75°804000K3<22
Ø360mm200W28000LM140lm/w75°804000K3<22



Name

Description

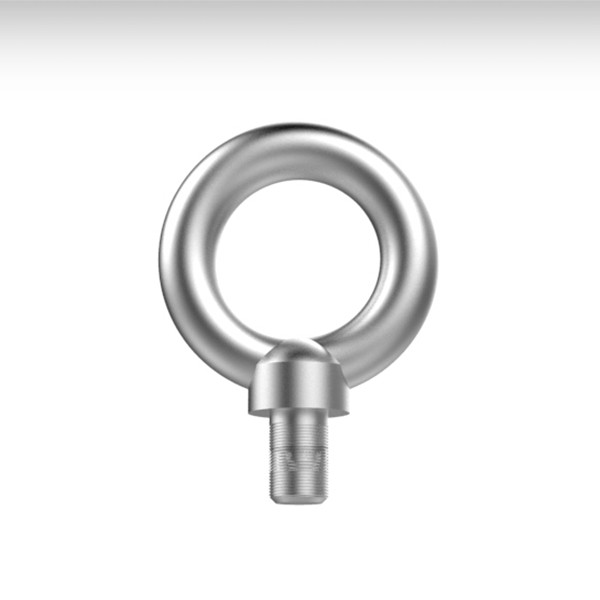

Loop hook

Loop hook

Stainless steel material; Used for suspending; 1pc/set

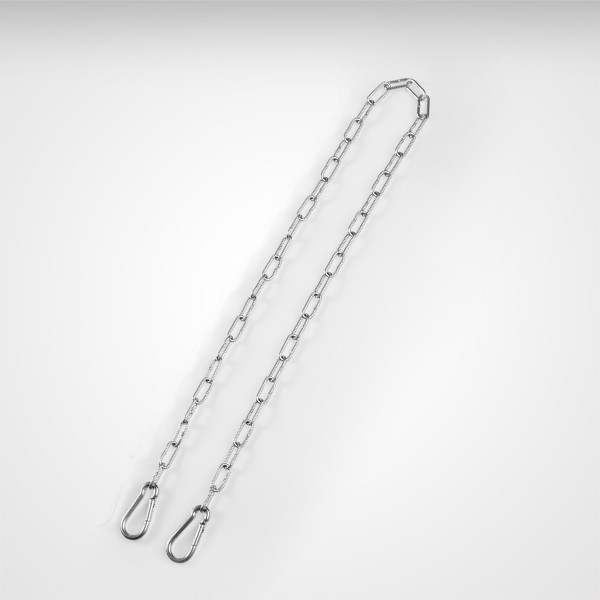

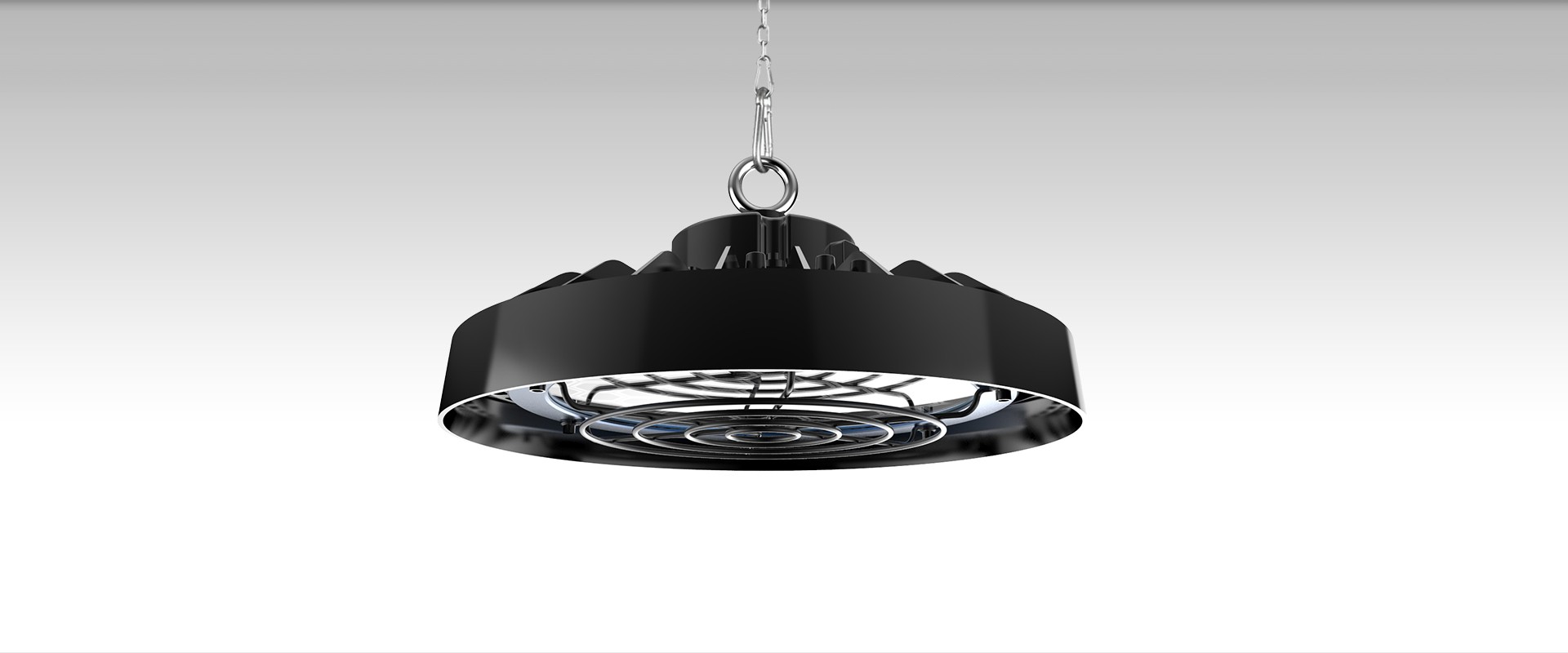

Suspension chain

Suspension chain

Stainless steel material; Used for suspending; 1pc/set

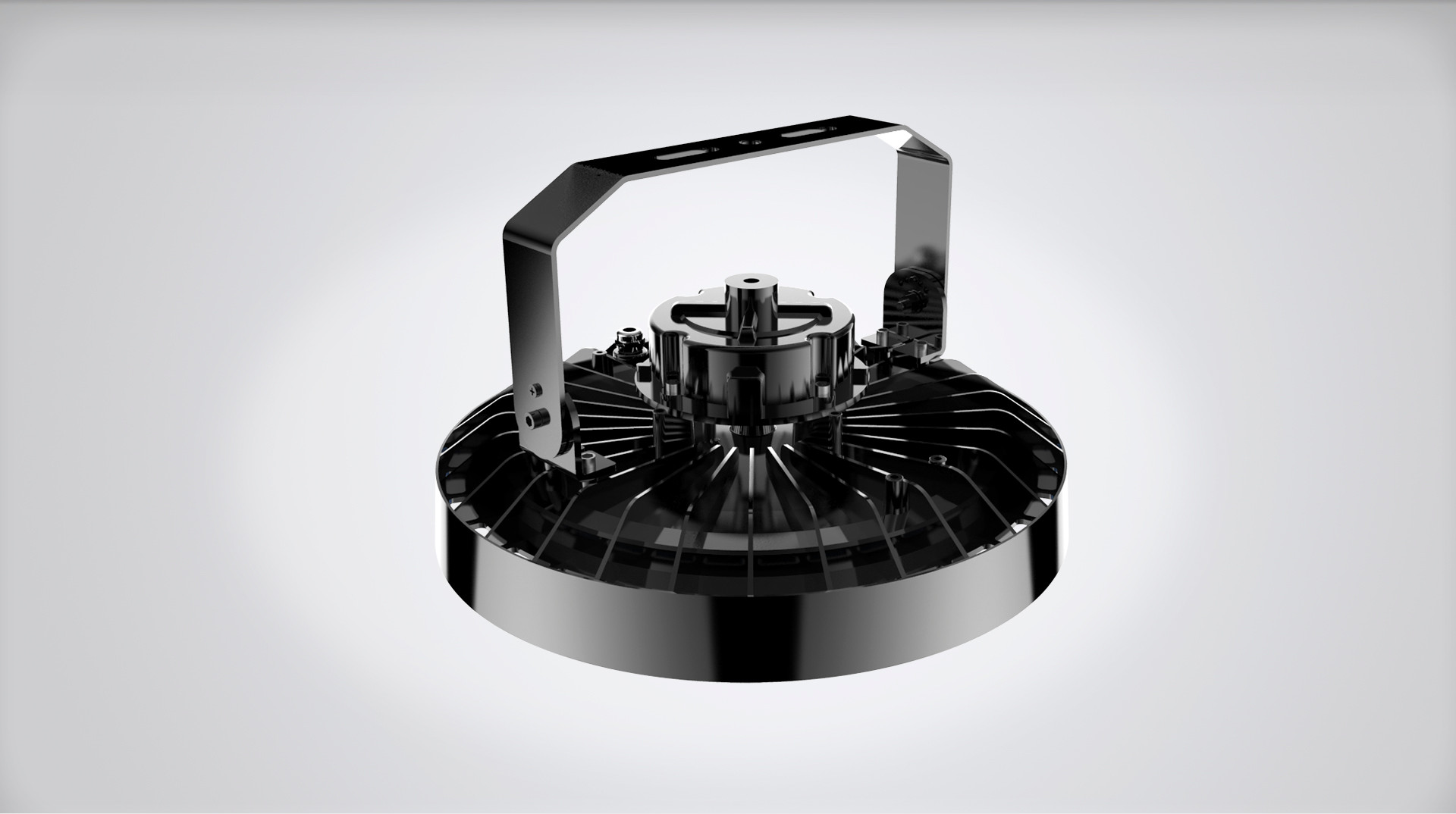

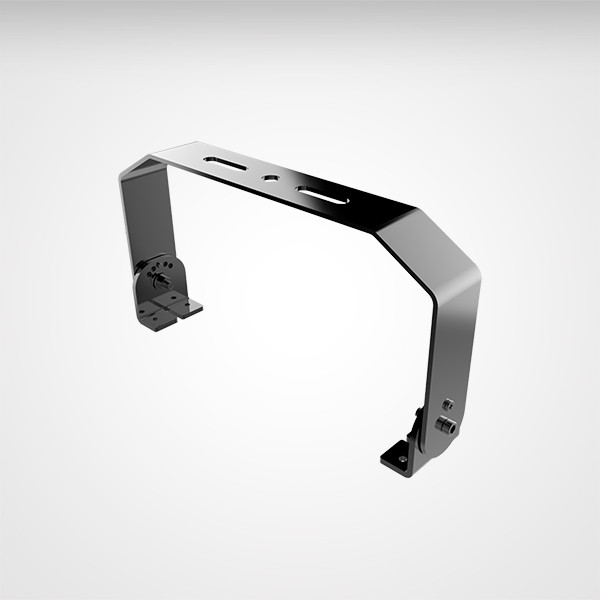

Surface mounting bracket

Surface mounting bracket

Steel material; Used for ceiling mounted; 1pc/set

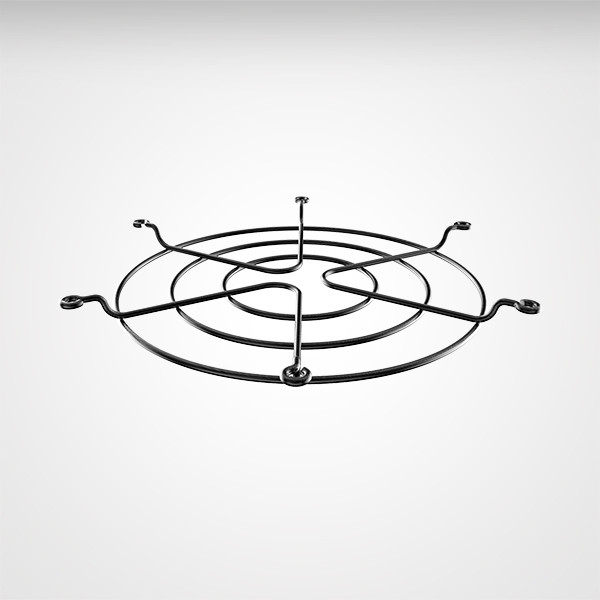

Steel grid

Steel grid

Steel material; Used for sports hall protection; 1pc/set

Structure Data

Input: AC100~240V 50/60Hz
Operation Temp: -30~50°C
Function: 1~10V DIM | DALI | SENSOR | Emergency
Flicker: Flicker free
Material: Aluminum
Installation: Ceiling mounted | Suspension
Protection: IP65 | IK08 | Ball impact resistance DIN18032



Download
Specification

SPEC-Sports Luminaire-H29 V1.pdf

Download
Manual

Manual-Sports Luminaire-H29 V1.pdf

Download
IES Files

H29-Sports IES.zip

Download
Integrating Sphere

H29.zip

Download
