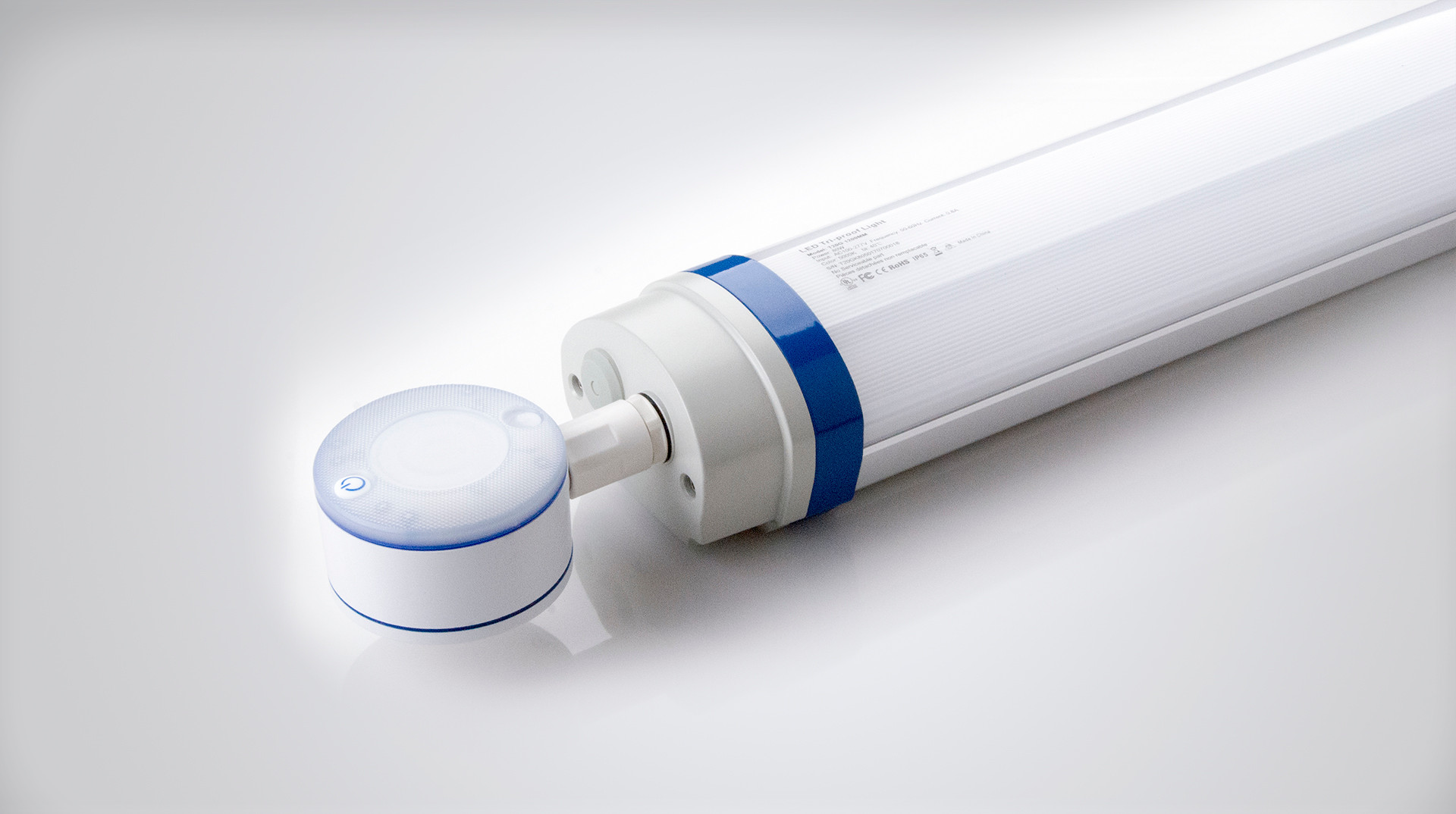

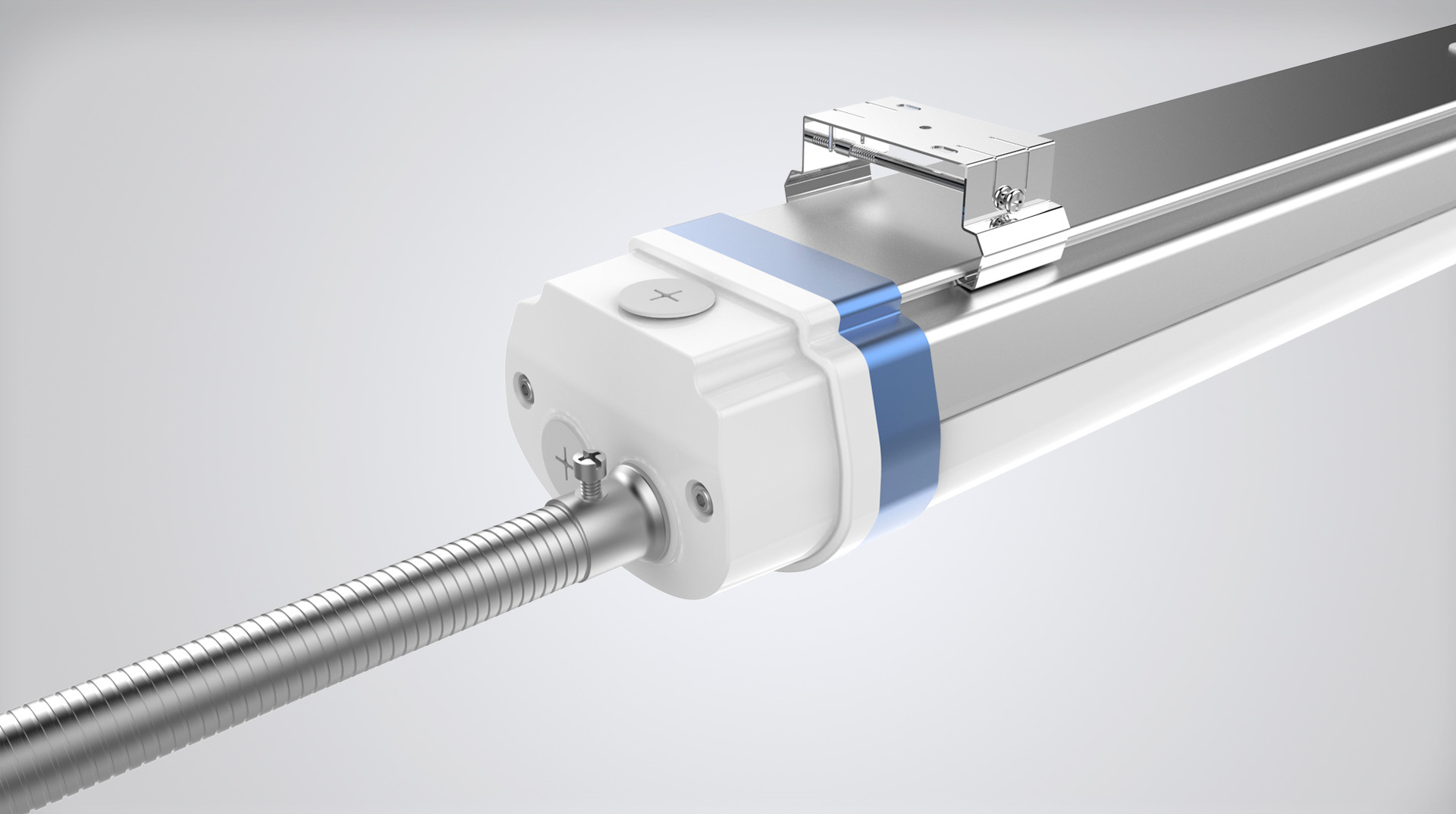

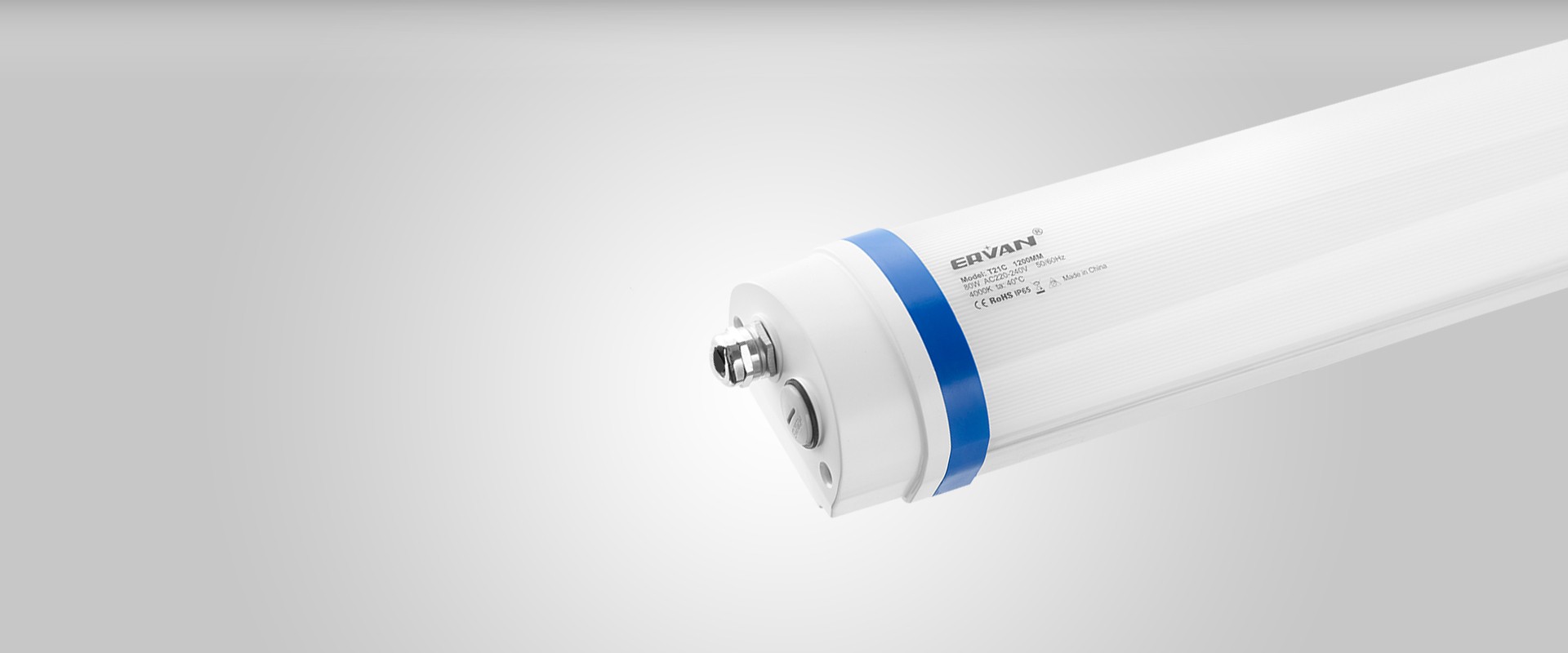

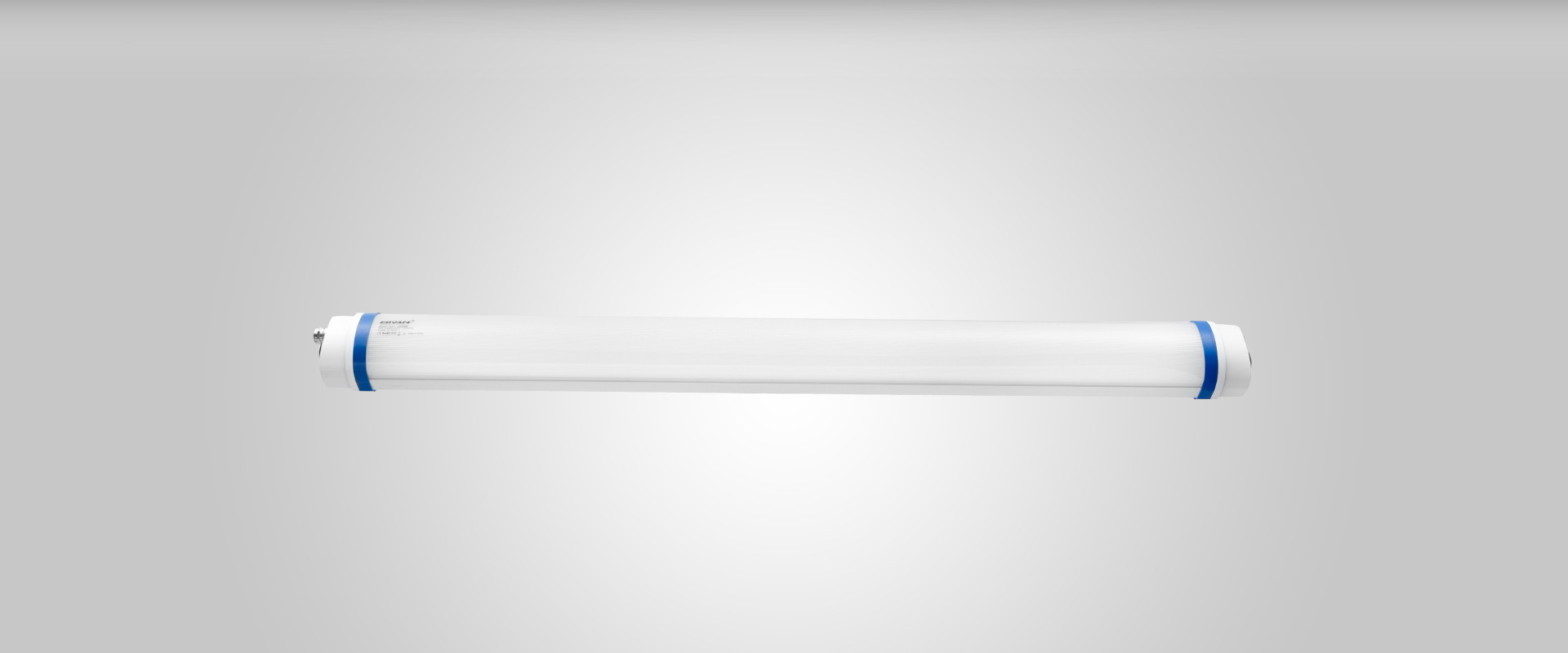

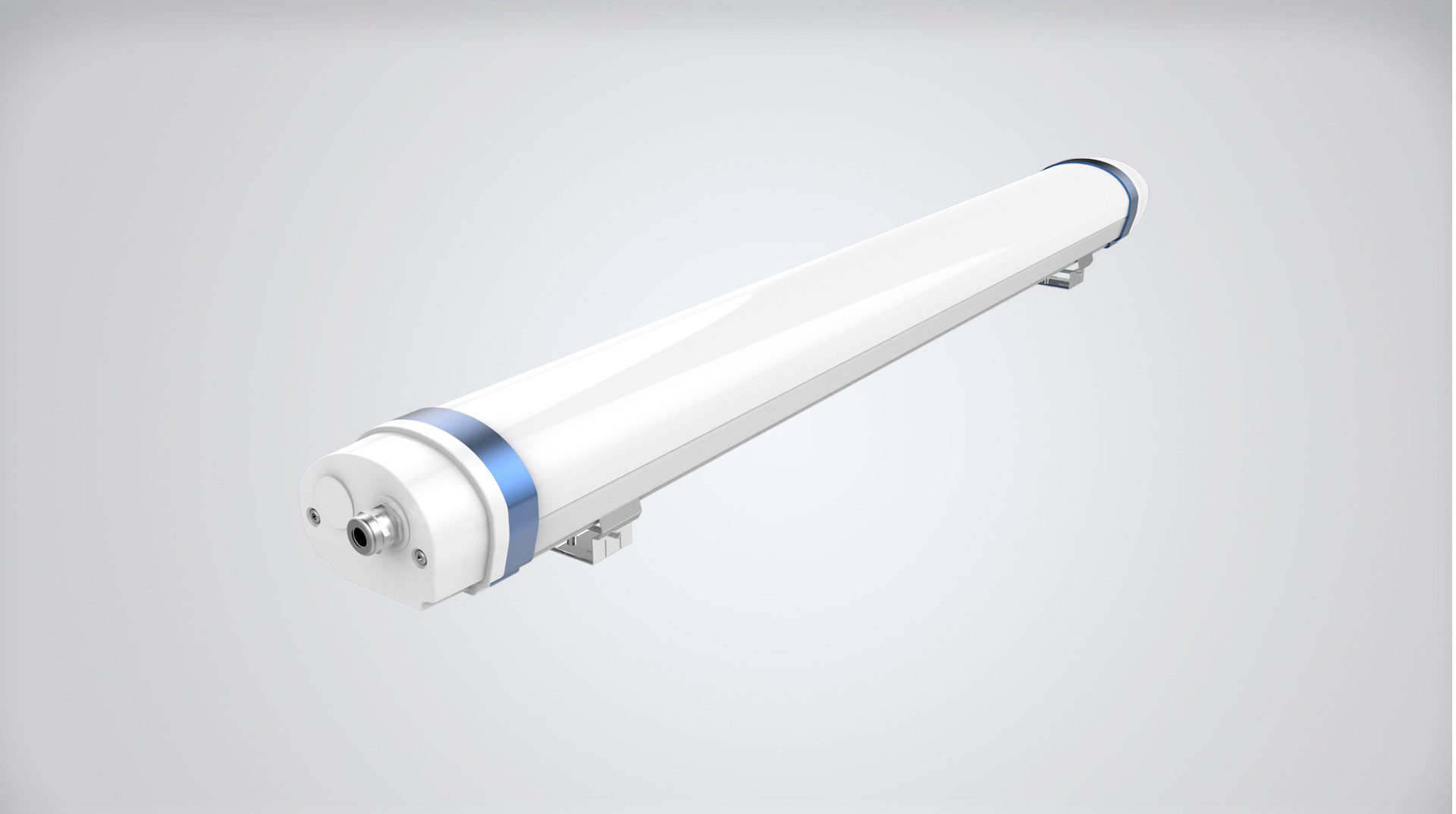

IP65 Hulk Indoor Sports Hall Luminaire

 T21



T21 is a robust and powerful luminaire designed specially for indoor sport halls complying with ball test in DIN 18032-3. T21 is able to adapt to different sports and different lighting requirements thanks to its uniform illumination and intelligent lighting management system.

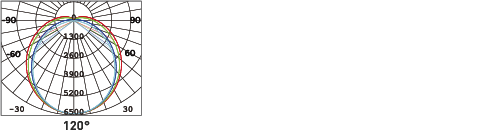

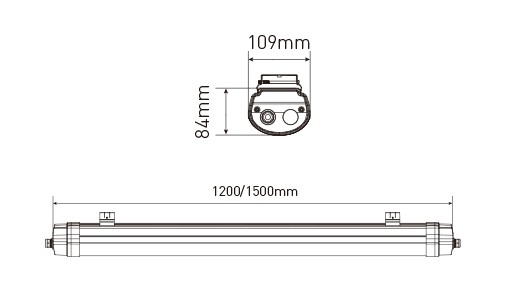

SizeWattageLumenEfficiencyBeam AngleCRICCTSDCMUGR
1200mm40W6400LM160lm/w804000K3IP65IK08
1500mm60W9600LM160lm/w804000K3IP65IK08
1500mm80W12800LM160lm/w804000K3IP65

IK08

1500mm100W16000LM160lm/w804000K3IP65IK08
1500mm120W19200LM160lm/w804000K3IP65IK08
1500mm150W24000LM160lm/w804000K3IP65IK08




Name

Description

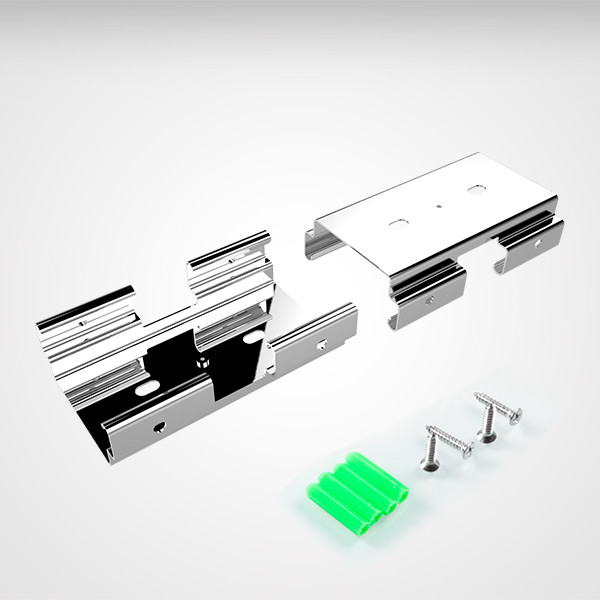

Surface mounting brackets

Surface mounting brackets

Stainless steel material; Used for the absorption of suspending and Ceiling Mounted; 2pcs/set

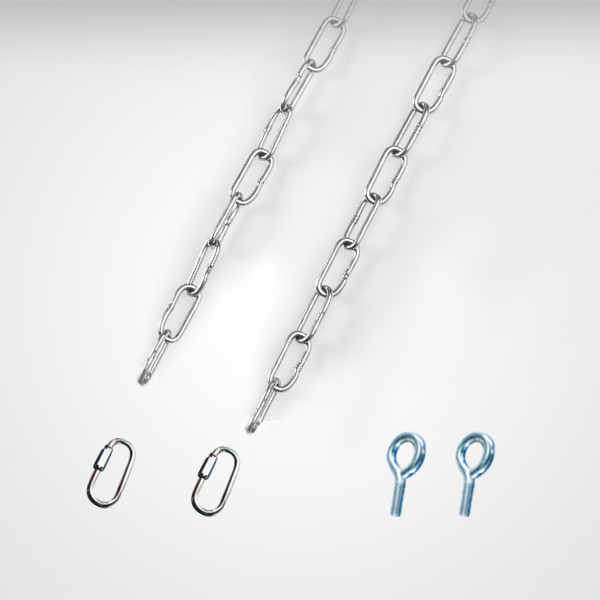

Suspension kits

Suspension kits

Stainless steel material; Used for the absorption of suspending; 2pcs/set

Structure Data

Input: AC220~240V 50/60Hz
Wiring: 5 wires through available
Operation Temp: -20~40°C
Function: 1~10V DIM | DALI | SENSOR | Emergency
Flicker: Flicker free
Material: PC+Aluminum

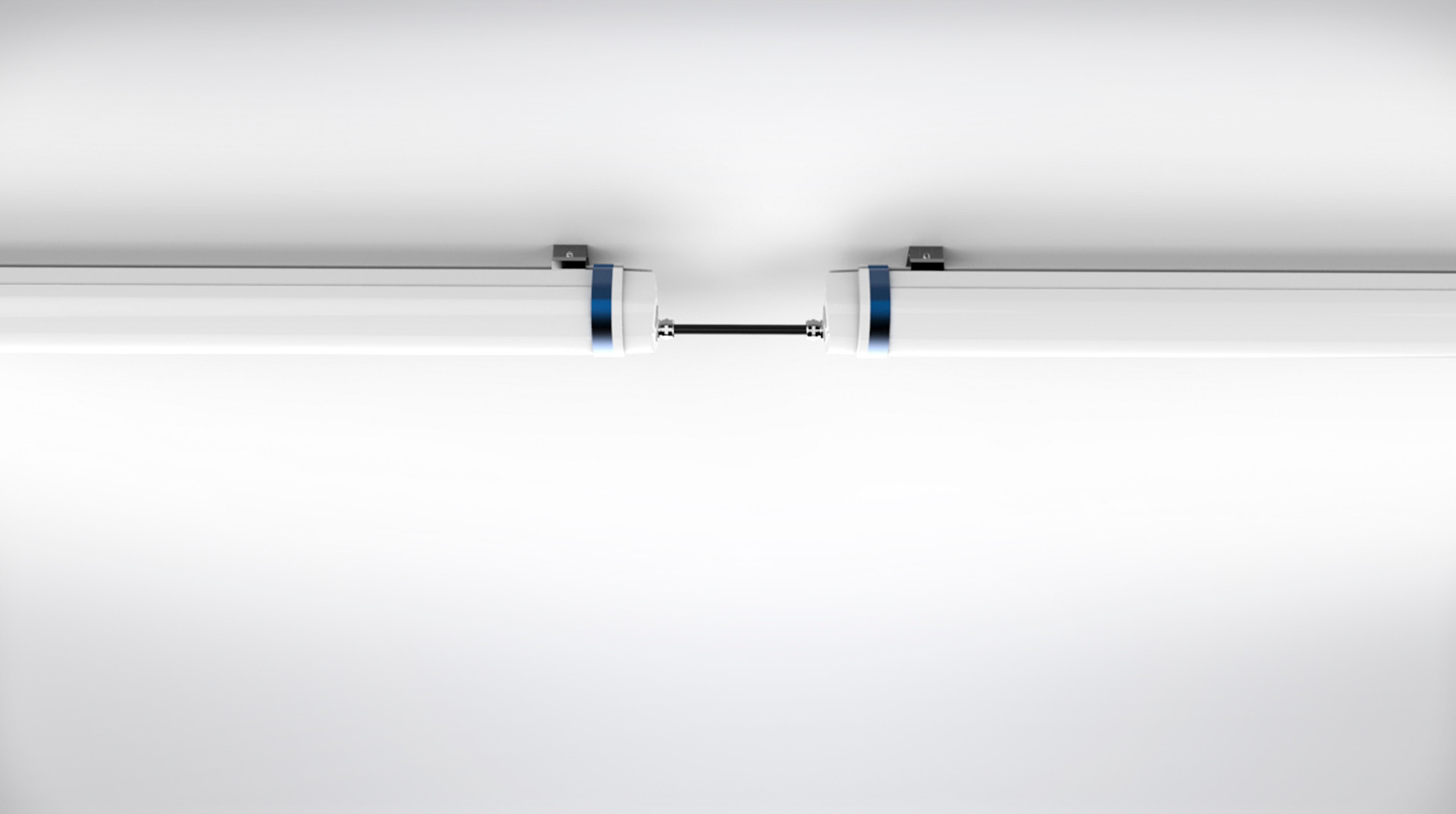

Installation: Ceiling mounted | Suspension | Cable wire
Protection: IP65 | Ball impact resistance DIN18032
Terminal: 5x1.5mm²/5x2.5mm² push



Download
Manual

Manual-Sports Luminaire-T21A V2.pdf

Download
IES Files

T21 IES.zip

Download
Integrating Sphere

T21.zip

Download
Specification

SPEC-T21-EU V7(2).pdf

Download
