UNILINE44

L25

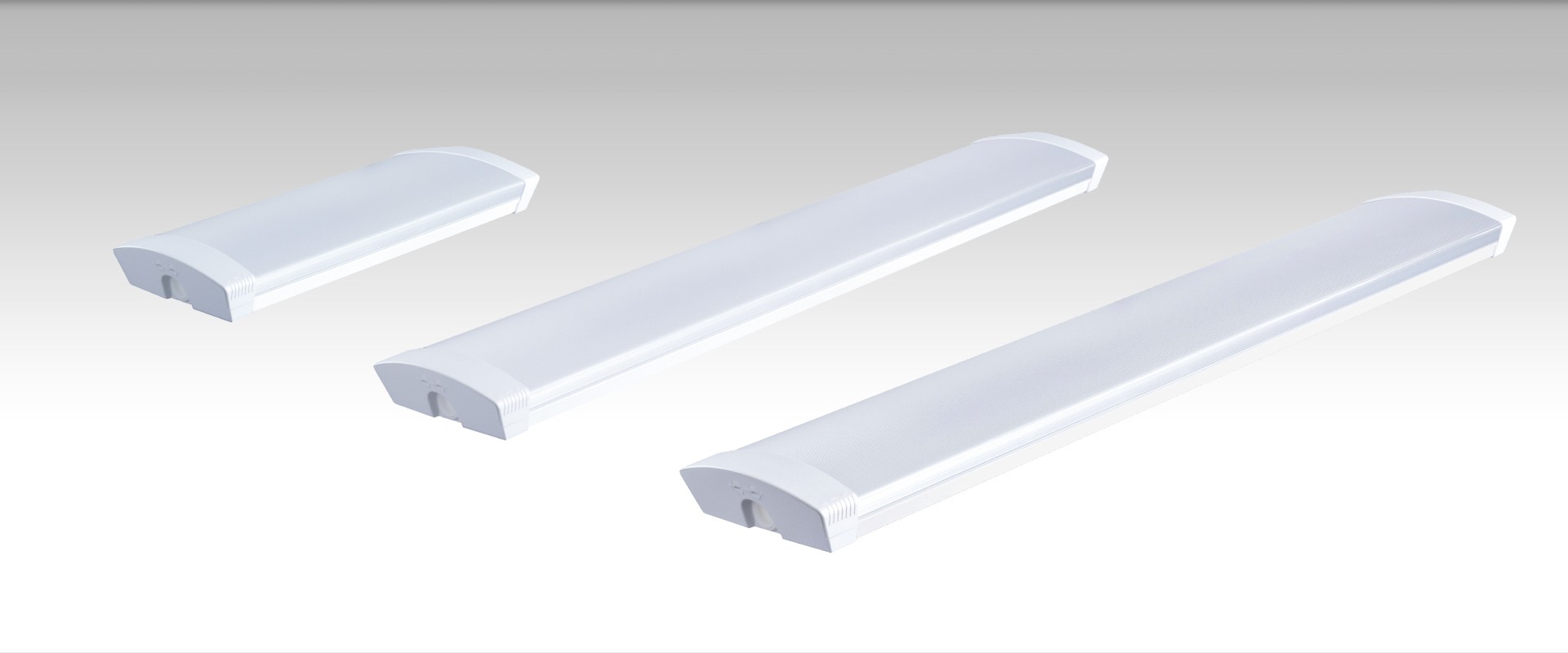

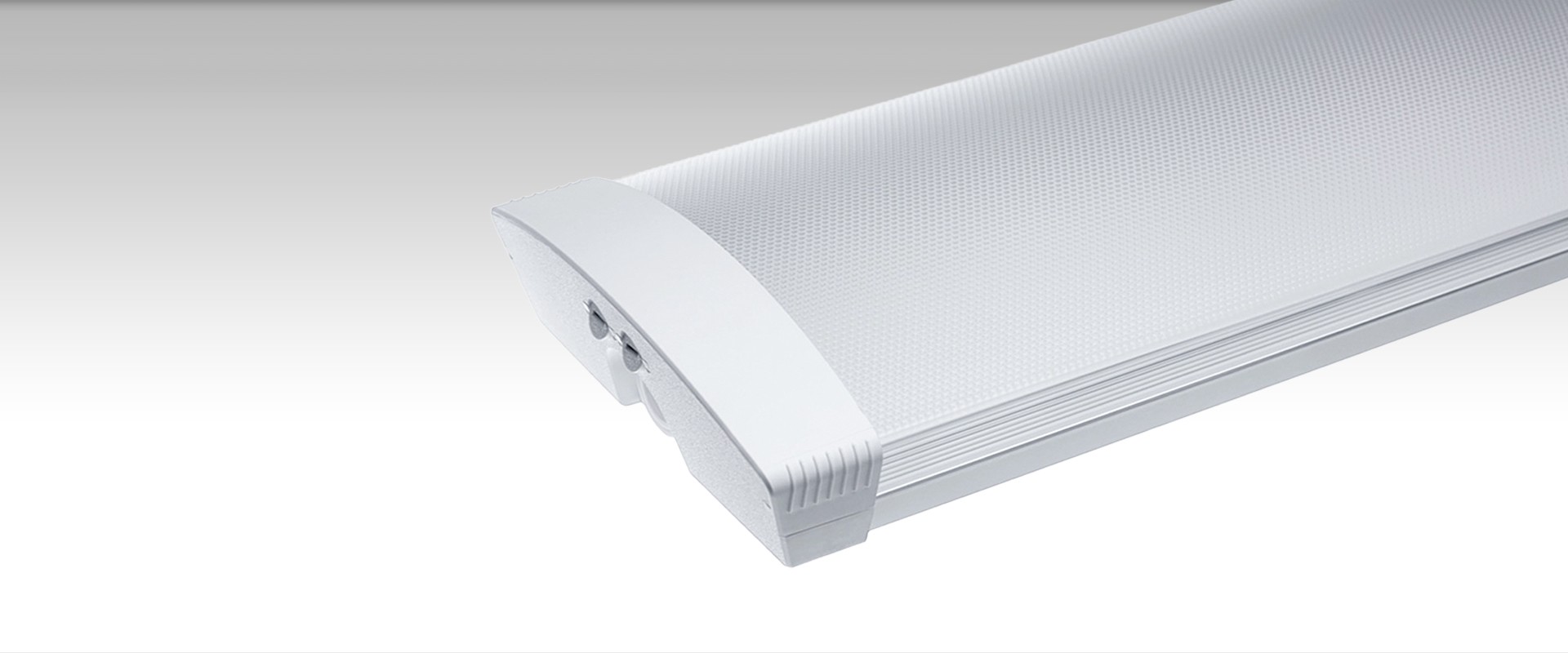

ERVAN linear luminaire L25 is a flexible and slim luminaire with IP44 for multiple indoor application such as parking garages,schools, offices, culverts, laundry rooms, kitchens and industrial buildings. . It is suitable for surface mounted or wall mounted, rails bracket mounting, horizontal wires and wire suspension..





SizeWattageLumenEfficiencyCRICCTUGRSDCM
595mm11/13/16/20W1650~3000LM150lm/w804000K223
1195mm23/29/35/40W3600~6400LM160lm/w804000K223
1495mm26/33/40/47W4200~7500LM160lm/w804000K223


Name

Description

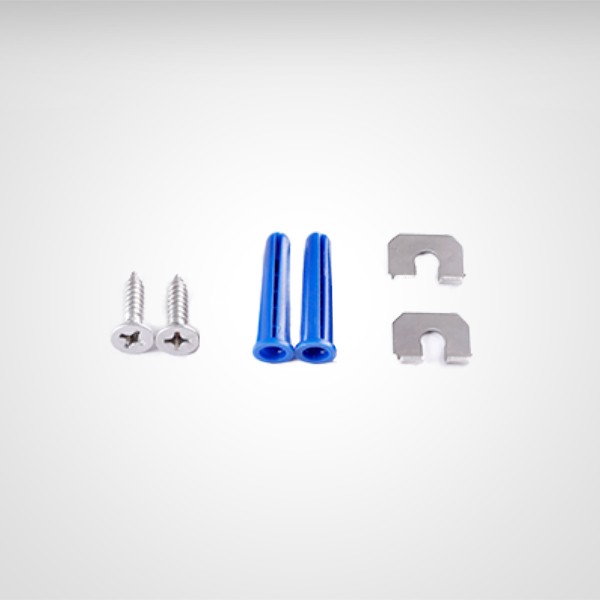

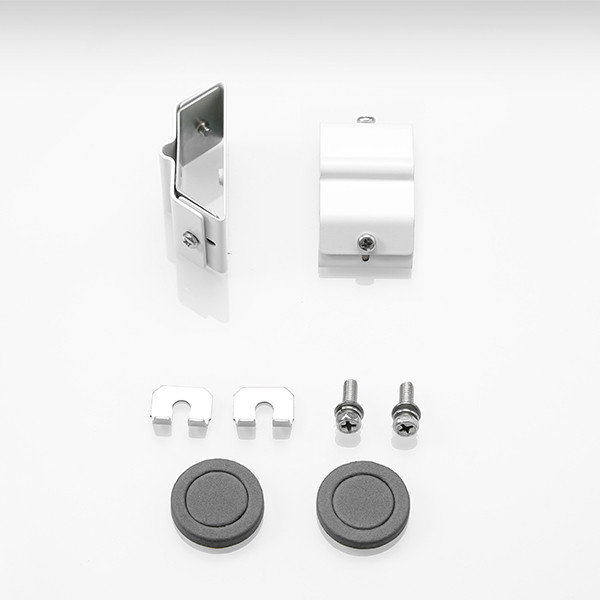

Surface mounting Screws

Surface mounting Screws

Stainless steel material; Used for the absorption of ceiling Mounted

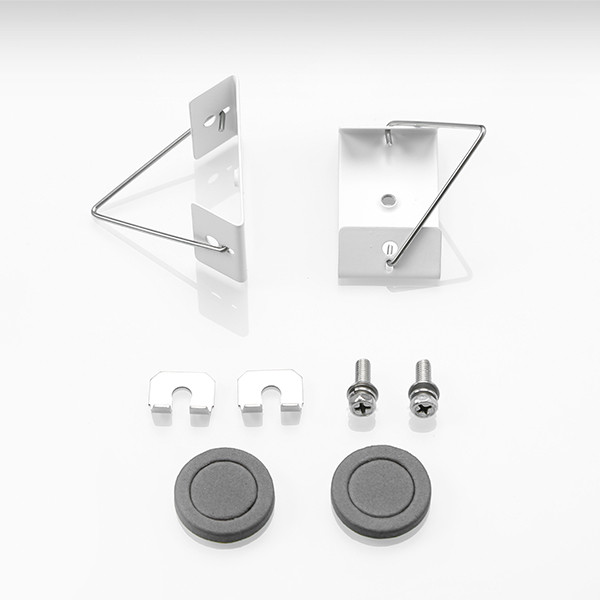

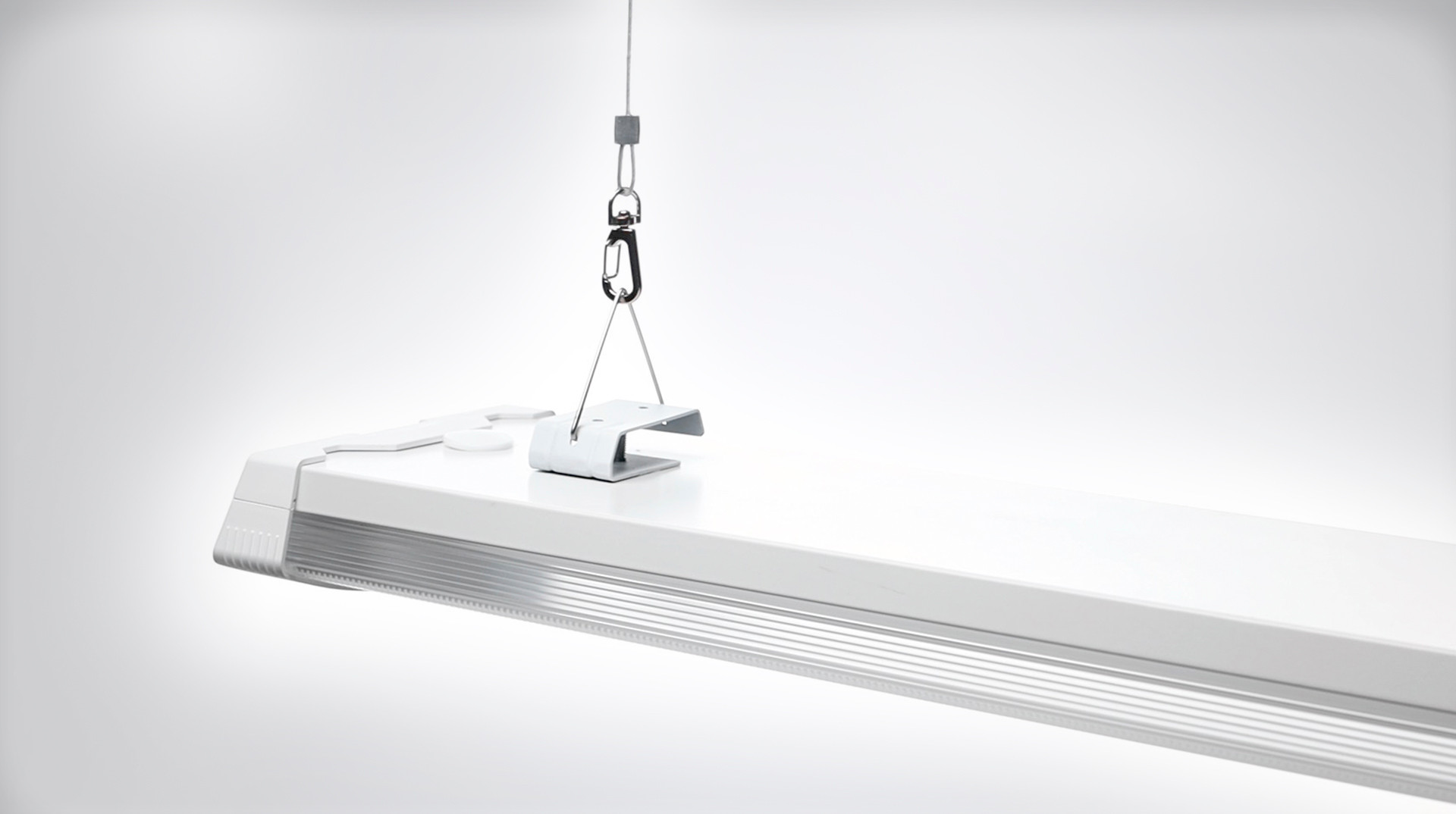

Suspension

Suspension

Stainless steel material; Used for the absorption of suspending

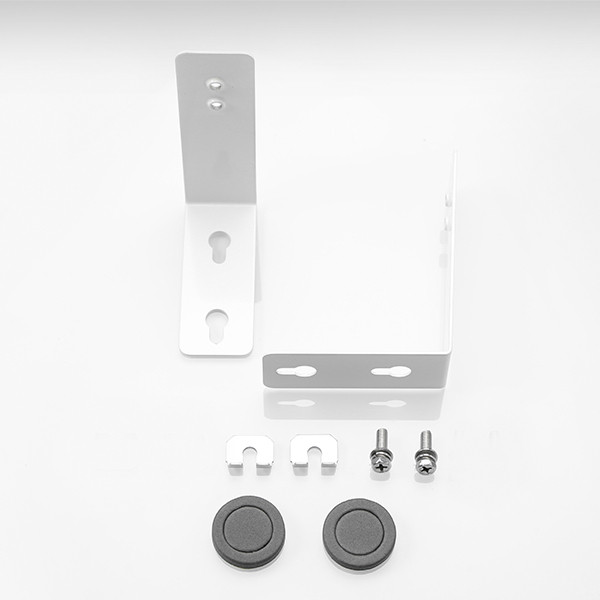

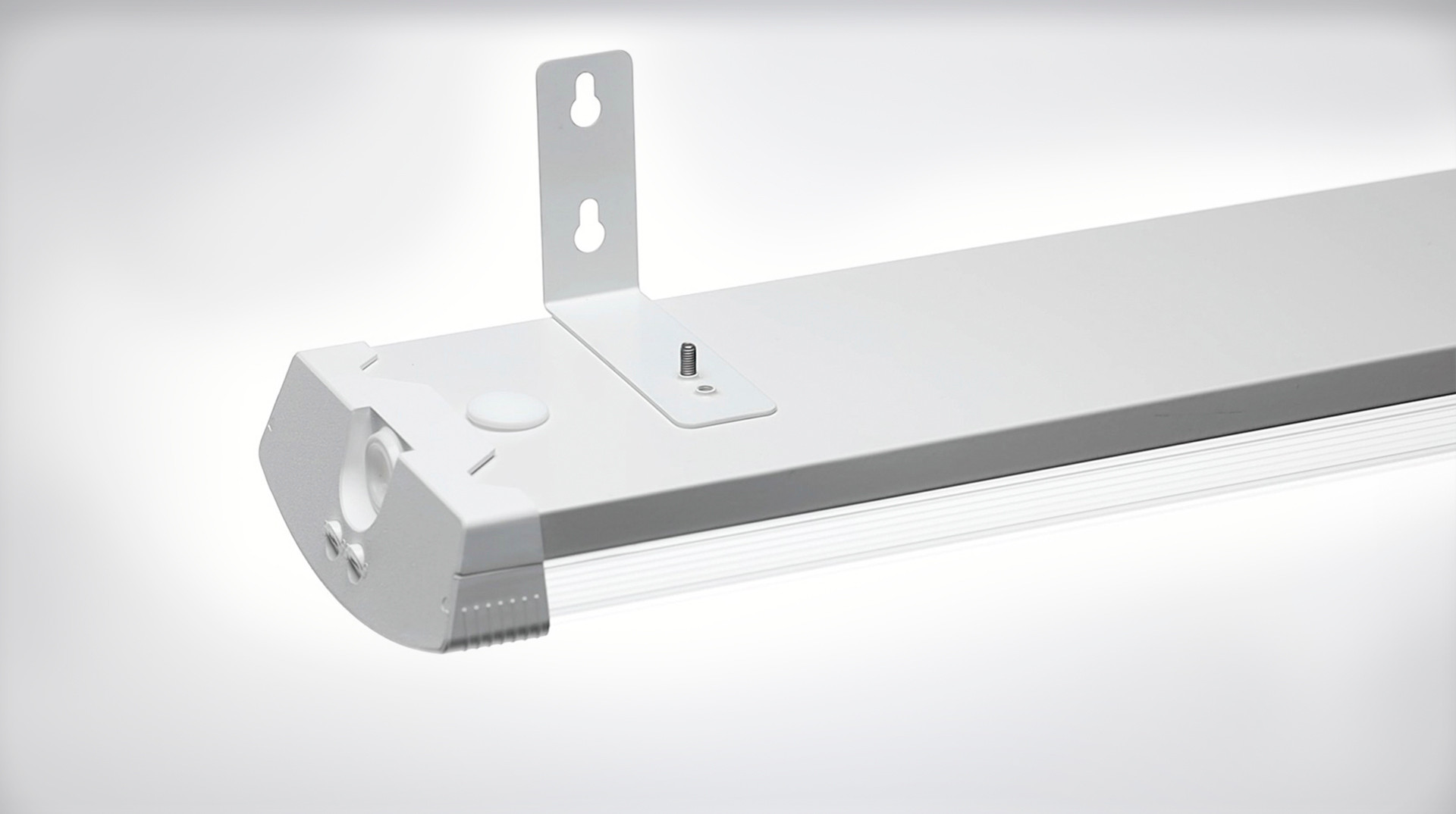

Wall mounting clips

Wall mounting clips

Stainless steel material; Used for the absorption of wall mounting

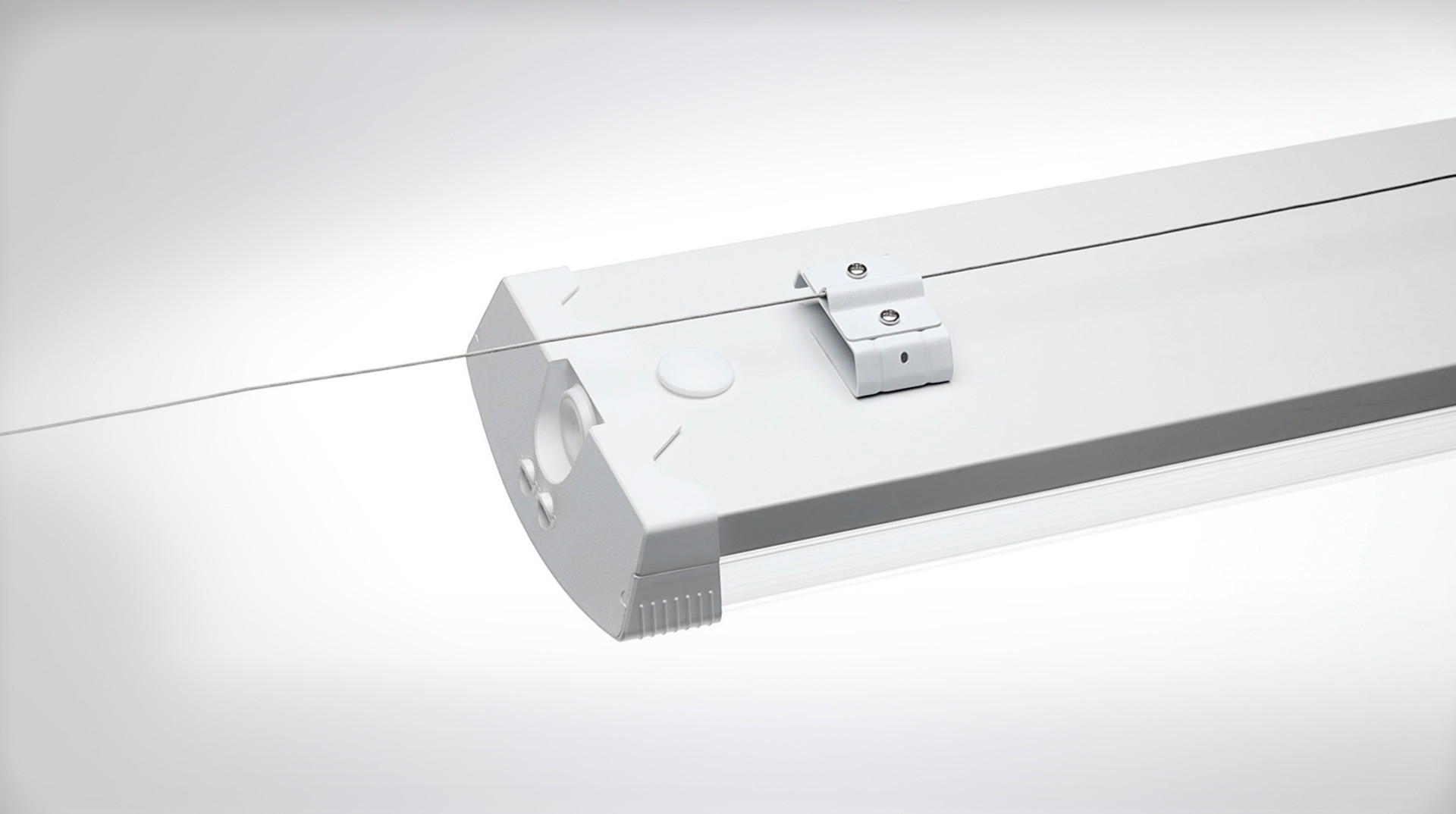

Horizontal cable suspension

Horizontal cable suspension

Stainless steel material; Used for the absorption of horizontal cable suspension

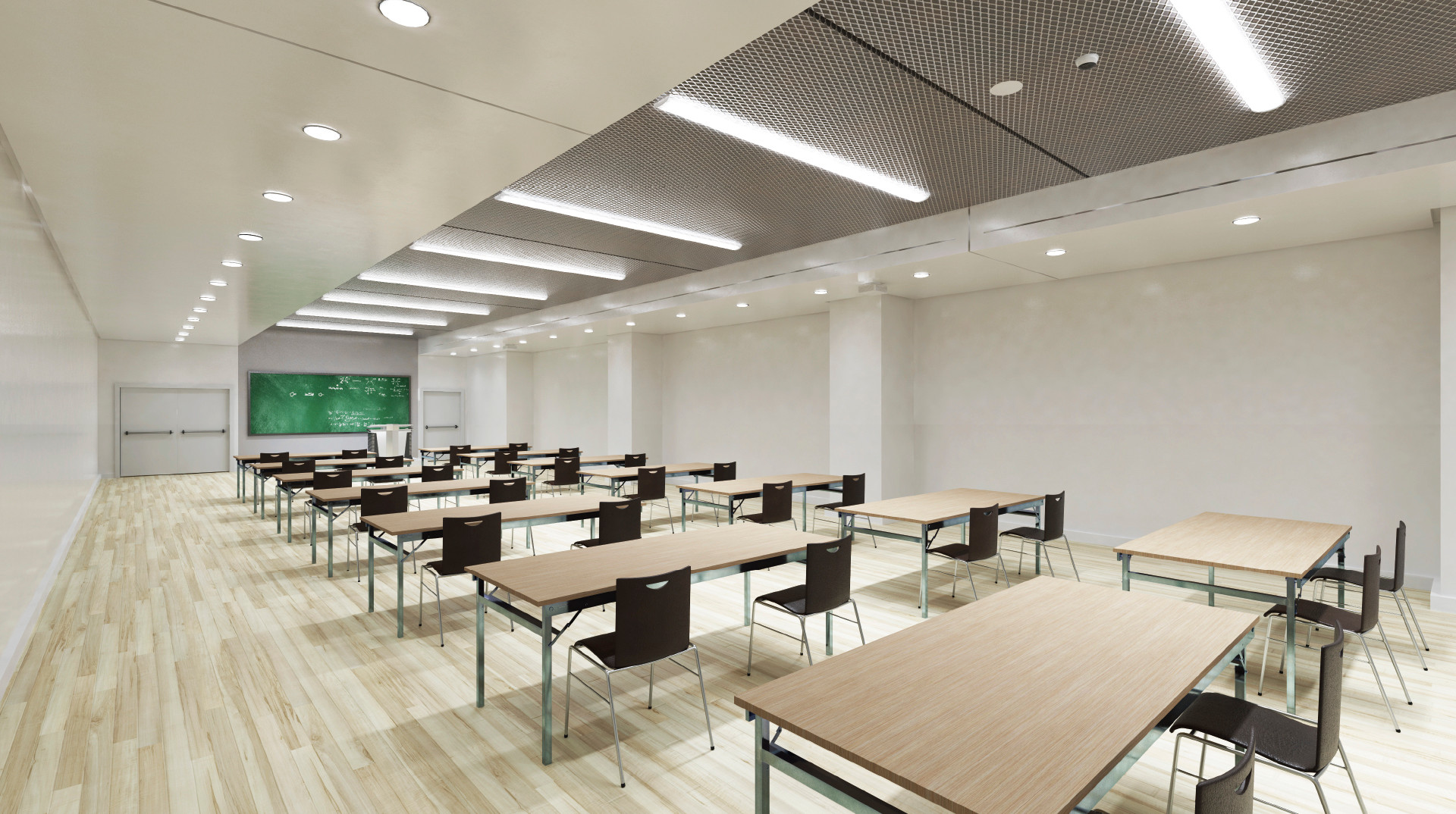

For a lot of application such as parking garages,classrooms, offices, culverts, laundry rooms, kitchens and industrial buildings, it’s necessary to save the energy when there is absence of human to minimize the cost. ERVAN could perfectly offer different intelligent solutions according to the application with smart sensors and wireless technology.

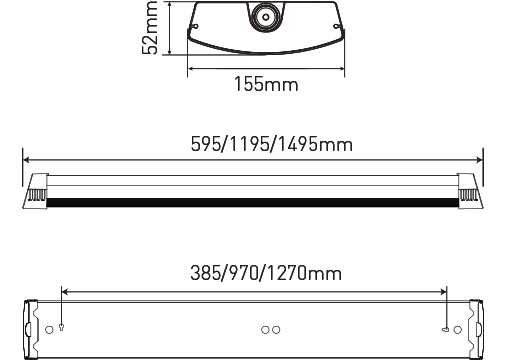

Structure Data

Input: AC220~240V 50/60Hz
Wiring: 5 wires through
Operation Temp: -20~40℃
Function: DALI PUSH Dim | 1-10V Dim | SENSOR | Emergency
Flicker: Flicker free

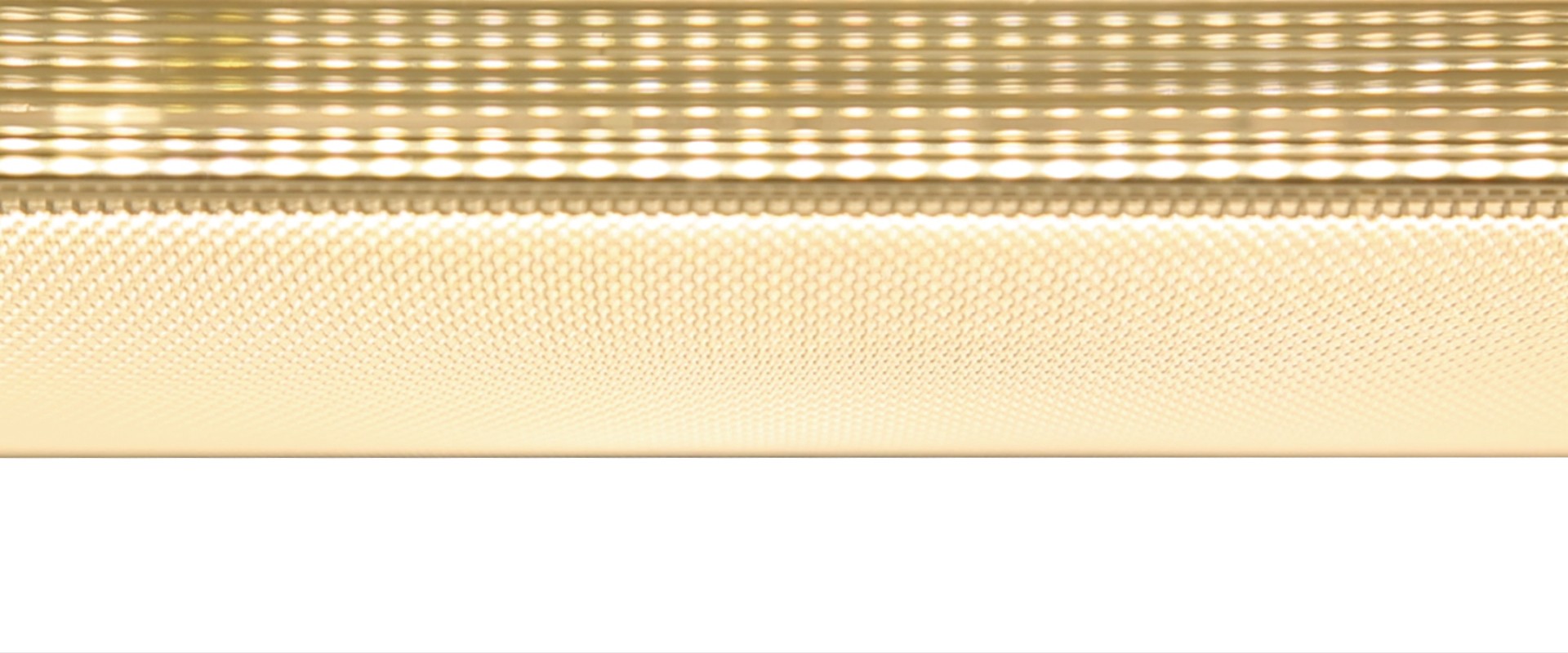

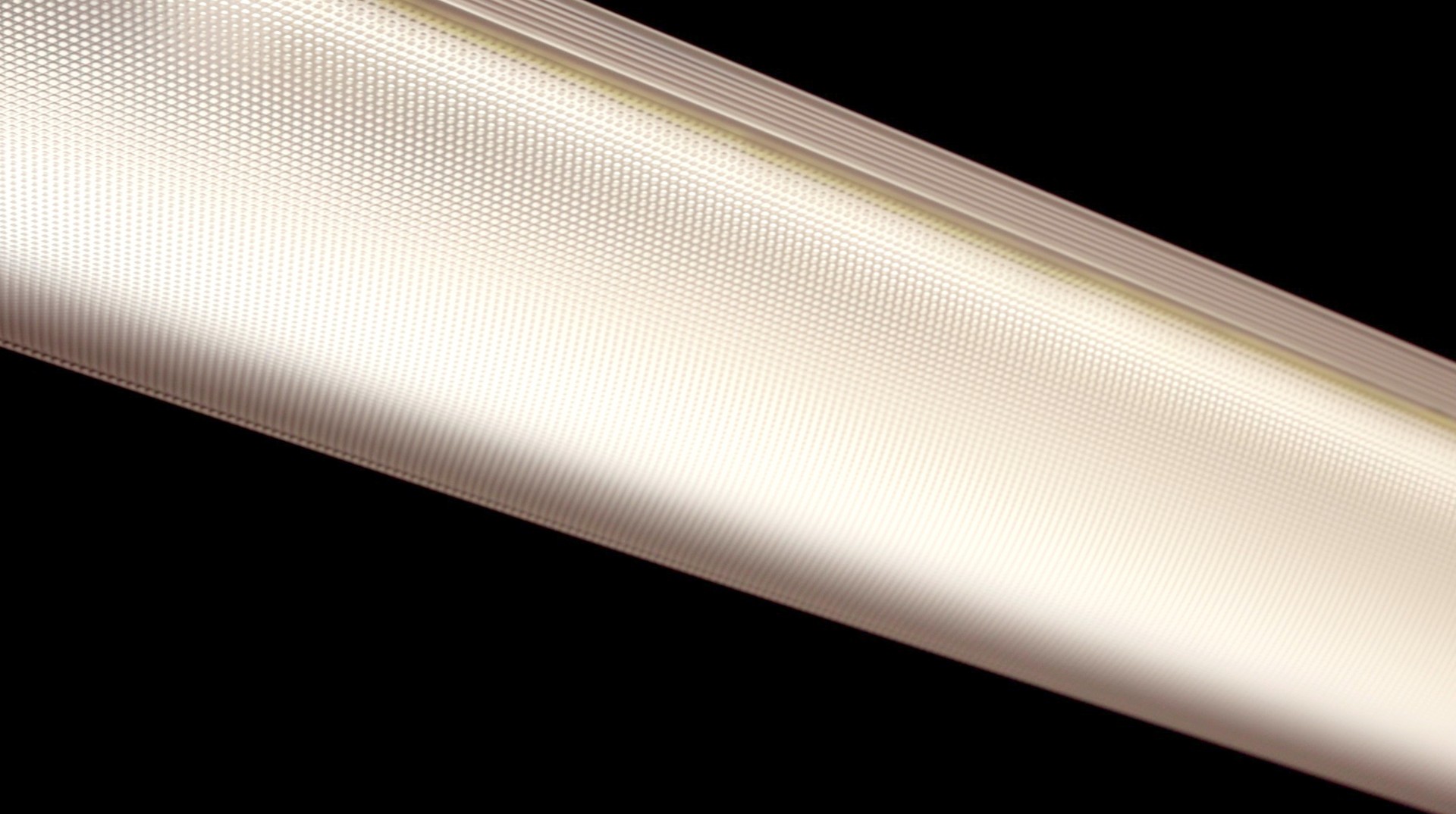

Material: White coating metal+PMMA prismatic diffuser
Installation: Surface mounted; Cable wire; Wire suspension; Wall mounted
Protection: IP44/IK07

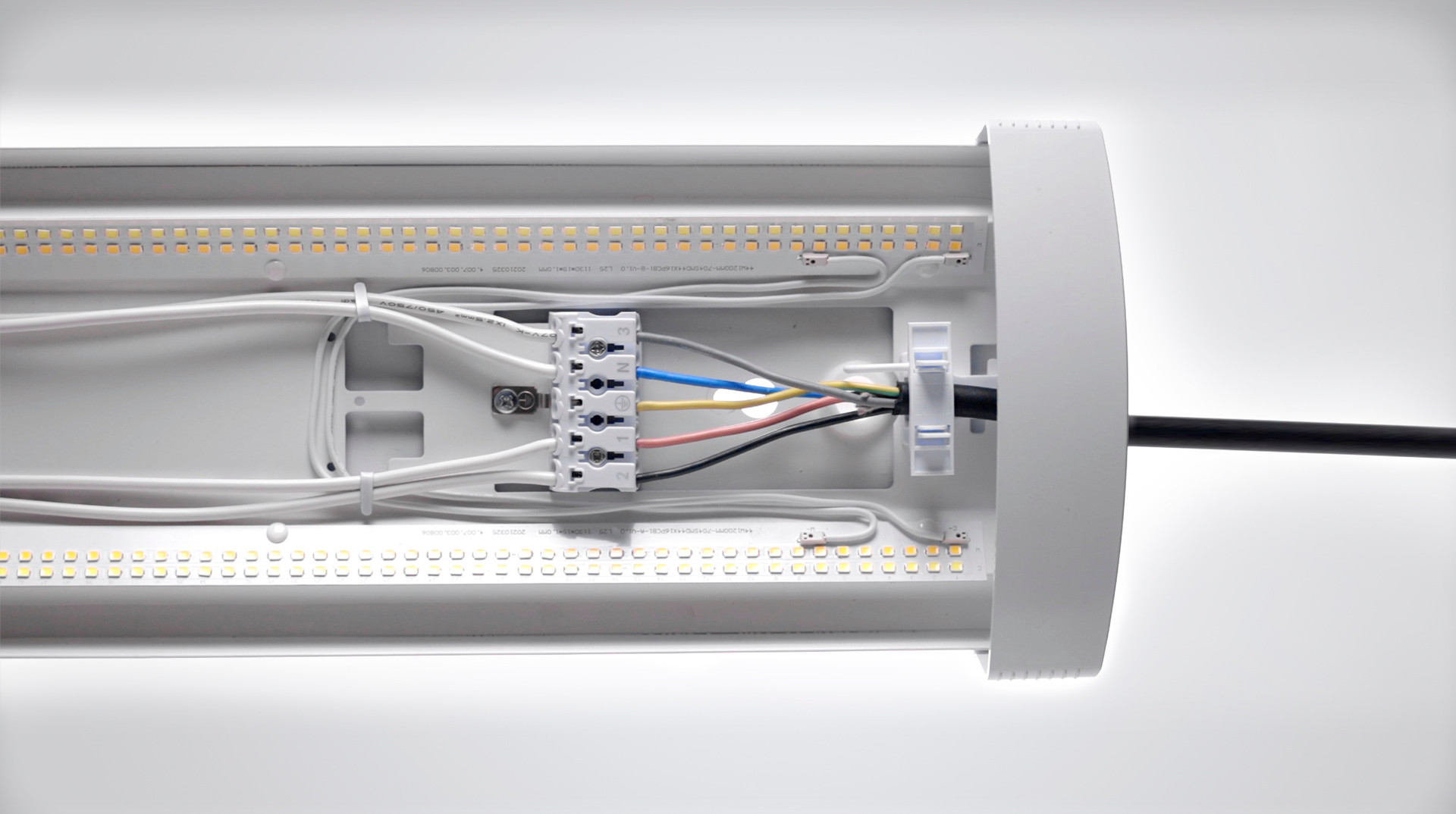

Terminal: 5x2.5mm² push-in terminal

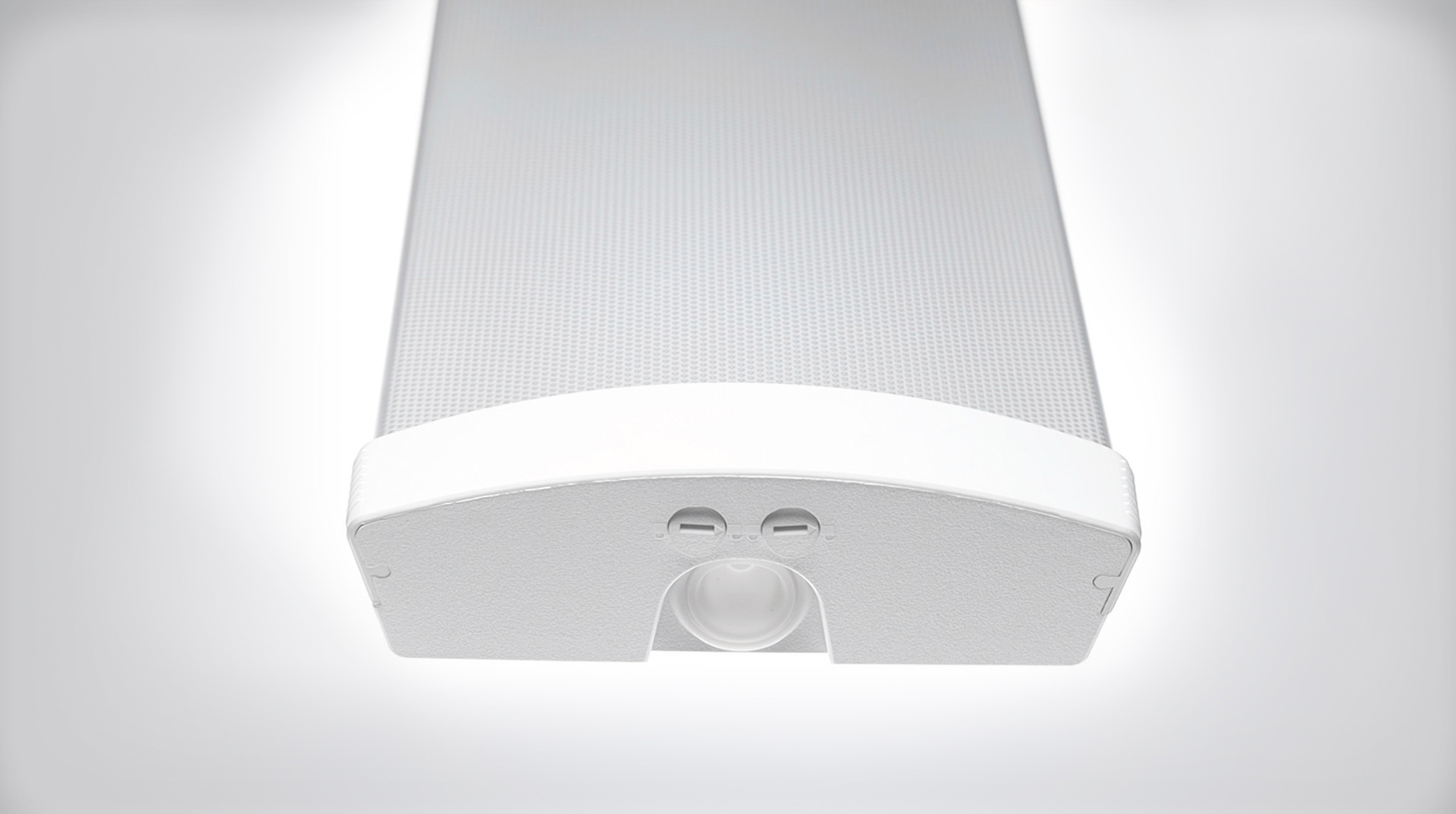

Connection: One cable entry at the endcap and two top entries at the back of the luminaire



Download
Manual

Manual-LED Industrial Line Luminaire-L25 V1.pdf

Download
Specification

SPEC-LED Industrial Line Luminaire-L25 V3.pdf

Download
IES Files

L25IES.rar

Download
Integrating Sphere

L25- Integrating Sphere.rar

Download
