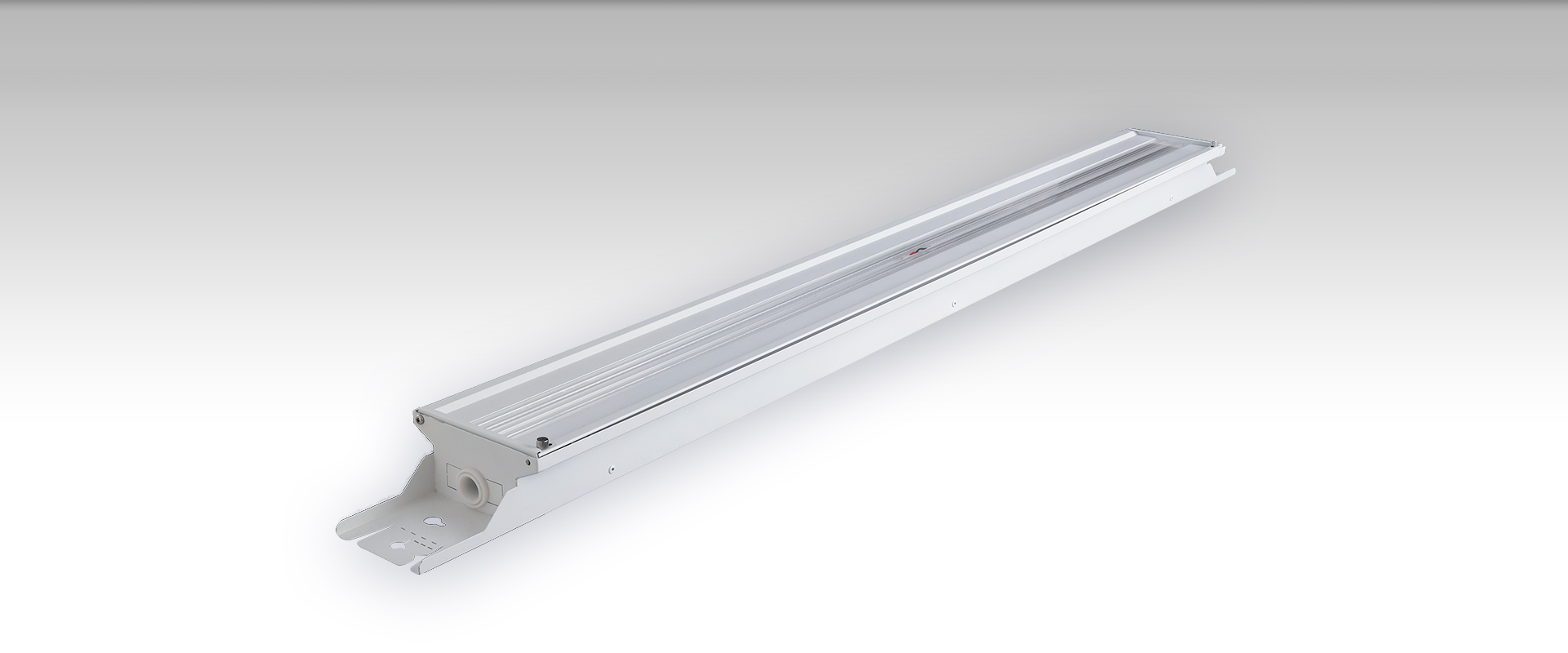

LED Industrial Line Luminaire

L15A

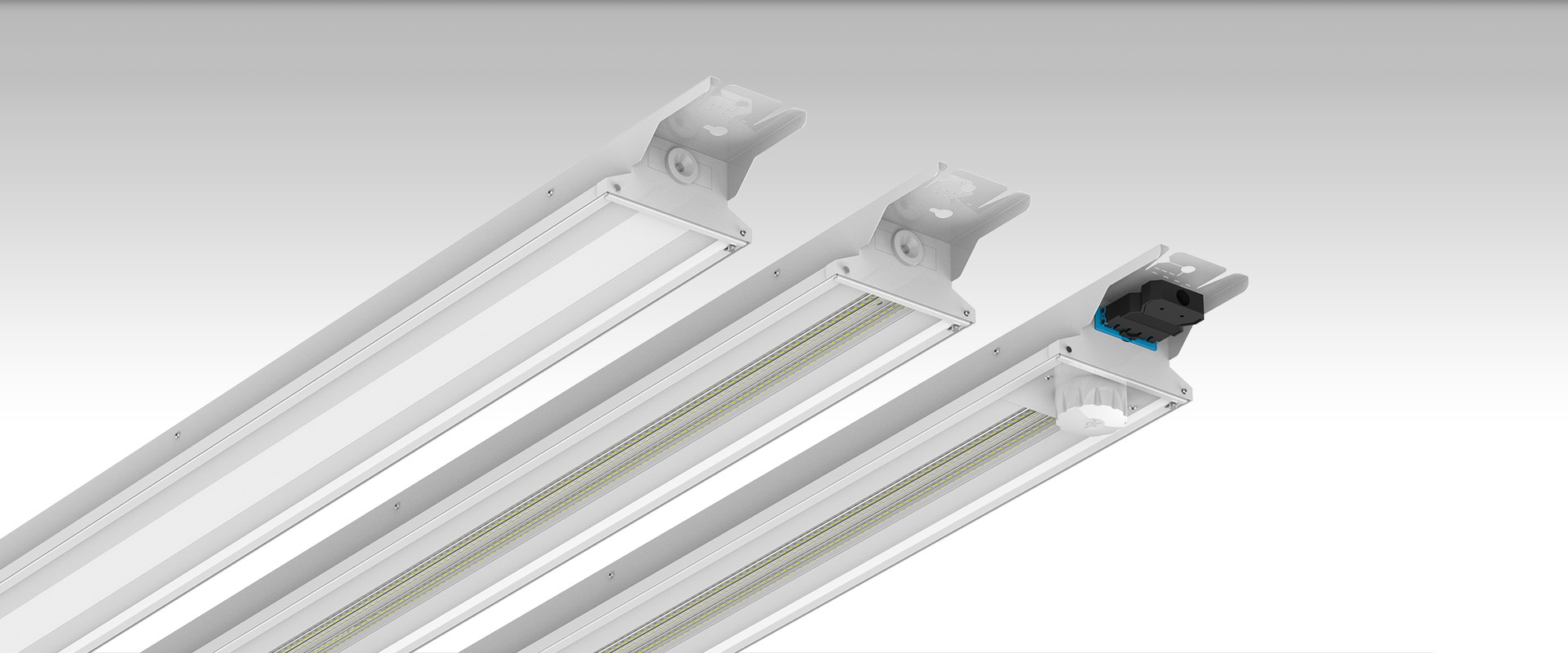

L15 Industrial line luminaire is designed with flexible function and accurate light distribution. From narrow to wide beam angle options fits for different height of installation from 4~20 meters, plug and play sensor and DALI funcion makes it smarter and more energy saving, and the various installation ways such as surface mounting, horizontal wiring hook, LED module and driver exchangeable makes it a powerful industrial products.




SizeWattageLumenEfficiencyBeam AngleCRICCTSDCM
1250mm60W10200LM170lm/w30°/60°/90°/105°/Prismatic/Bat wing804000K3
1250mm80W13600LM170lm/w30°/60°/90°/105°/Prismatic/Batwing804000K3
1550mm80W13600LM170lm/w30°/60°/90°/105°/Prismatic/Batwing804000K3
1550mm100W17000LM170lm/w30°/60°/90°/105°/Prismatic/Batwing804000K3

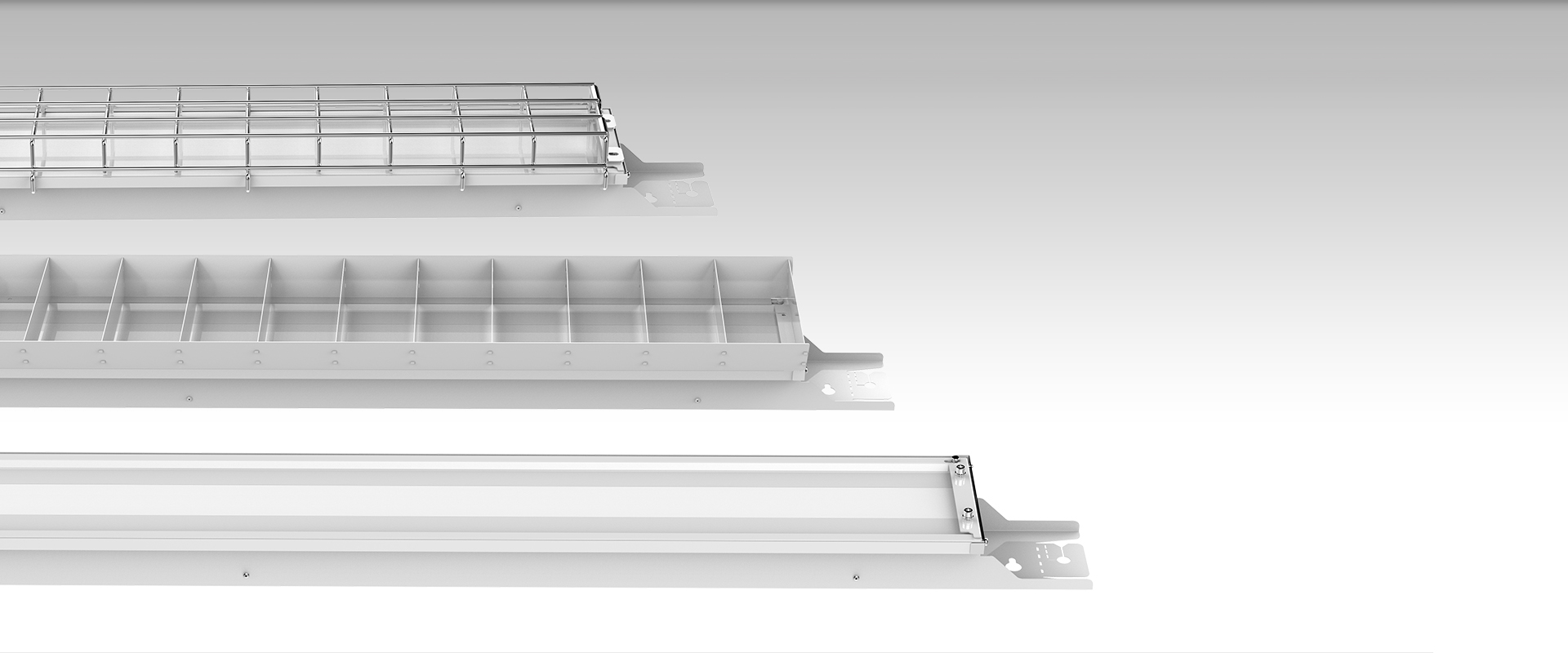

Name

Description

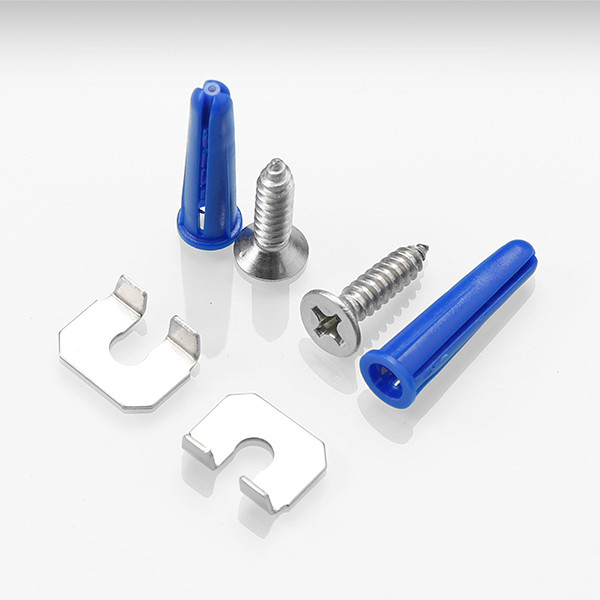

Surface mounting kits

Surface mounting kits

Stainless steel material&PC; Used for the absorption of Ceiling Mounted; 2pcs/set

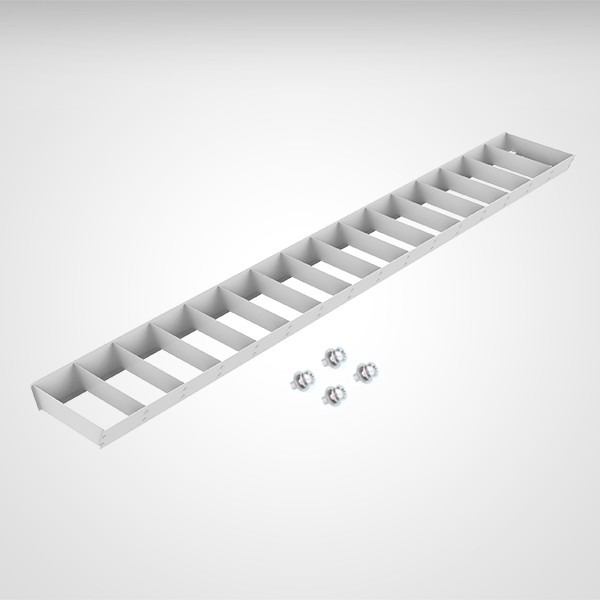

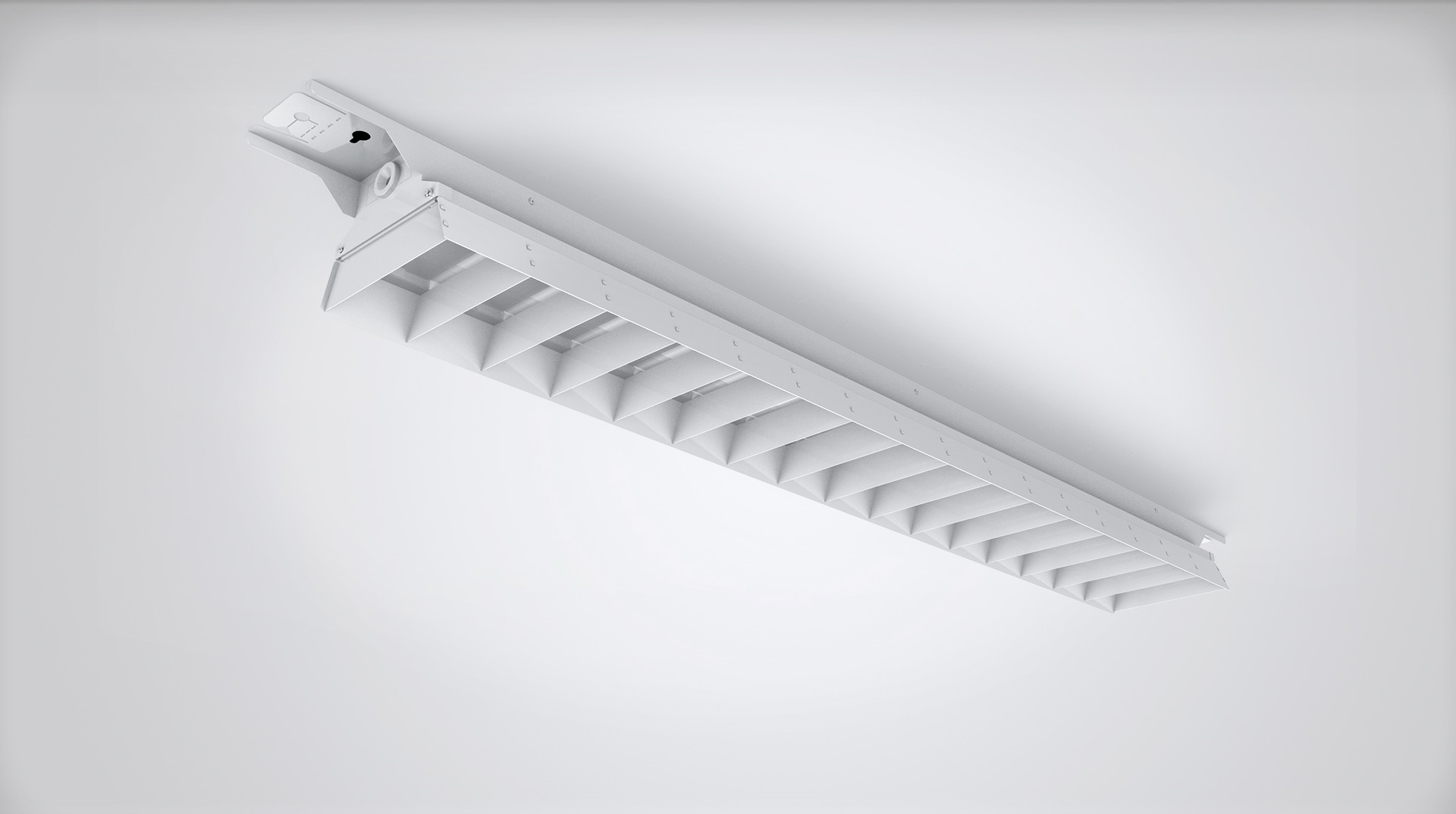

Louver

Louver

Metal material; used for low glare application

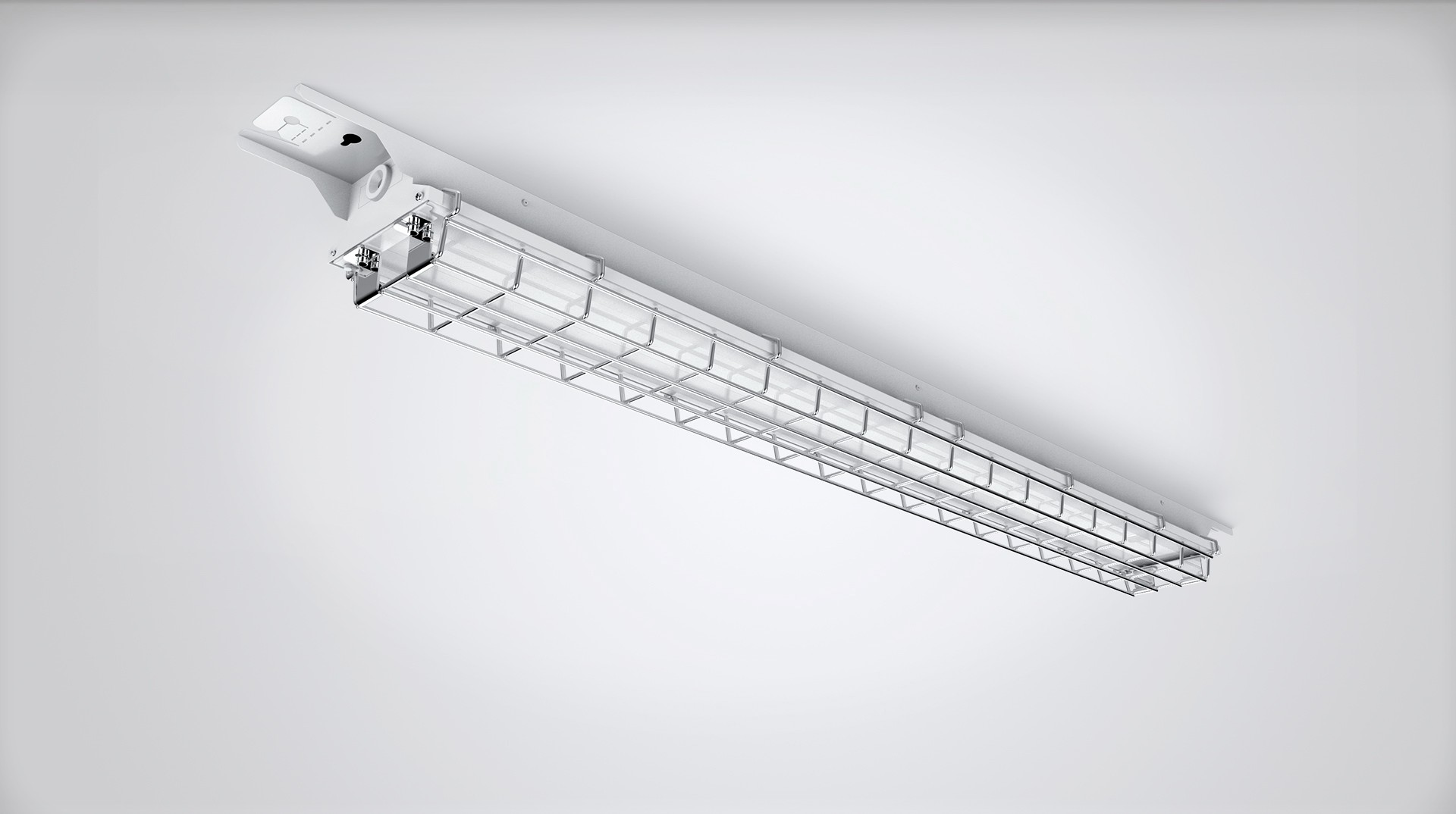

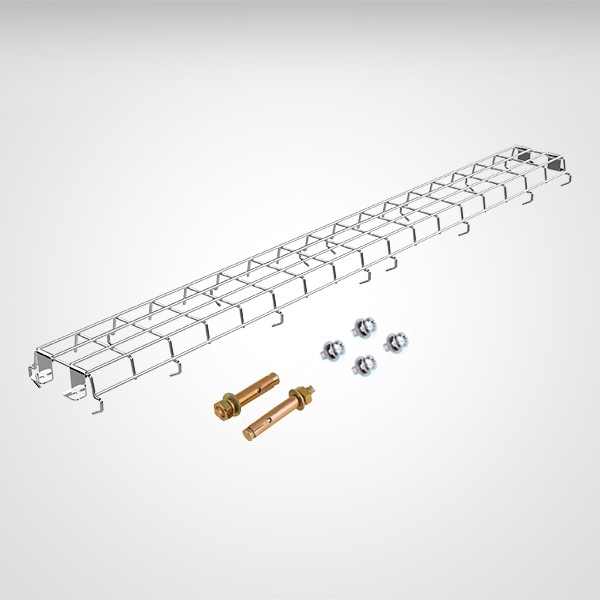

Grid

Grid

Metal material; used for ball-proof application

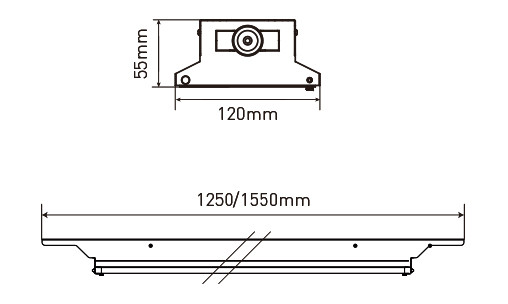

Structure Data

Input: AC220~240V 50/60Hz

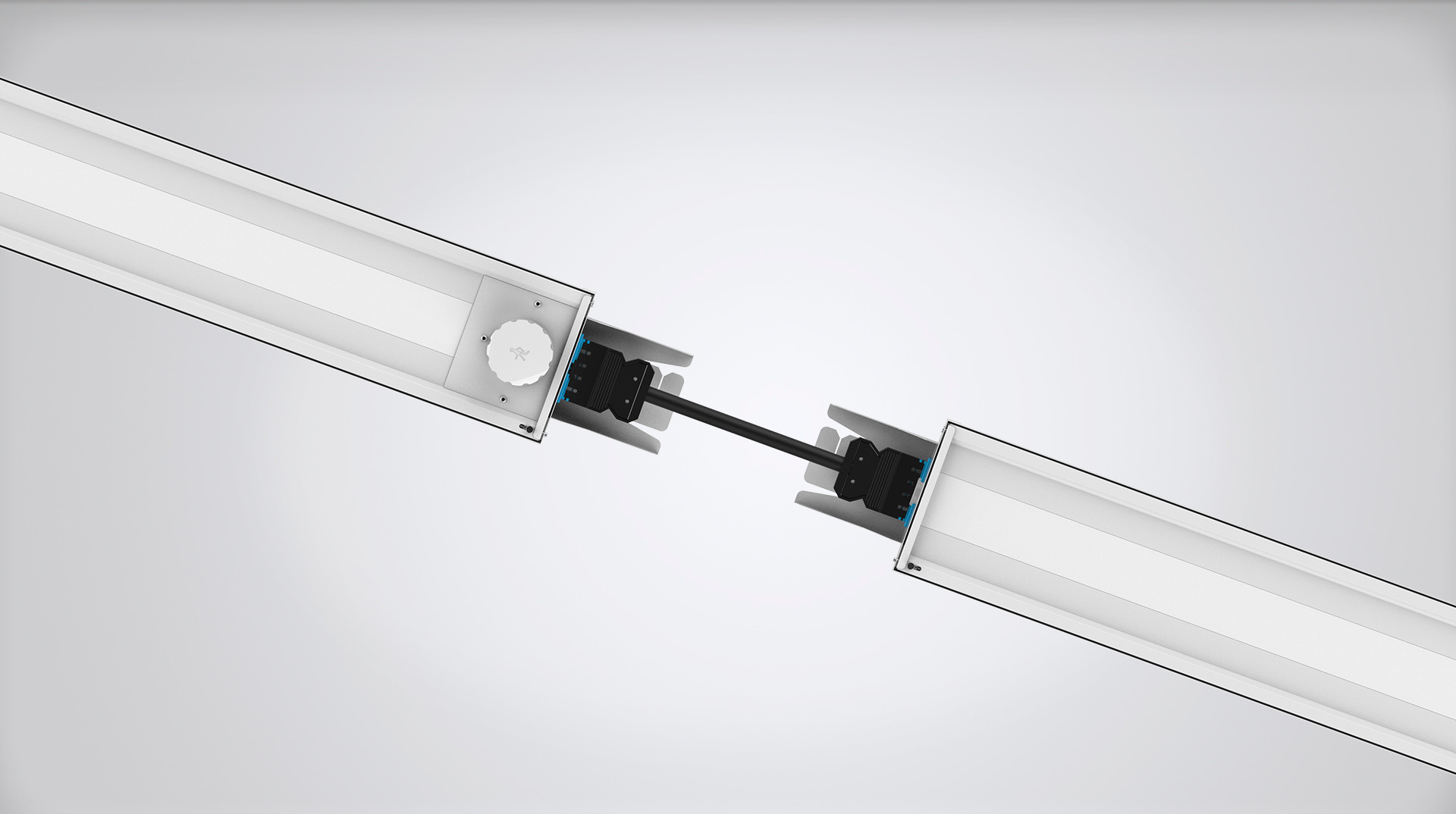

Wiring: 5 wires through | Wieland plug
Operation Temp: -20~40°C

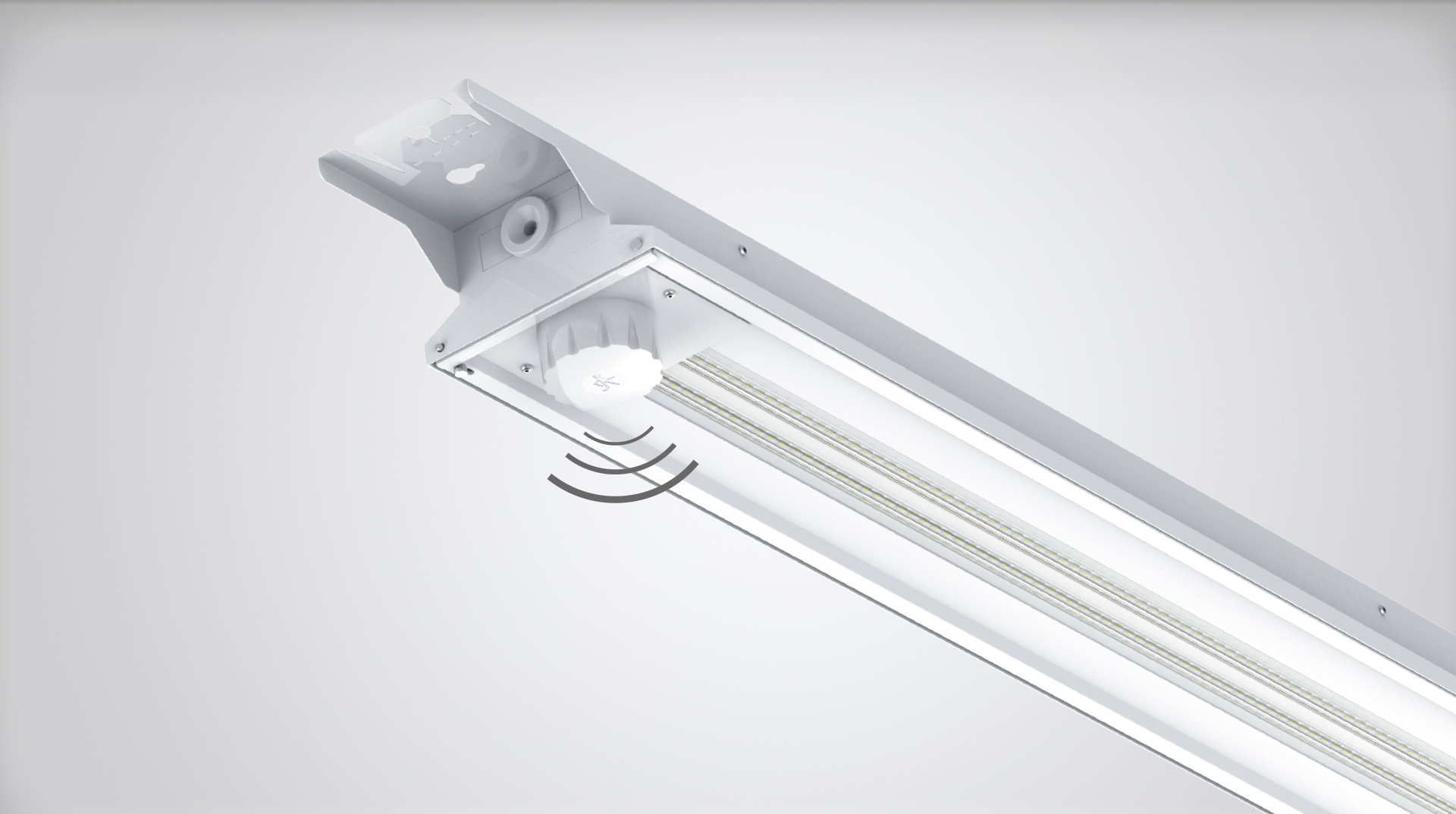

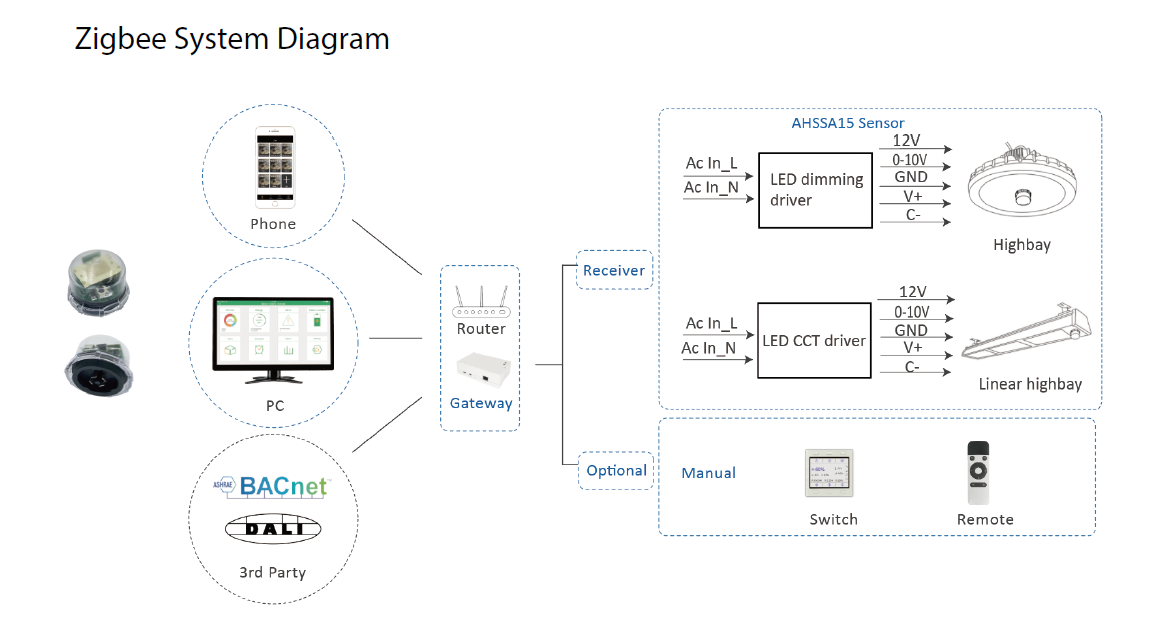

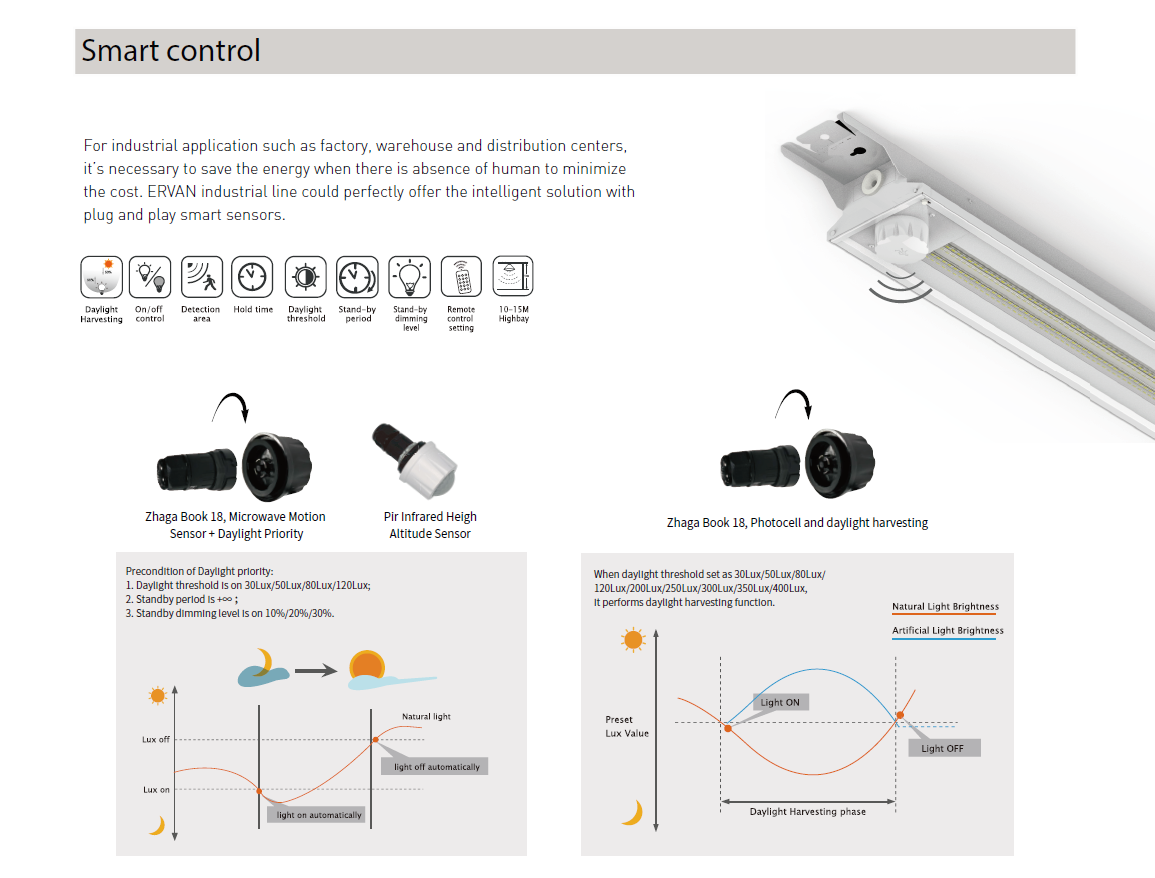

Function: 1~10V DIM | DALI push DIM | SENSOR | Emergency

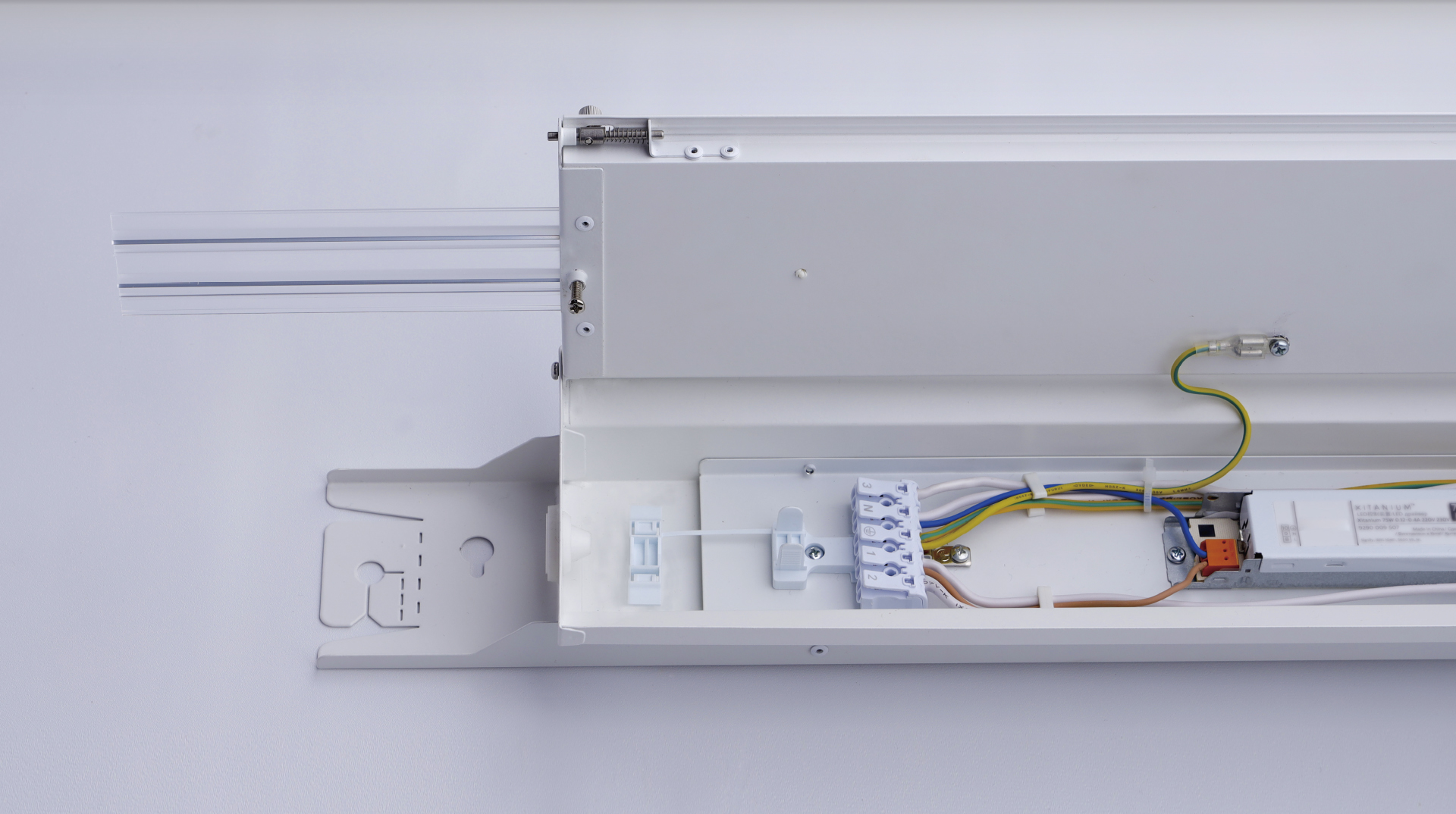

Design: LED module exchangeable | Driver exchangeable
Flicker: Flicker free
Material: PC+Aluminum+ White coating sheet metal

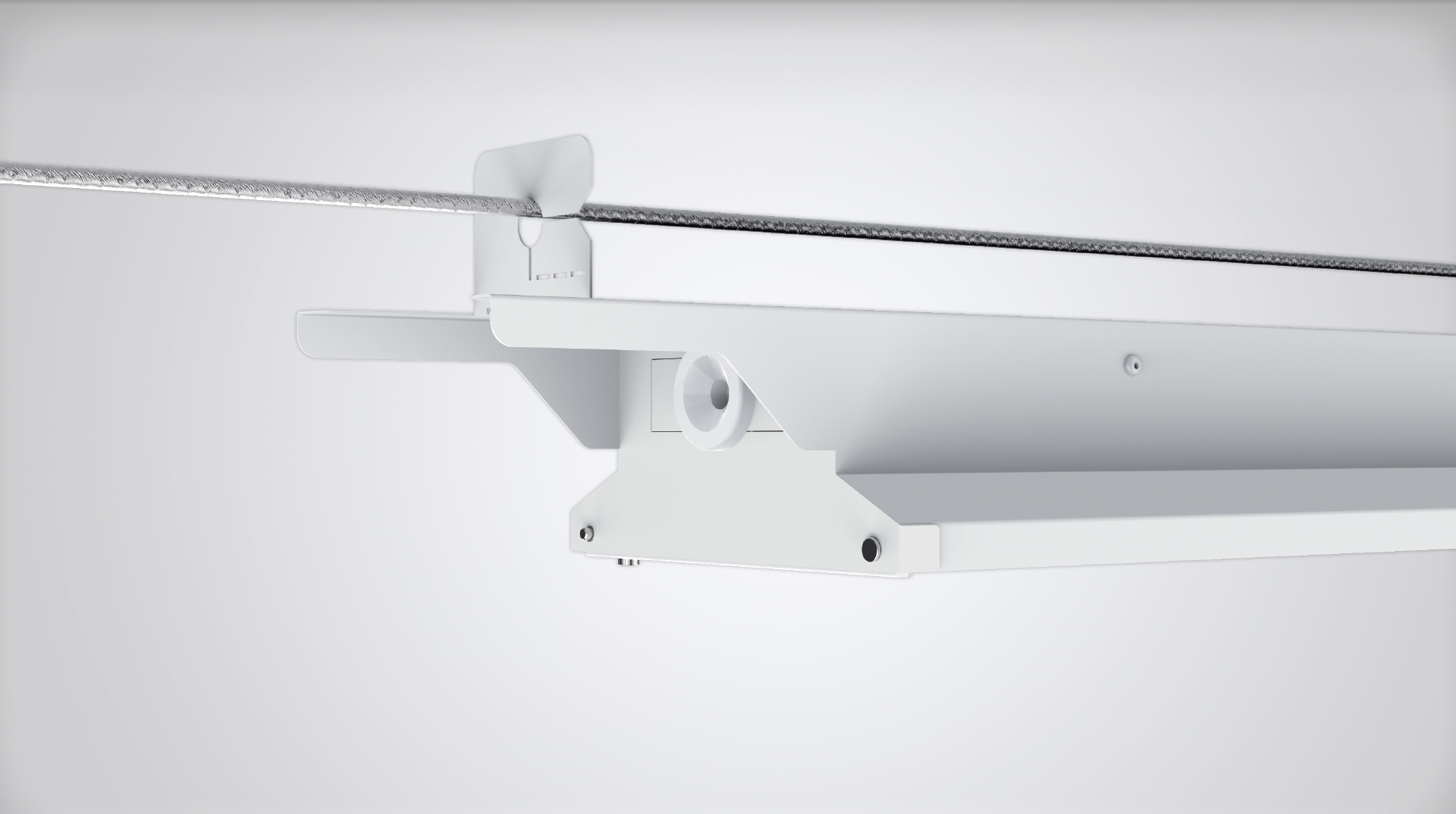

Installation: Surface mounted | Wire suspension | Horizontal wire hook
Protection: IP23 | IK08
Terminal: 5x2.5mm² push-in terminal



Download
Manual

Manual-Industrial Line Luminaire-L15 V1.pdf

Download
Integrating Sphere

L15- Integrating Sphere.rar

Download
IES Files

L15-IES.rar

Download
Specification

SPEC-L15A V15.pdf

Download
